Check Setting Of High Beam - AP82.10-P-8260-02D

Model 205, 253

Courtesy of MERCEDES-BENZ USA

Shown on ECE version headlamp in model 205

Courtesy of MERCEDES-BENZ USA

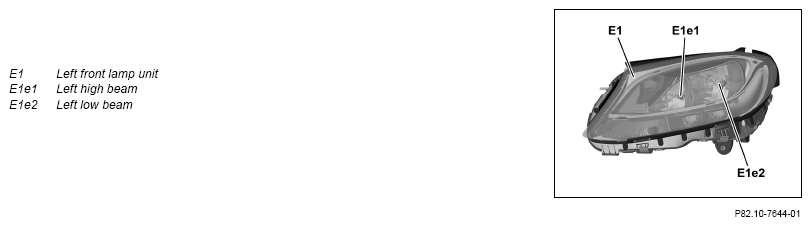

Halogen headlamp, shown on model 205

Courtesy of MERCEDES-BENZ USA

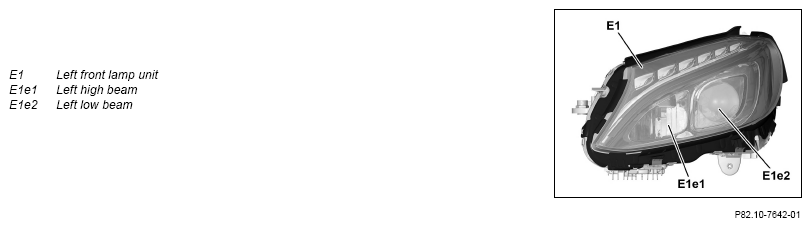

Static LED headlamp, shown on model 205

Courtesy of MERCEDES-BENZ USA

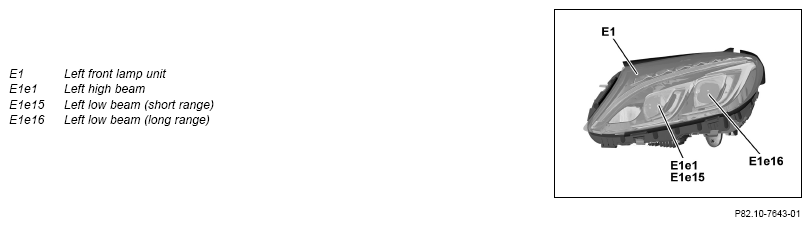

Dynamic LED headlamp, shown on model 205

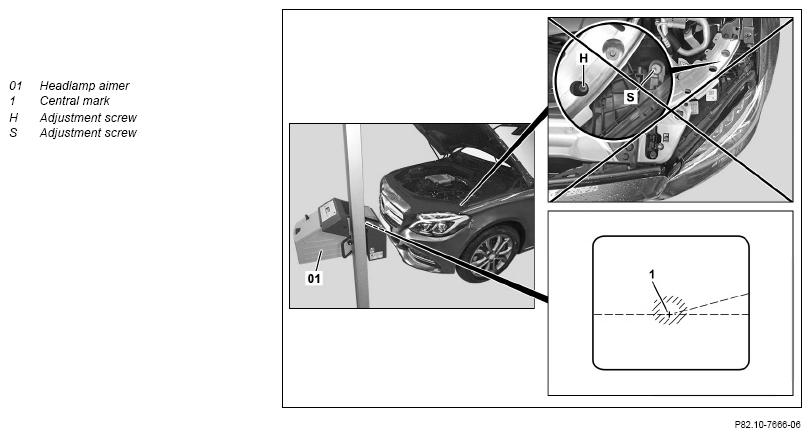

1. Align headlamp aimer (01) parallel to vehicle level with high beam at left (E1e1) or right
2. Check setting of high beam

   Corrections must not be made to the adjustment screws (H, S) on the headlamp.

   Otherwise, the previously-adjusted low beam will be misadjusted!

   The center of the light beam must be positioned on the central mark (1) in the headlamp aimer (01).

   If high beam alignment is not correct:

   ↓

   Rectify problem subject to separate repair order.
