Actuation Module, Led Exterior Lighting, Front, Component Description - GF82.10-P-2160RF
Model 205
up to model year 2019
with code 640 (High-performance LED)
Model 205
up to model year 2019
with code 641 (Dynamic LED headlamps, left-hand traffic)
Model 205
up to model year 2019
with code 642 (Dynamic LED headlamps, right-hand traffic)
Model 253 (except 253.99)
with code 640 (High-performance LED)
Model 253 (except 253.99)
with code 641 (Dynamic LED headlamps, left-hand traffic)
Model 253 (except 253.99)
with code 642 (Dynamic LED headlamps, right-hand traffic)

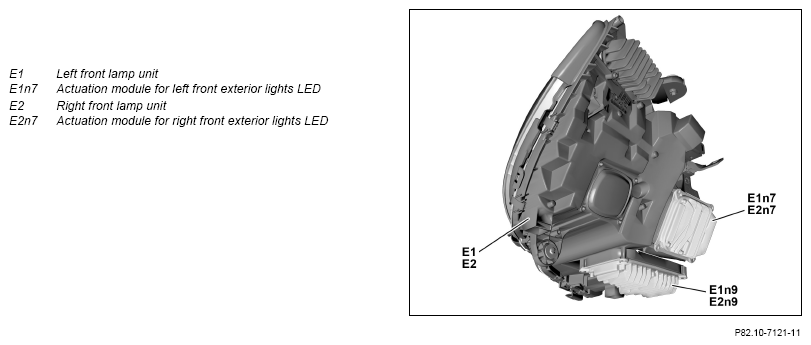

Shown on model 205
Location
One front actuation module, LED exterior lighting each is located on the rear of the left front lamp unit and the rear of the right front lamp unit.
Task
The front LED exterior lights actuation modules are responsible for the following tasks:
- Provision and monitoring of supply voltage and operating current of actuated LEDs
- Actuation of the LEDs in the corresponding front lamp unit to output the light functions:
- Short range low beam
- Long range low beam
- High beam
- Thermal management (temperature monitoring and fan control)
The front actuation modules, LED exterior lighting actuate the LEDs located in the front lamp unit to implement the individual light functions:
- Left high beam (E1e1)
- Right high beam (E2e1)
- Left low beam (short range) (E1e15)
- Right low beam (short range) (E2e15)
- Left low beam (long range) (E1e16)
- Right low beam (long range) (E2e16)
The front actuation modules, LED exterior lighting are powered by the front SAM control unit (N10/6) (circuit 30L).
The individual light functions are output after applying voltage at the respective input channel of the front LED exterior lights actuation module.
The left front LED exterior lights actuation module communicates via left headlamp LIN (LIN G1) with the left headlamp control unit (E1n9). The right front LED exterior lights actuation module communicates via right headlamp LIN (LIN G2) with the right headlamp control unit (E2n9).
Identified malfunctions of individual components are stored in a nonvolatile memory. The front LED exterior lights actuation modules can be diagnosed using the corresponding headlamp control unit.
The front actuation modules, LED exterior lighting are bolted to the front lamp unit housings. The front actuation modules, LED exterior lighting are connected to the vehicle-side wiring harness through the electrical connector on each front lamp unit.
Thermal management
The front lamp units have temperature sensors that are used to sense the heat development in the areas actuated by the LED. If the LED or the plastic housings for the front lamp units threaten to overheat as a consequence of excessively high outside temperatures or high actuation currents, the actuating currents of the LEDs are reduced, thereby lowering the heat development. The front actuation modules, LED exterior lighting evaluate the signals of three temperature sensors each.
The front actuation modules, LED exterior lighting also actuate the following components to additionally cool the LEDs or plastic housings of the front lamp units:
- Fan motor 2 for left front lamp unit (E1m5)
- Fan motor 2 for right front lamp unit (E2m5)
The fan motors are either actuated immediately or with a time delay.
The actuation depends on which light function is active.
The active ventilation by means of actuation of the fan motors is used simultaneously for de-icing the front lamp units at low outside temperatures.
| Exterior lights wiring diagram | Headlamp unit E1 | PE82.10-P-2000-97FBC | |
| Headlamp unit E2 | PE82.10-P-2000-97FBD |
