Remove/Install Taillamp - AR82.10-P-4905LW

Model 205.0/1

Model 213.0/1 up to model year 2021

Courtesy of MERCEDES-BENZ USA

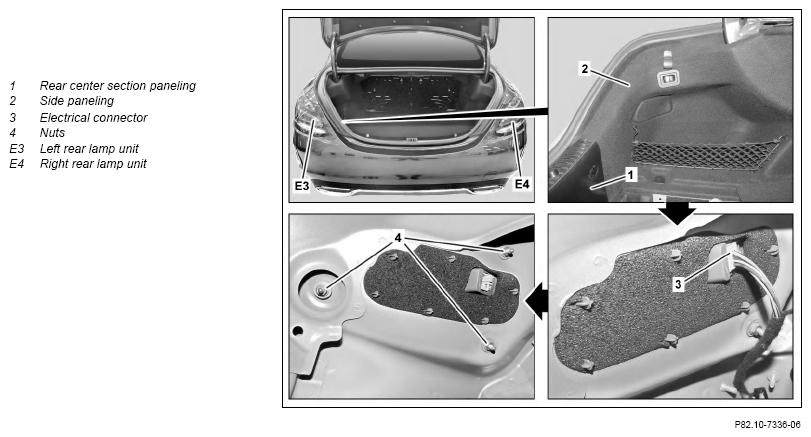

Shown on left rear lamp unit (E3) for model 205.0

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove rear-end center section cover (1).		AR68.30-P-4785LW
2.1	Release side trim (2) in area of left rear lamp unit (E3) or right rear lamp unit (E4) until nuts (4) are accessible.	Model 205.0/1 Model 213.0/1 up to model year 2021 except code 811 (High-End sound system)
		Model 205.0/1	AR68.30-P-4800LW
		Model 213.0/1 up to model year 2021 except code 811 (High-End sound system)	AR68.30-P-4800LWE
2.2	Remove left side trim (2).	Model 213.0/1 up to model year 2021 with code 811 (High-End sound system) When removing left rear lamp unit (E3).	AR68.30-P-4800LWE
3	Remove subwoofer.	Model 213.0/1 up to model year 2021 with code 811 (High-End sound system) When removing left rear lamp unit (E3).	AR82.62-P-7841LWE
4	Release and disconnect electrical connector (3) from left rear lamp unit (E3) or right rear lamp unit (E4).
5	Remove nuts (4).
6	Remove left rear lamp unit (E3) or right rear lamp unit (E4).	Carefully remove left rear lamp unit (E3) or right rear lamp unit (E4). Otherwise the mount at the fender may be damaged.
7	Install in the reverse order.
