Change Changeable Cover For Illuminated Door Sill Molding - AZ82.20-P-0009LW
Model 205.0/2

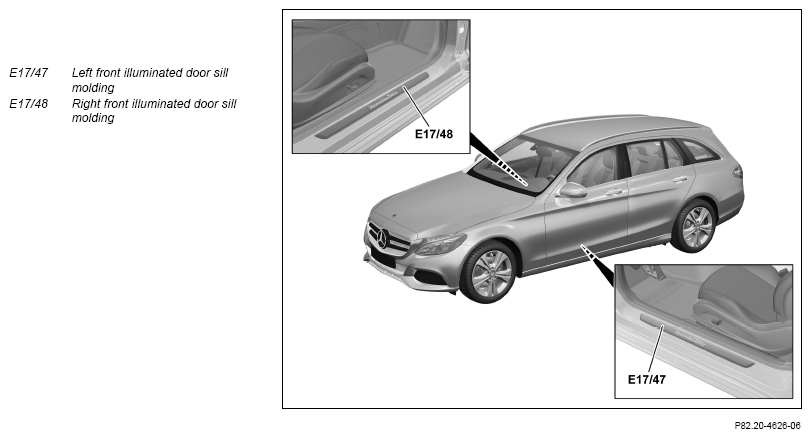

Shown on Model 205.2
| Remove | |||

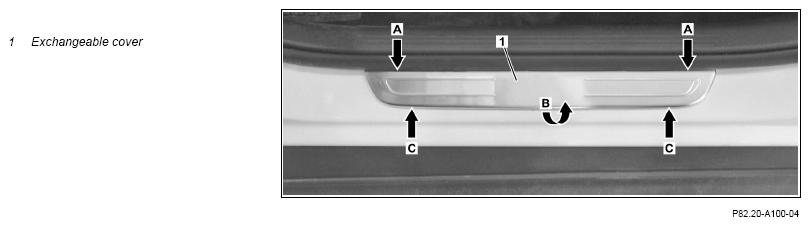

| 1 | Carefully slide exchangeable cover (1) downwards (arrow A), pull downward from door sill (arrow B), then slide upwards (arrow C) and remove. | Carefully remove exchangeable cover (1). Otherwise, the paint at the entrance may be damaged. |
|
Long wedge |
Fig 1 | ||
| Install | |||

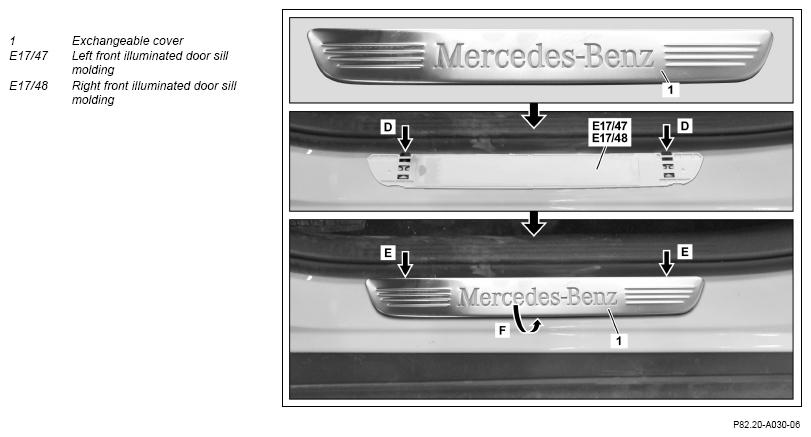

| 2 | Hook retaining lugs of exchangeable cover (1) onto springs (arrow D) of front left illuminated door sill molding (E17/47) or right front illuminated door sill molding (/E17/48) and push towards the bottom against the spring force (arrow E), while doing so carefully press towards the door sill (arrow F) until the exchangeable cover (1) latches into place. | Carefully install exchangeable cover (1). Otherwise, the paint at the entrance may be damaged. Ensure that it is seated and arrest properly. |
|
| Cleaner | *BR00.45-Z-1025-04A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG98 (refer to XENTRY Portal Parts Information) | Transmission cover parts kit | 1 |
