Check Low Temperature Circuit For Leaktightness - AR09.41-P-1011MFC
Engine 260 in model 118, 177, 247 with code M016 (Uprated engine)
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove | |||
| 1 | Remove cap from the coolant expansion reservoir (1). | ||
| Check | |||
| 2 | Check coolant level and antifreeze content of the coolant and correct. | AR09.41-P-6834MFC | |
| *BF20.00-P-1001-02AB | |||

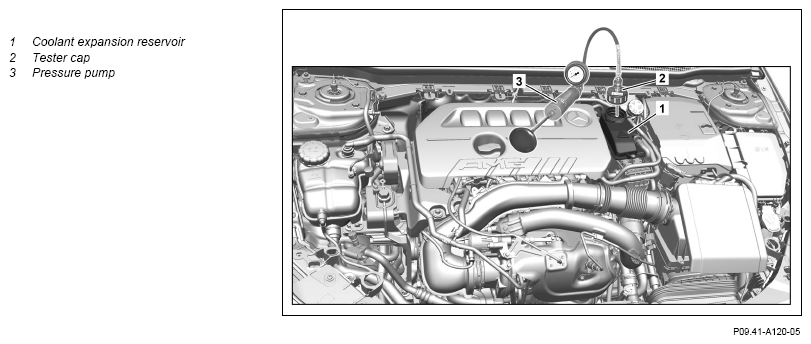

| 3 | Attach tester cap (2) to the coolant expansion reservoir (1). | Fig 1 | |
| 4 | Connect pressure pump (3) to tester cap (2). | Fig 2 | |
| 5 | Apply test pressure to the low-temperature circuit engine cooling system for 2 min. | Do not exceed the specified test pressure. Damage will occur otherwise to the engine cooling system. |
|
| Test pressure for pressure-testing the engine cooling system | *BE20.30-P-1005-01A | ||
| 6 | Check condition of all coolant carrying component parts and connections and check for leak tightness. | In the event of pressure loss. If there are problems, ↓ Replace corresponding components. |
|
| 7 | Relieve test pressure in the coolant circuit via the pressure release button on the pressure pump (3). | Fig 2 | |
| 8 | Remove the pressure pump (3) from the tester cap (2). | Fig 2 | |
| 9 | Remove tester cap (2) from coolant expansion reservoir (1). | Fig 1 | |
| 10 | Check coolant level and antifreeze content of the coolant and correct. | AR09.41-P-6834MFC | |
| *BF20.00-P-1001-02AB | |||
| Install | |||
| 11 | Attach cap to the coolant expansion reservoir (1). |
RADIATOR OR EXPANSION RESERVOIR CAP
| Number | Designation | 2-stage latch cover | ||
|---|---|---|---|---|
| BE20.30-P-1005-01A | Test pressure for pressure-testing the engine cooling system | Overpressure | bar | 1, 4 |
ENGINE COOLING SYSTEM
| Number | Designation | Engine 260 in model 118 | Engine 260 in model 177 with code M016 (Uprated engine) | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02AB | Engine cooling system | Workshop replacement quantity | Liter | ≈ 8, 9 | ≈ 8, 2 | |
| Antifreeze/water | Down to -37 °C | % | 50/50 | 50/50 | ||
| -38 °C and below | % | 55/45 | 55/45 | |||
| Operating Fluids specifications | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Operating Fluids specifications | BB00.40-P-0325-00A | BB00.40-P-0325-00A | ||||
| Operating Fluids specifications | BB00.40-P-0326-00A | BB00.40-P-0326-00A | ||||
ENGINE COOLING SYSTEM
| Number | Designation | Engine 260 in model 247 with code M016 (Uprated engine) | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02AB | Engine cooling system | Workshop replacement quantity | Liter | ≈ 8, 2 | |
| Antifreeze/water | Down to -37 °C | % | 50/50 | ||
| -38 °C and below | % | 55/45 | |||
| Fluids specifications | BB00.40-P-0310-01A | ||||
| Fluids specifications | BB00.40-P-0325-00A | ||||
| Fluids specifications | BB00.40-P-0326-00A | ||||
