Rear End Damage Seam Sealing Following Repair - Ar97.10-P-4000-02MFA
| Topical note | Notes on sprayable joint sealant | AH97.10-P-0002-01A | |
| Notes on seam seal | AH97.10-P-0002-02A |
Model 118, 177, 247
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
The superordinate service document as well as the safety information in the service document must be observed.
Processing difference in the seam seal

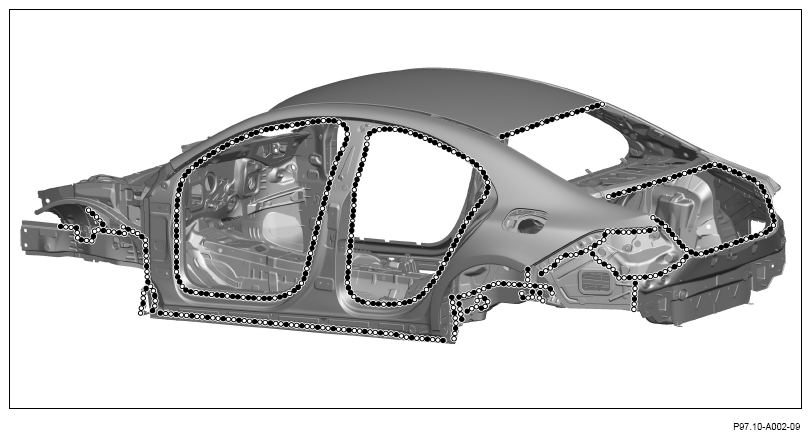

Area on rear end assembly, on side wall, and on rear wheel arch, shown on model 177.0

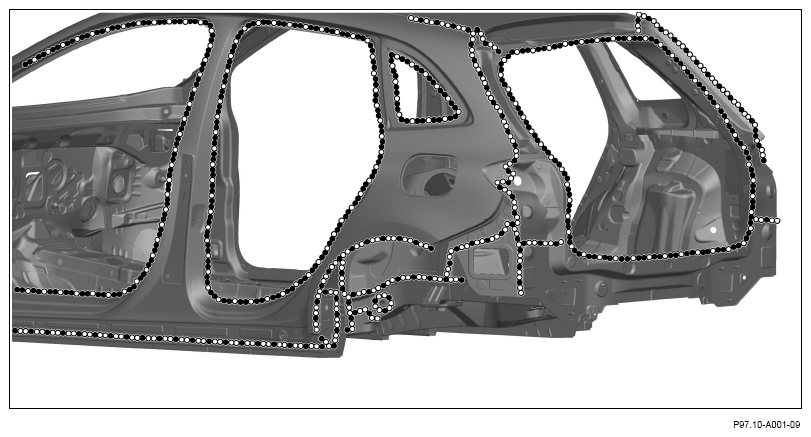

Area on rear end assembly, on side wall, and on rear wheel arch, shown on model 177.1

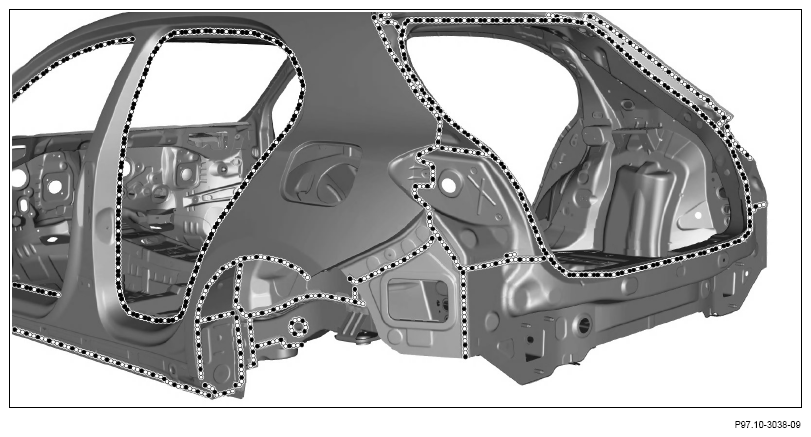

Area on rear end assembly, on side wall, and on rear wheel arch, shown on model 247.0

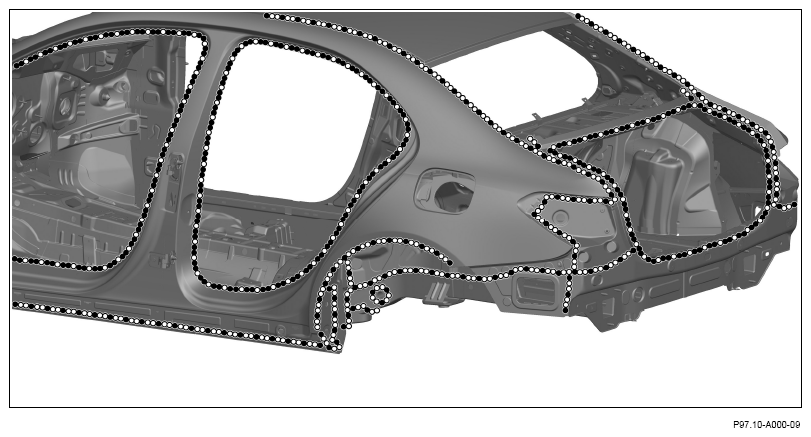

Area at rear end assembly, side wall and rear wheel arch, shown on model 118.3

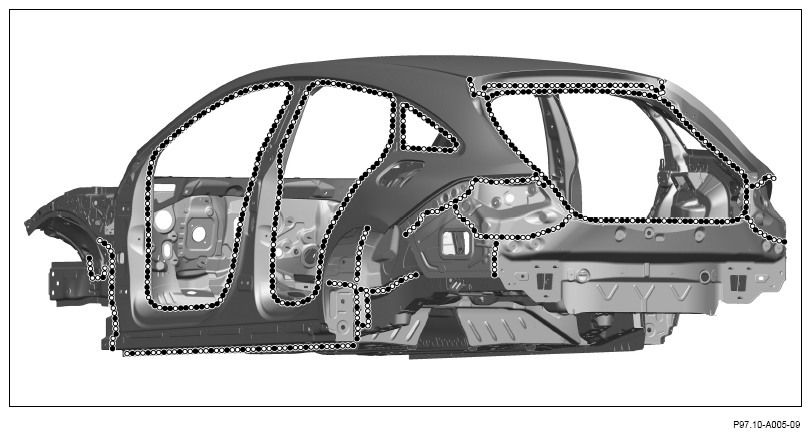

Area at rear end assembly, side wall and rear wheel arch, shown on model 118.6
- Seal connecting flanges, welded joints and riveted joints of the repaired area with sealant or seam seal.
Observe standard sealing.
Seal only primed body parts.
Seal accessible spot weld flanges on both sides.
Ensure that the threads of the weld nuts and threaded pins as well as the drain openings and contact surfaces of the axle attachments, windows or detachable parts are kept free of seam sealant material.
- Insert grommets and feed-through grommets with sealant.

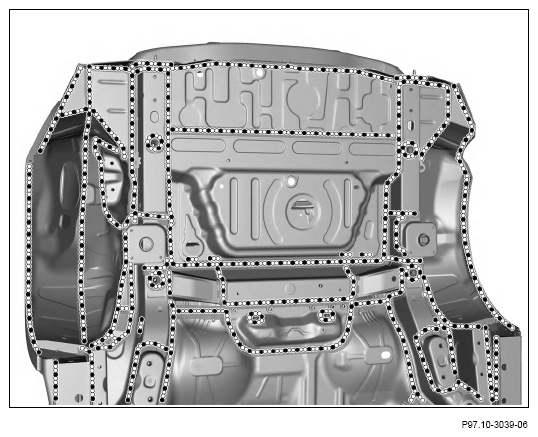

Area on bottom rear end assembly and on rear bottom wheel arch, shown on model 177.0
