Separate Front Roof Frame - Ar65.20-P-1006-02MFA
Model 118.3/6
Model 177.0/1/9
Model 247.0/6/7
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The next steps are shown on the left side of the vehicle of model 177.0; perform in the same way on the right side of the vehicle. Additional information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.

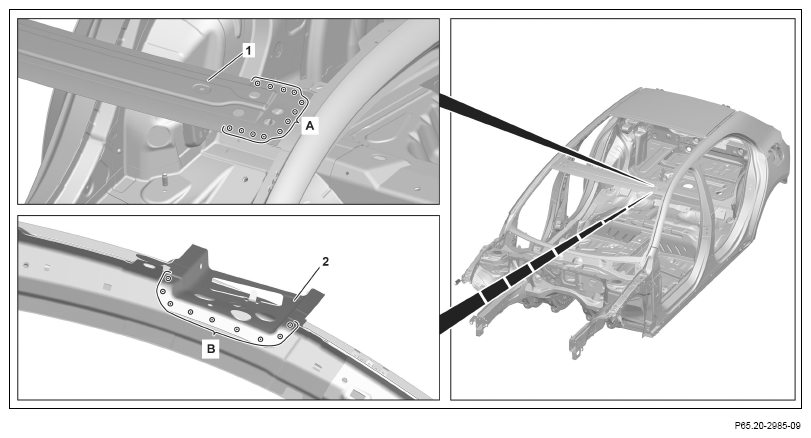

- Expose spot welds on front roof frame (1) and cut off (area A).
- Remove front roof frame (1).
- Expose spot welds on mounting support (2) and cut off (area B).
- Remove mounting support (2).

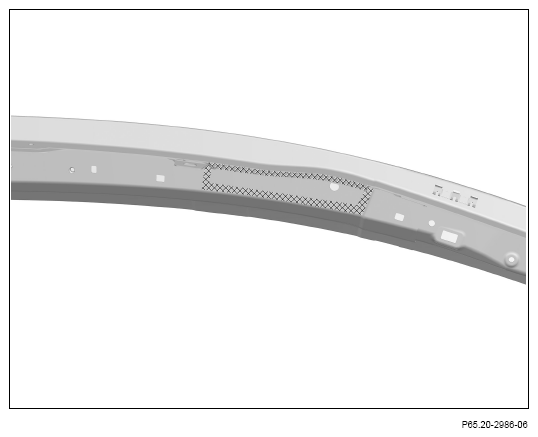

- Grind mating surfaces down to bare metal in cross-hatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Remove grinding dust and drill chips.
- Apply zinc dust paint to insides of spot weld flanges onto connecting flanges that are no longer accessible after installing side roof paneling.
