Separate Center Roof Paneling - Ar65.10-P-1000-02MFV

Model 118.3

except code 413 (Automatic panoramic sliding sunroof)

Model 177.1/9

except code 413 (Automatic panoramic sliding sunroof)

Fig 1: Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

Further information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Repair shown on model 177.1, perform work on model 177.9 in the same way.

1. Insert set of spacer blocks at undamaged side between center roof paneling(1) and side roof paneling and adjust to dimension.

   During installation, center roof paneling(1) can be fitted with adjusted set of spacer blocks.

2. Mark positions of set of spacer blocks at vehicle and note down dimensions.
3. Determine dimensions from outer edge of center roof paneling (1) to outer edge of front and rear roof rack.

   Courtesy of MERCEDES-BENZ USA

4. Mark positions of measuring points on vehicle and note dimensions.

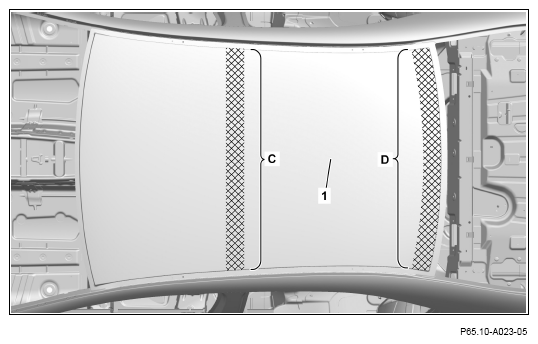

5. Expose spot welds on center roof paneling (1) and cut out (areas A).
6. Separate bondings of center roof paneling(1) in cross-hatched area using cutting wire (area C).
7. Heat center roof paneling(1) in cross-hatched area (area D).
8. Remove center roof paneling (1).

   Courtesy of MERCEDES-BENZ USA

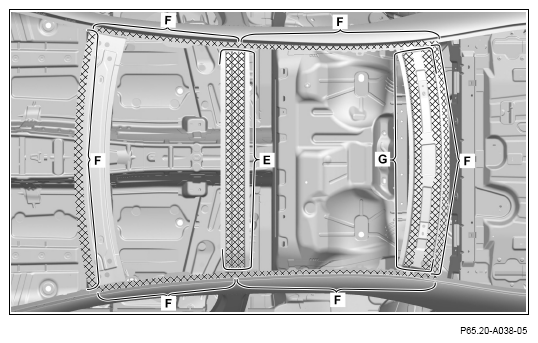

9. Remove remaining adhesive in area of roof frame. (areas E and G).

   Observe pretreatment of bonding surfaces.

10. Touch up bare spots in area of roof frame with primer stick (areas E and G).
11. Grind mating surfaces down to bare metal in cross-hatched areas (areas F).

    Sand down spot weld flanges to bare metal on both sides.

12. Remove grinding dust and drill chips.
13. Apply zinc dust paint to insides of spot weld flanges. (areas A).

Courtesy of MERCEDES-BENZ USA
