Remove Rear Roof Frame - Ar65.20-P-1008-01MFV

Model 118.3

Model 177.1/9

The superordinate service document as well as the safety information in the service document must be observed.

The next steps are shown on model 177.1.

Courtesy of MERCEDES-BENZ USA

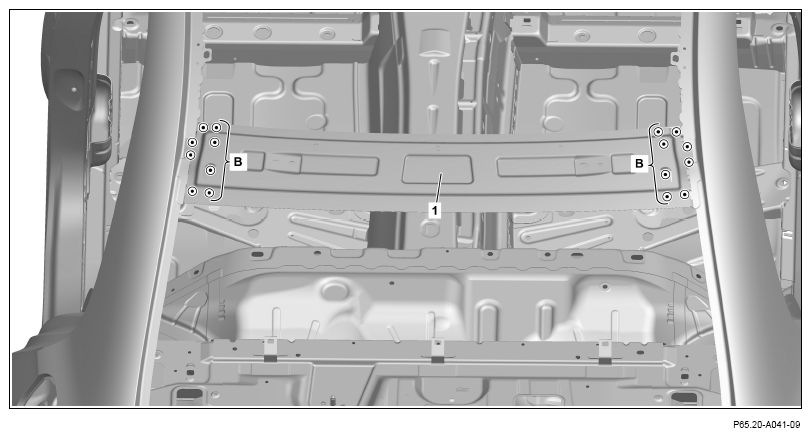

1. Expose spot welds on the rear roof frame (1) and cut out (area B).
2. Remove rear roof frame (1).

   Courtesy of MERCEDES-BENZ USA

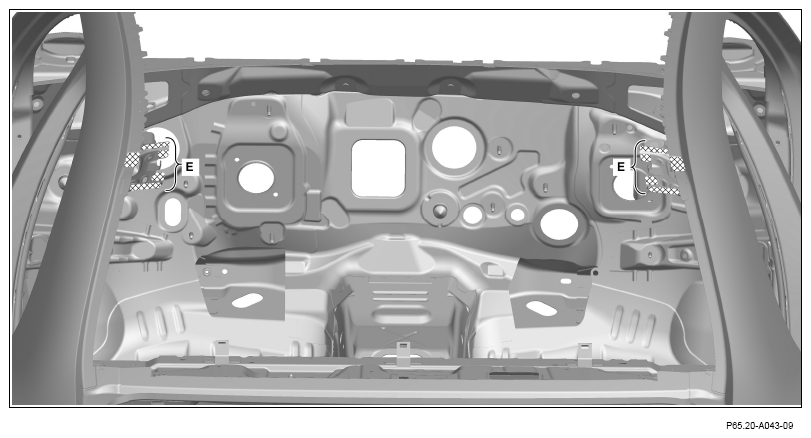

3. Grind mating surfaces down to bare metal in the cross-hatched areas (area E).

   Sand down spot weld flanges to bare metal on both sides.

4. Remove grinding dust and drill chips.
5. Apply zinc dust paint to insides of spot weld flanges. (Area E).
