Preparing Rear Part Of Roof Paneling For Installation - Ar65.10-P-5760-02MFV
Model 118.3
with code 413 (Automatic panoramic sliding sunroof)
Model 177.1/9
with code 413 (Automatic panoramic sliding sunroof)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
Further information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.
The next steps are shown on model 177.1. The work must be performed in the same way on model 177.9.

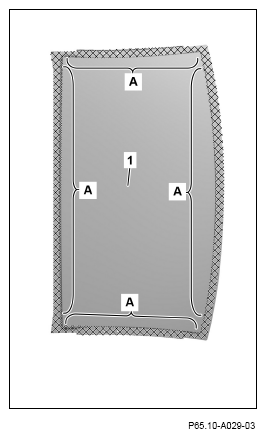

- Grind mating surfaces on the rear roof paneling (1) in the cross-hatched areas down to bare metal (areas A).
- Remove grinding dust.
- Apply zinc dust paint to insides of spot weld flanges. (areas A).
Do not coat bonding surfaces with zinc dust paint.
Otherwise adhesion problems can occur.
Observe pretreatment of bonding surfaces.
