Prepare Rear Roof Frame For Installation - Ar65.20-P-1008-02MFV
Model 118.3
Model 177.1/9
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The superordinate service document as well as the safety information in the service document must be observed.
The next steps are shown on model 177.1.

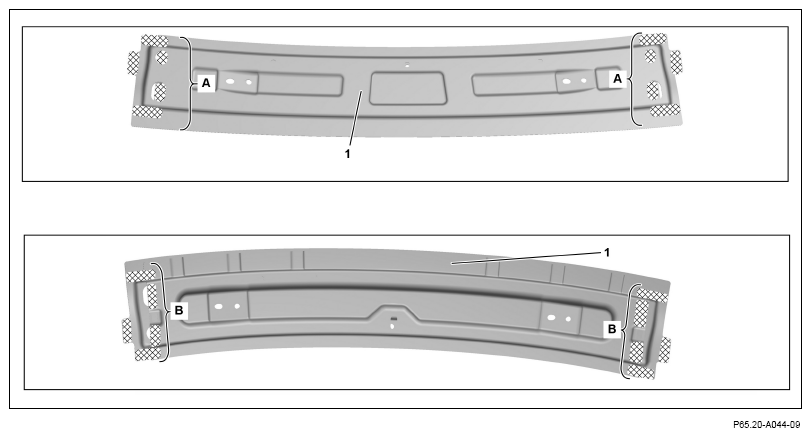

- Grind mating surfaces on the rear roof frame (1) down to bare metal in the cross-hatched areas (area A and B).
Sand down spot weld flanges to bare metal on both sides.
- Remove grinding dust.
- Apply zinc dust paint to insides of spot weld flanges. (Area B).
