Prepare Center Roof Paneling For Installation - Ar65.10-P-1000-03MFV
Model 118.3
except code 413 (Automatic panoramic sliding sunroof)
Model 177.1/9
except code 413 (Automatic panoramic sliding sunroof)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
Superordinate service document as well as the safety information in the service document must be observed.
The next steps are shown on model 177.1. The work must be performed similarly on model 177.9.

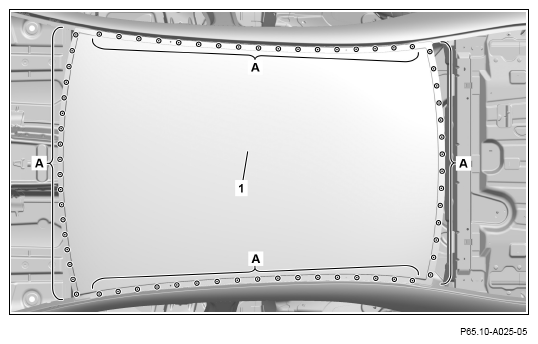

- Grind mating surfaces of the center roof paneling (1) in the cross-hatched areas down to bare metal on both sides (areas A).
- Remove grinding dust.
- Apply zinc dust paint to insides of spot weld flanges (areas A).
