Prepare Center Roof Paneling For Installation - Ar65.10-P-1000-03MFA
Model 118.6
except code 413 (Automatic panoramic sliding sunroof)
Model 177.0
except code 413 (Automatic panoramic sliding sunroof)
Model 247.0/6/7
except code 413 (Automatic panoramic sliding sunroof)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The superordinate service document as well as the safety information in the service document must be observed.
The following operation steps are shown on model 177.0.

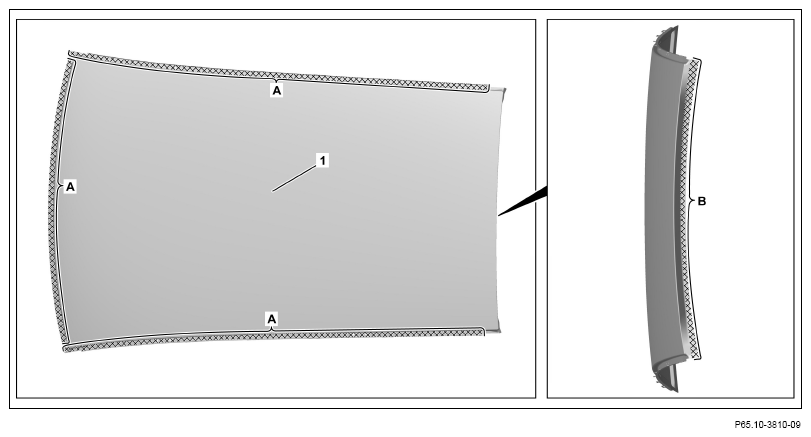

- Grind mating surfaces of the center roof paneling (1) in the cross-hatched areas down to bare metal on both sides (areas A and B).
- Drill holes for plug welds in center roof paneling (1) with Ø 6.7 mm (area C).
Transfer holes from old part.
- Deburr holes for plug welds on the center roof paneling (1) on both sides.
- Remove grinding dust and drill chips.
- Coat insides of spot weld flanges with zinc dust paint.
