Installing Rear Section Of Roof Paneling - Ar65.10-P-5760-03MFV

Model 118.3

with code 413 (Automatic panoramic sliding sunroof)

Model 177.1/9

with code 413 (Automatic panoramic sliding sunroof)

Fig 1: Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

Further information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Repair shown on model 177.1. The work must be performed in the same way on model 177.9.

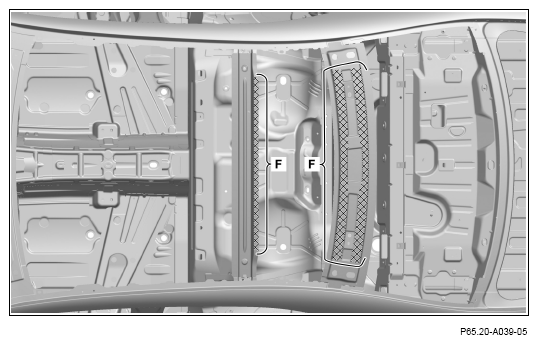

1. Anti-flutter adhesive in the cross-hatched areas must be applied (areas F).

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

2. Install center roof paneling(1), fit with set of spacer blocks, and fix in place.

   When removing, observe detected dimensions and positions of set of spacer blocks.

3. Remove set of spacer blocks.

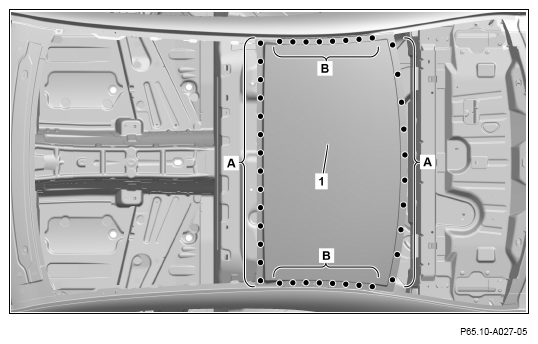

4. Center roof paneling (1) (areas A and B).

Courtesy of MERCEDES-BENZ USA
