Installing Rear Section Of Roof Paneling - Ar65.10-P-5760-03MFA

Model 118.6

with code 413 (Automatic panoramic sliding sunroof)

Model 177.0

with code 413 (Automatic panoramic sliding sunroof)

Model 247.0/6/7

with code 413 (Automatic panoramic sliding sunroof)

Fig 1: Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Repair shown on 177.0

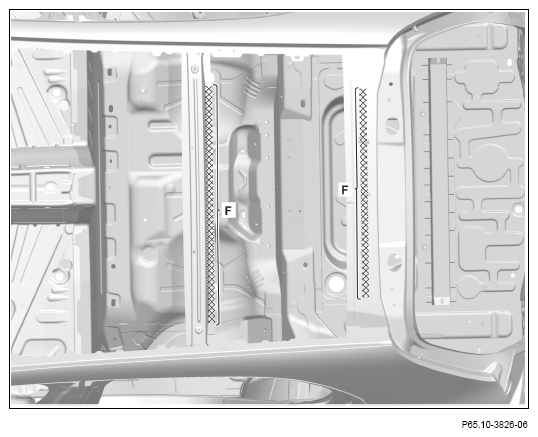

1. Apply lining adhesive in cross-hatched areas (areas F).

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

2. Install center roof paneling (1), fit with set of spacer blocks, and fix in place.

   When removing, observe detected dimensions and positions of set of spacer blocks.

3. Remove set of spacer blocks.

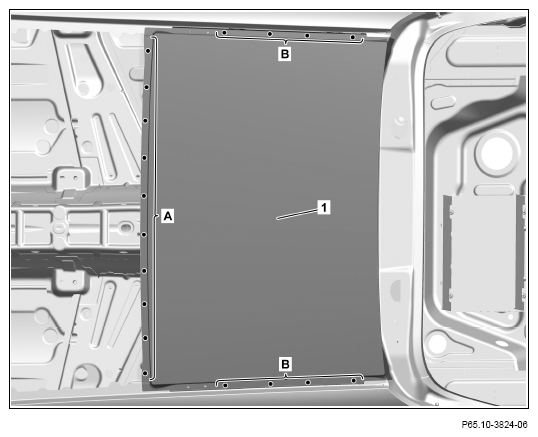

4. Center roof paneling (1) (areas A and B).

   Courtesy of MERCEDES-BENZ USA

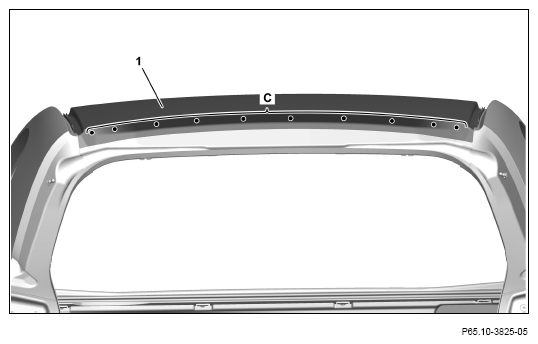

5. Center roof paneling (1) (area C).
