Install Rear Roof Frame - Ar65.20-P-1008-03MFV
Model 118.3
Model 177.1/9
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The superordinate service document as well as the safety information in the service document must be observed.

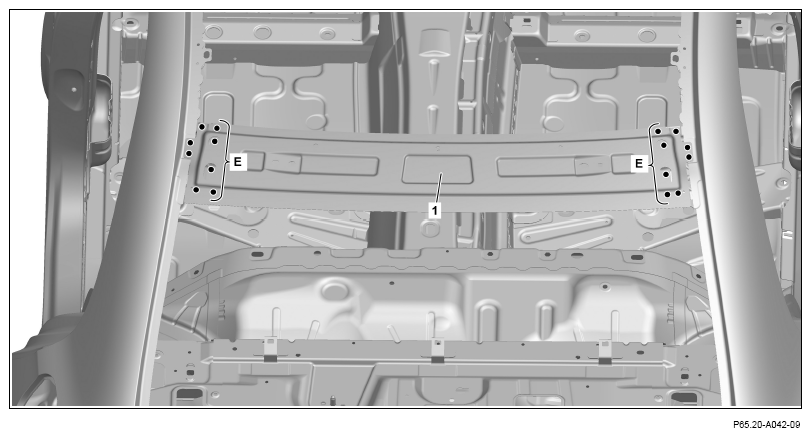

The next steps are shown on model 177.1.
- Install rear roof frame (1) and fix in place.
- Rear roof frame (1)
(area E).
- Clean weld joints that are no longer accessible after installing the roof paneling and coat with zinc dust paint.
