Install Front Roof Frame - Ar65.20-P-1006-05MFA
Model 118.3/6
Model 177.0/1/9
Model 247.0/6/7
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1055-13A | Countersunk-head blind rivet Z3 6.4x17.0 (clamping area 4.5 mm to 6.5 mm, draw-off strength min. 15.5 kN) | A 000 991 86 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
Further information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.
Repair shown on 177.0

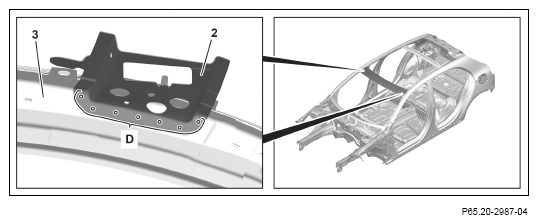

- Install mounting support (2), fit, and fix in place.
- Transfer rivet holes of the mounting support (2) to the roof frame (3).
- Remove mounting support (2).
- Drill rivet holes on roof frame (3) with Ø 6.7 mm (area D).
- Remove drill chips.
- Coat insides of riveted joints with zinc dust paint..
- Install front roof frame (1), fit and fix in place.

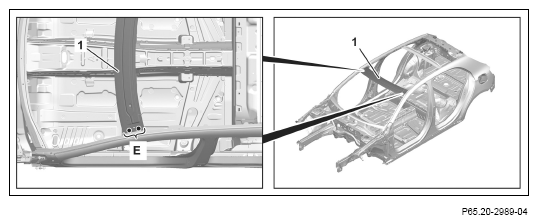

- Front roof frame (1)
(area E).

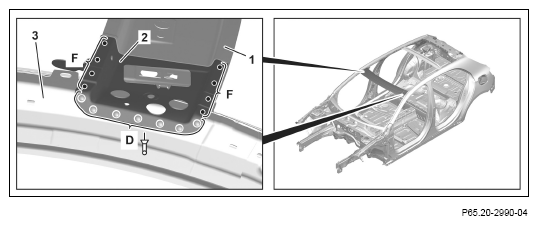

- Install mounting support (2), fit and fix in place.
- Rivet mounting support (2) with a Ø 6.4 x 17.0 rivet (area D).
- Mounting support (2) and front roof frame (1)
