Install Center Roof Paneling - Ar65.10-P-1000-07MFV

Model 118.3

except code 413 (Automatic panoramic sliding sunroof)

Model 177.1/9

except code 413 (Automatic panoramic sliding sunroof)

Fig 1: Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

The superordinate service document as well as the safety information in the service document must be observed.

The next steps are shown on model 177.1. The work must be performed similarly on model 177.9.

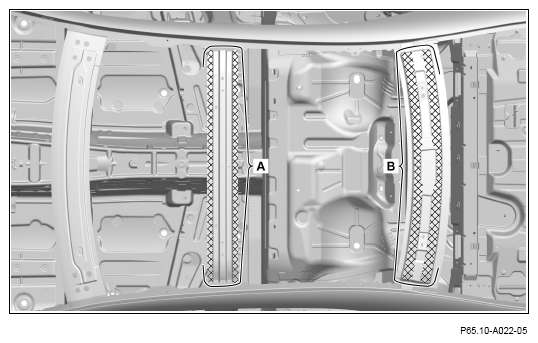

1. Anti-flutter adhesive in the cross-hatched areas (areas A and B).

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

2. Install center roof paneling(1), fit with set of spacer blocks, and fix in place.

   When removing, observe detected dimensions and positions of set of spacer blocks.

3. Remove set of spacer blocks.

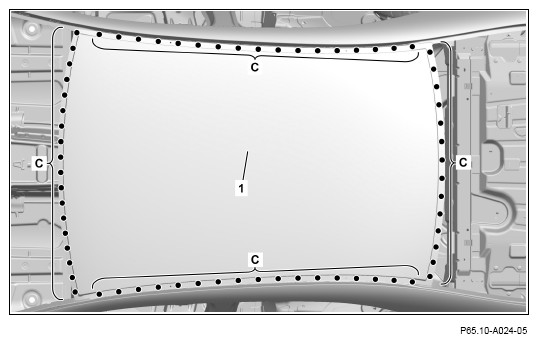

4. Center roof paneling (1) (areas C).
