Install Center Roof Paneling - Ar65.10-P-1000-07MFA

Model 118.6

except code 413 (Automatic panoramic sliding sunroof)

Model 177.0

except code 413 (Automatic panoramic sliding sunroof)

Model 247.0/6/7

except code 413 (Automatic panoramic sliding sunroof)

Fig 1: Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

The higher-level service document as well as the safety information in the service document must be observed.

Repair shown on model 177.0

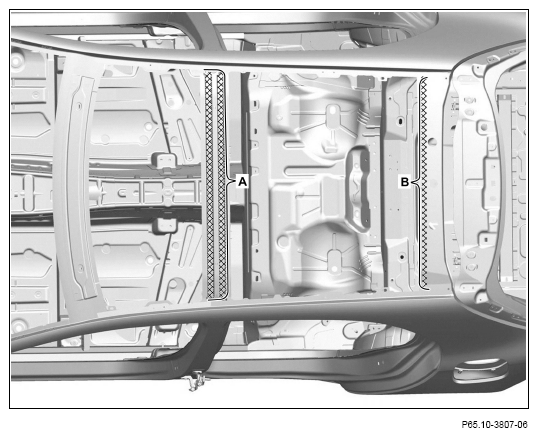

1. Apply lining adhesive in the cross-hatched areas (areas A and B).

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

2. Install center roof paneling (1), fit with set of spacer blocks, and fix in place.

   When removing, observe specified dimensions and positions of set of spacer blocks.

3. Remove set of spacer blocks.

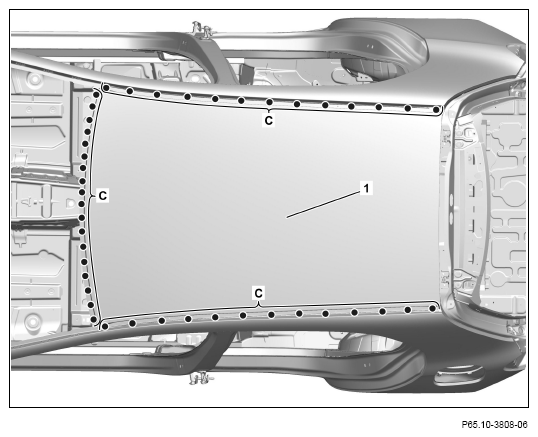

4. Center roof paneling (1) (areas C).

   Courtesy of MERCEDES-BENZ USA

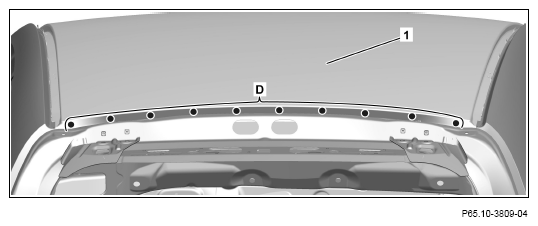

5. Center roof paneling (1) (area D).

Courtesy of MERCEDES-BENZ USA
