Remove/Install Panoramic Roof Roller Sun Blind Drive Unit - AR77.21-P-0493MFA
Model 118, 177
with code 413 (Automatic panoramic sliding sunroof)
Shown on model 177.0 with code 413 (panoramic sliding sunroof)

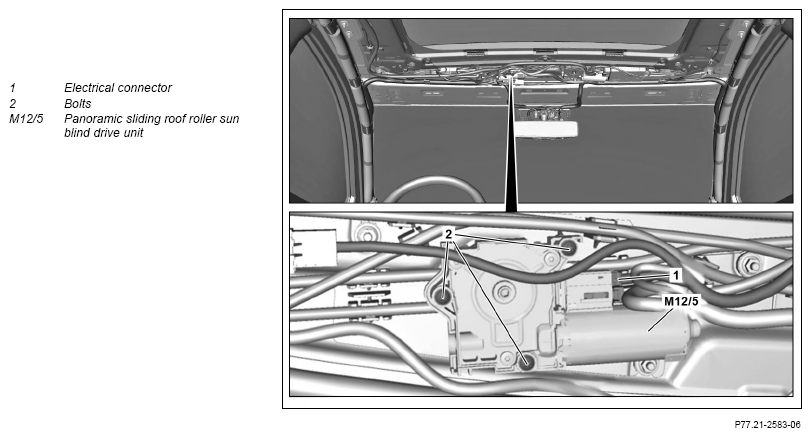

Fig 1: Panoramic Roof Roller Sun Blind Drive Unit Components Location - Model 177 With Code 413 (Shown On Model 177.0)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Release roof lining in front area until panoramic sliding sunroof roller sunblind drive unit (M12/5) can be accessed. | Model 177.0 with code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300MFA |
| Model 118.3, 177.1/9 with code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300MFV | ||
| Model 118.6 with code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300MFD | ||
| 2 | Release and disconnect electrical connector (1) at panoramic sliding sunroof roller sunblind drive unit (M12/5). | ||
| 3 | Unscrew screws (2) and remove panoramic sliding sunroof roller sunblind drive unit (M12/5). | ||
| 4 | Install in the reverse order. | ||
| Normalizing | |||
| 5 | Normalize panoramic sliding sunroof using vehicle diagnosis system and perform teach-in run for automatic reversing function. | ||
| AD00.00-P-2000-06MFA |
