Cut Out Panoramic Sliding Roof Frame - AR77.21-P-0801-01MFA

Model 118, 177

with code 413 (Automatic panoramic sliding sunroof)

	Risk of injury  due to snapping or warming up of cutting wire and due to splinters when cutting out glued panoramic roofs	Wear cut-proof gloves and safety glasses.	AS77.21-Z-0002-01A
Topical note	Notes on removal/installation of bonded elements of panoramic roof		AH77.21-P-0001-01A

Fig 1: Identifying Set Of Shields (222 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

1. Cover adjacent paint surfaces with the shield set.

   Cover adjacent paint surfaces with the shield set during cutting.

   Otherwise paint can be damage by cutting wire.

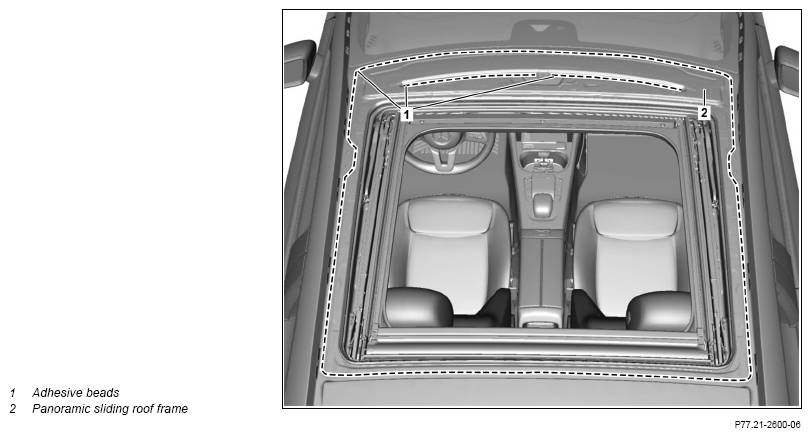

2. Cut through adhesive beads (1) all around panoramic sliding sunroof frame (2).

   Helper required.

3. Remove panoramic sliding sunroof frame (2).

   Helper required.
