Install Side Roof Paneling And Weld In - Ar65.10-P-1020-03MFV

Model 118.3

Model 177.1/9

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1009-01JA	Front door to rear door	Dimension "I"	mm	4 (± 0, 5)	4 (± 0, 5)
BE60.00-P-1009-01JA	Front door to rear door	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1010-01JA	Front door cover to rear door cover (B-pillar)	Dimension "J"	mm	4 (± 1)	4 (± 1)
BE60.00-P-1010-01JA	Front door cover to rear door cover (B-pillar)	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 118.3	Model 118.6
BE60.00-P-1010-01NA	Front door to rear door	Dimension "H"	mm	4 (± 0, 5)	4 (± 0, 5)
BE60.00-P-1010-01NA	Front door to rear door	For picture, see		-	-

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1015-01JA	Liftgate/trunk lid to side wall	Dimension "O"	mm	4, 5 (± 1)	3 (+1/-0, 5)
BE60.00-P-1015-01JA	Liftgate/trunk lid to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 118.3	Model 118.6
BE60.00-P-1015-01NA	Liftgate/trunk lid to side wall	Dimension "M"	mm	3, 5 (± 1)	3, 5 (± 1)
BE60.00-P-1015-01NA	Liftgate/trunk lid to side wall	For picture, see		-	-

Fig 1: Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Set Of Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	White sealing compound, 310 ml, DBL 6069.20	A 001 989 63 20
BR00.45-Z-1057-07A	Basic body filler	A 012 989 29 71

The following service document steps are shown on the left side of the vehicle. In case of damage, these steps must be similarly performed on the right side of the vehicle.

The superordinate service document as well as the safety information in the service document must be observed.

Repair is shown on model 177.1.

Courtesy of MERCEDES-BENZ USA

1.1 Model 118.3
with code 413 (Automatic panoramic sliding sunroof)

Model 177.1/9

with code 413 (Automatic panoramic sliding sunroof)

Install side roof paneling (1) and center roof paneling and fit with spacers and feeler gauge.
1.2 Model 118.3
with code 413 (Automatic panoramic sliding sunroof)

Model 177.1/9

with code 413 (Automatic panoramic sliding sunroof)

Install side roof paneling(1) and rear roof paneling and fit with spacer blocks and feeler gauge.
2.1 Model 118.3
with code 413 (Automatic panoramic sliding sunroof)

Model 177.1/9

with code 413 (Automatic panoramic sliding sunroof)

Remove side roof paneling(1) and center roof paneling.
2.2 Model 118.3
with code 413 (Automatic panoramic sliding sunroof)

Model 177.1/9

with code 413 (Automatic panoramic sliding sunroof)

Remove side roof paneling(1) and rear roof paneling.

Courtesy of MERCEDES-BENZ USA

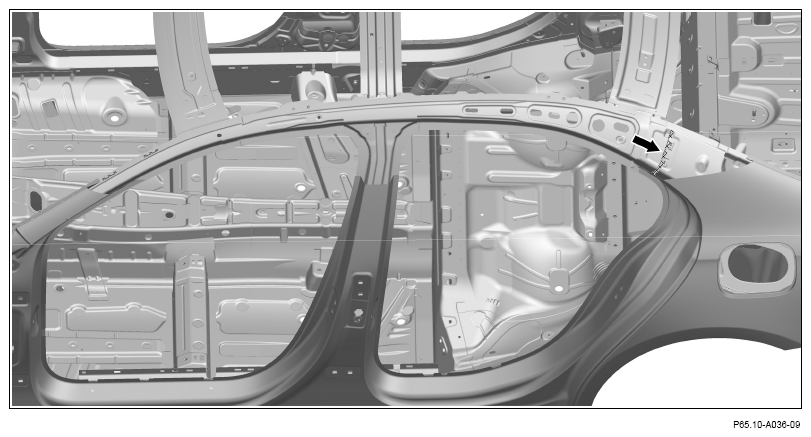

Sealant shall be applied to foam part (arrow).

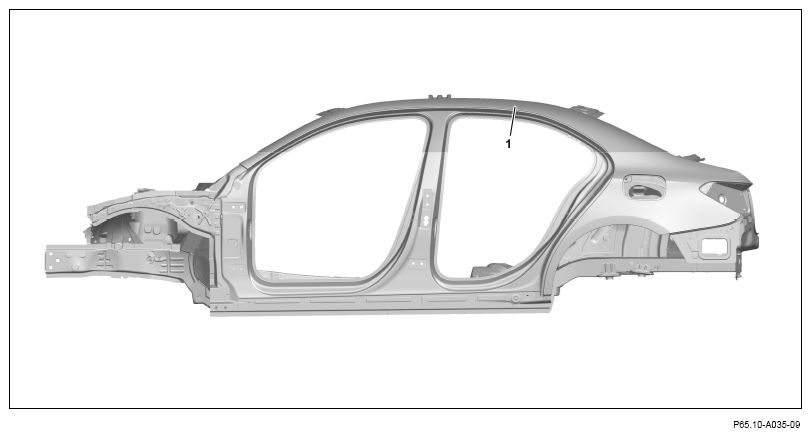

Install side roof paneling (1) and fix in place.
Remove spacer blocks.

Courtesy of MERCEDES-BENZ USA

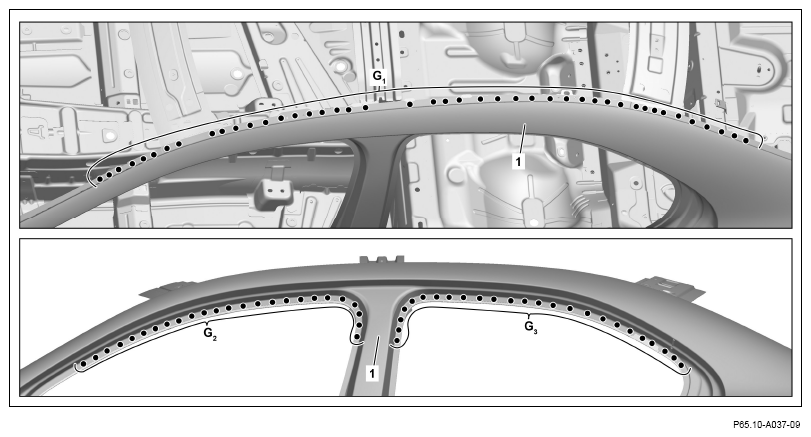

Side roof paneling (1) (area G ₁ , G₂ , and G₃ ).

Courtesy of MERCEDES-BENZ USA

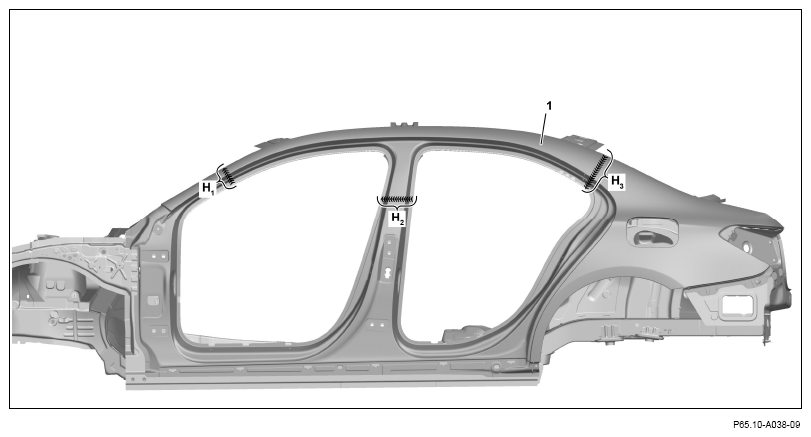

Side roof paneling (1) (area H₁ , H₂ and H₃ ).
Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.
Surface grind inert gas welds on the side roof paneling (1) (area H₁ , H₂ and H₃ ).
Clean welds on side roof paneling (1).
Tin surfaces on the side roof paneling (1) with a body solder or spackle with basic body filler and grind off (area H₁ , H₂ and H ₃ ).
Remove solder residues or grinding dust.
