Remove/Install Radial Shaft Sealing Rings Of Axle Shafts - AR27.40-P-0211MFC
Transmission 724.0 in model 118, 177, 247

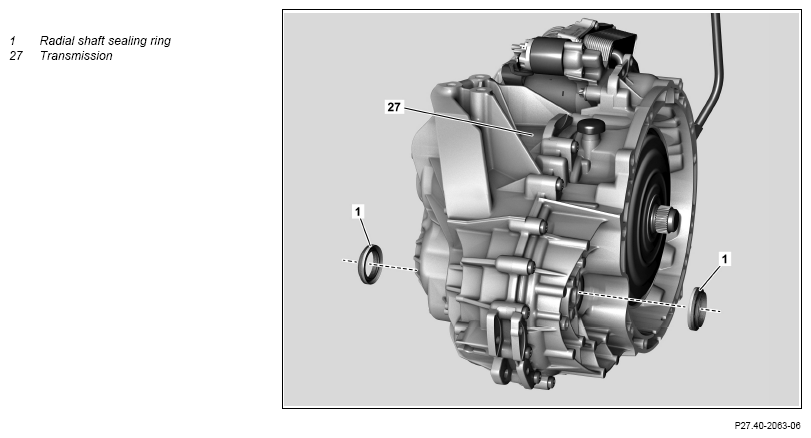

Fig 1: Radial Shaft Sealing Rings Of Axle Shafts Components Location - Transmission 724.0 In Model 177
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1.1 | Remove left front axle shaft. | If radial shaft sealing ring on left front axle shaft is removed. | AR33.30-P-0620MFA |
| 1.2 | Remove the catalytic converter. | If radial shaft sealing ring on right front axle shaft is removed. Transmission 724.0 in model 118, 177, 247 with engine 260 |
AR49.20-P-0100MFC |
| 2 | Remove bolts (2) and remove heat shield (3). | If radial shaft sealing ring on right front axle shaft is removed. | |
| 3 | Use suitable tool to pry off radial shaft sealing ring (1) from transmission (27). | ||
| Automatic transmission fluid (ATF) (specification 236.21) | Do not damage seat surface of radial shaft sealing ring (1). Otherwise, leaks can occur on the transmission (27). |
BB00.40-P-0236-21A | |

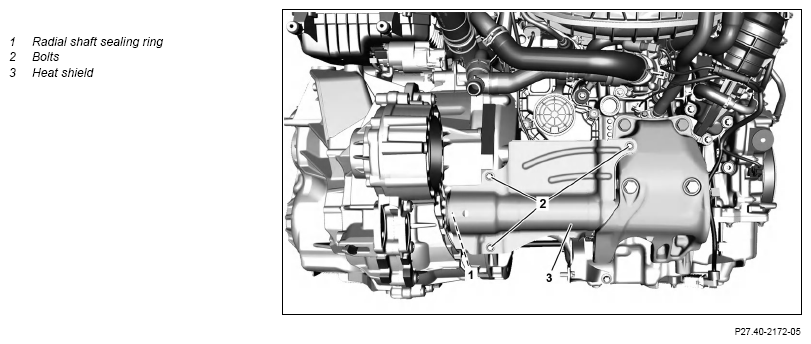

| Fig 2 | |||
| Check | |||
| 4 | Check sitting surface of radial shaft sealing ring (1). | The sitting surface on the radial shaft sealing ring (1) at left or right may not exhibit any damage. Otherwise, leaks can occur on the transmission (27). |
|
| 5 | Install in the reverse order. | ||
| Check | |||
| 6 | Check transmission oil level, correct, if necessary. | AR27.00-P-0104MFC | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| 7 | Perform engine test run, check transmission (27) for proper operation and leak tightness while doing so. |
