Wiring Diagram Of Rear Axle Differential Control Unit - PE35.30-P-2101-97IBA
Model 177

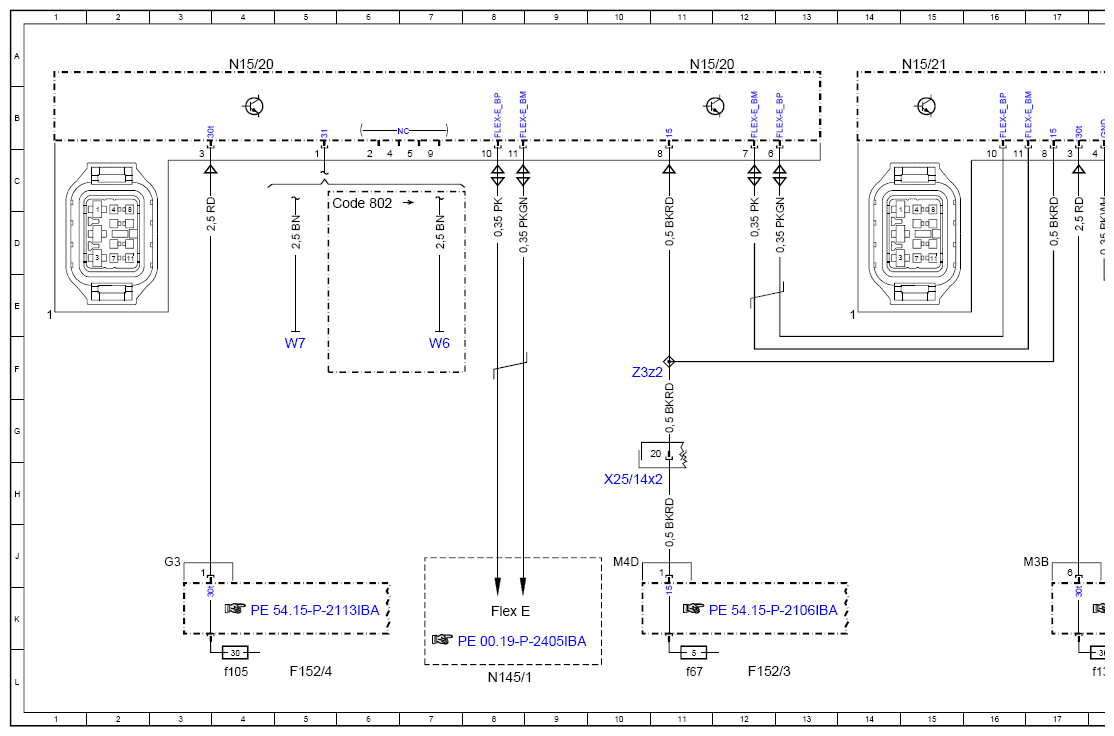

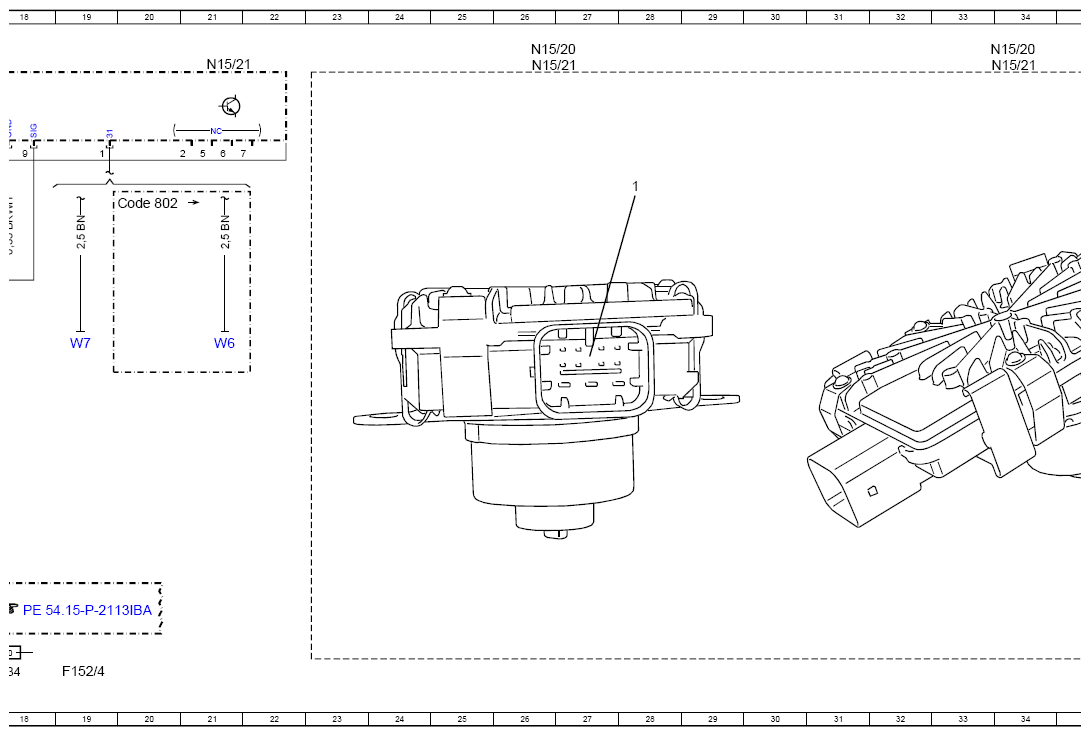

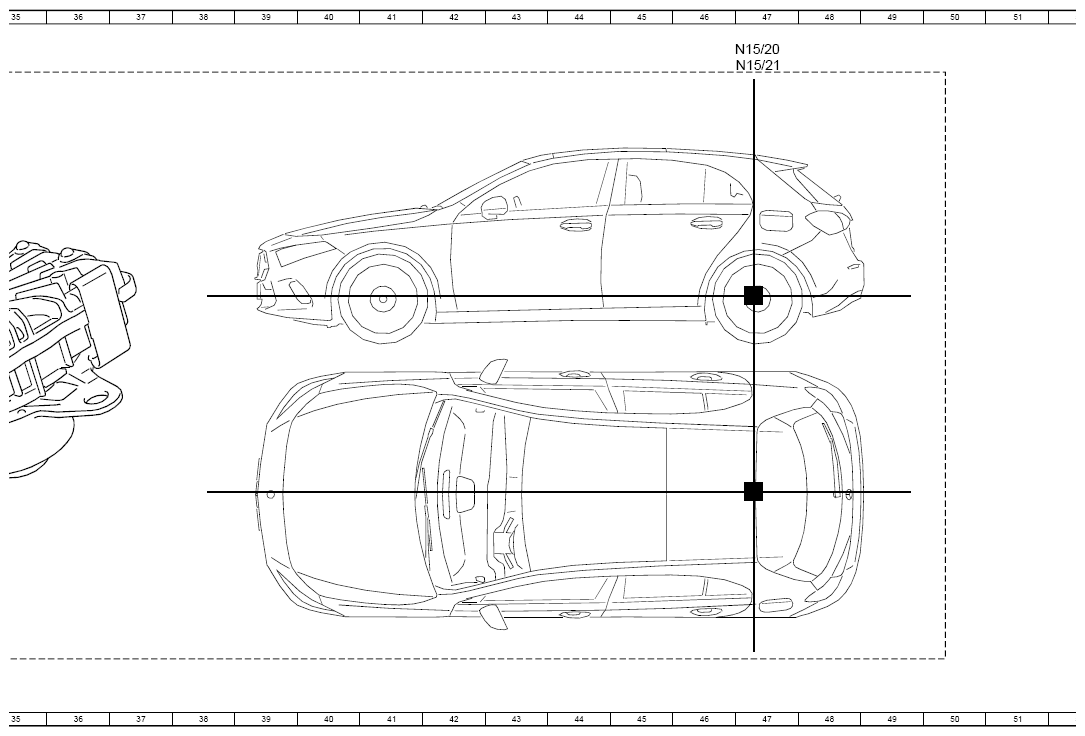

Control unit N15/20, N15/21
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| Code 802 | YoM 21/1 | 5C |
| Code 802 | YoM 21/1 | 19C |
| F152/3 | Engine compartment fuse and relay module | 12L |
| F152/3f67 | Fuse 67 | 11L |
| F152/4 | Vehicle interior fuse and relay module | 5L |
| F152/4 | Vehicle interior fuse and relay module | 19L |
| F152/4f105 | Fuse 105 | 4L |
| F152/4f134 | Fuse 134 | 18L |
| Flex E | Chassis FlexRay | 8K |
| N145/1 | Drive unit control unit | 8L |
| N15/20 | Left rear axle differential control unit | 4A |
| N15/20 | Left rear axle differential control unit | 11A |
| N15/20 | Left rear axle differential control unit | 26A |
| N15/20 | Left rear axle differential control unit | 34A |
| N15/20 | Left rear axle differential control unit | 47A |
| N15/21 | Right rear axle differential control unit | 26A |
| N15/21 | Right rear axle differential control unit | 15A |
| N15/21 | Right rear axle differential control unit | 21A |
| N15/21 | Right rear axle differential control unit | 34A |
| N15/21 | Right rear axle differential control unit | 47A |
| W6 | Left wheel arch trunk ground point | 7F |
| W6 | Left wheel arch trunk ground point | 21F |
| W7 | Right wheelhouse trunk ground point | 5F |
| W7 | Right wheelhouse trunk ground point | 19F |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 10H |
| Z3z2 | Tml. 15 connector sleeve | 10F |
