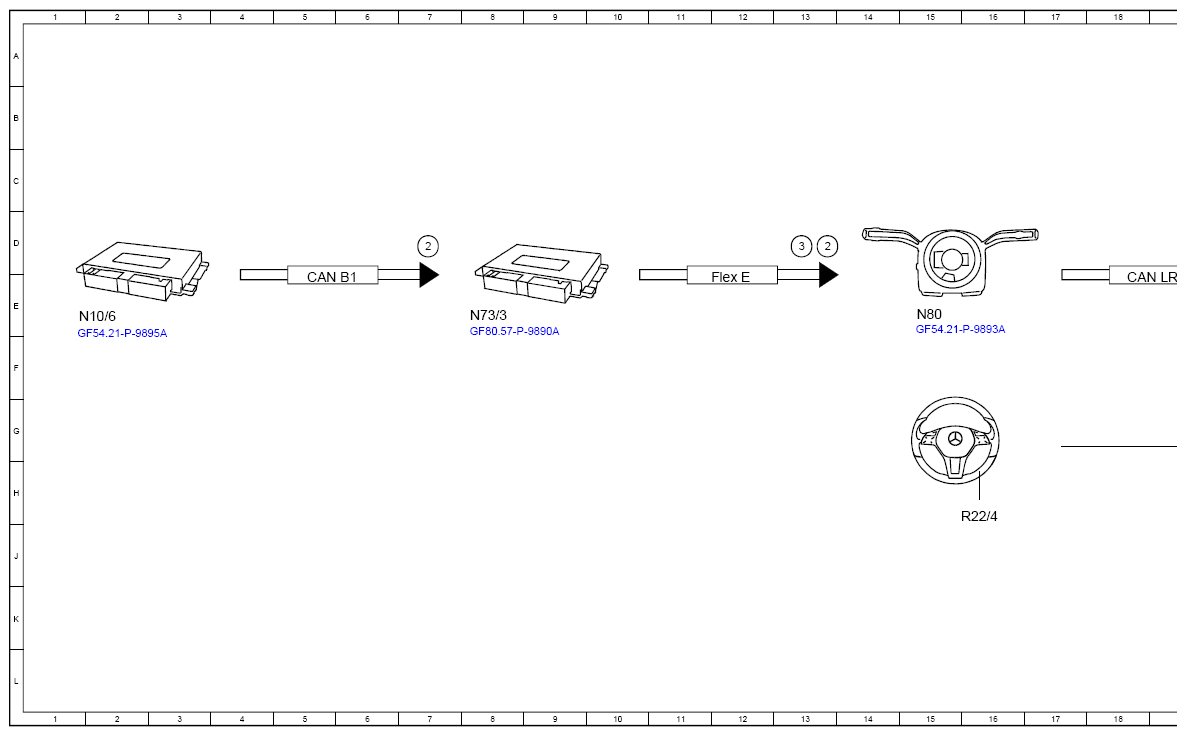

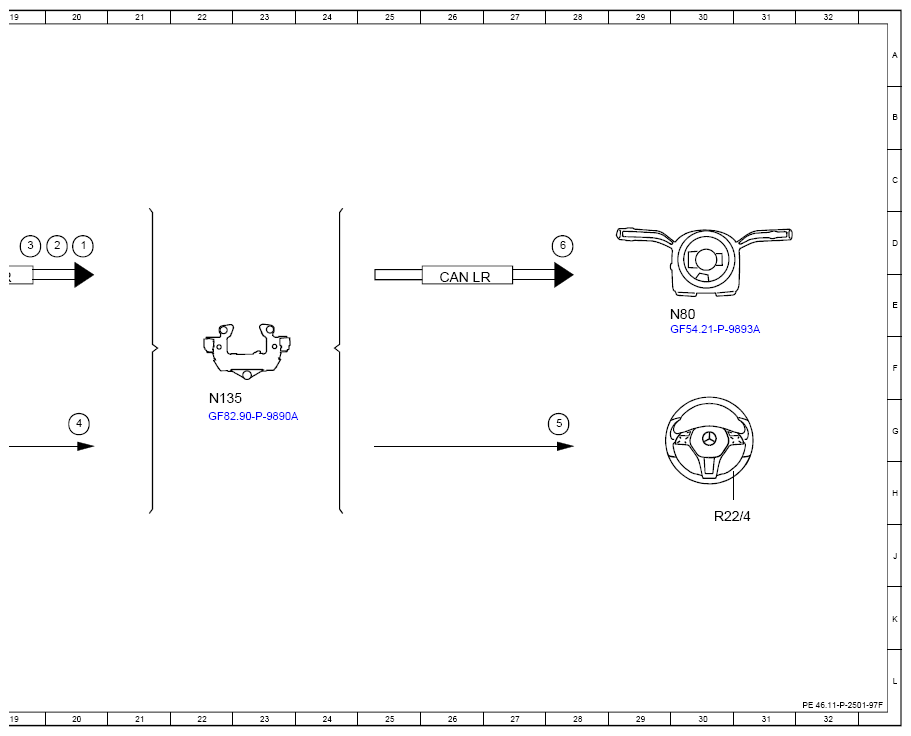

(Function Schematic For Actuating Steering Wheel Heater - PE46.11-P-2501-97F)
Model 192 with code 443 (Heated steering wheel)
Model 232 with code 443 (Heated steering wheel)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Steering wheel heater switch, status | 20D |
| 2 | Interior temperature, signal | 20D |
| 2 | Interior temperature, signal | 7D |
| 2 | Interior temperature, signal | 13D |
| 3 | Circuit 15, status | 13D |
| 3 | Circuit 15, status | 19D |
| 4 | Heating element temperature sensor, signal | 20G |
| 5 | Steering wheel heater, actuation | 28G |
| 6 | Steering wheel heater, status | 28D |
| CAN B1 | CAN 1 for vehicle interior | 5E |
| CAN LR | CAN for steering wheel | 18E |
| CAN LR | CAN for steering wheel | 26E |
| Flex E | Chassis FlexRay | 12E |
| N10/6 | Front signal acquisition and actuation module control unit | 2E |
| N135 | Steering wheel electronics | 22G |
| N73/3 | Electronic ignition switch control unit | 8E |
| N80 | Steering column module control unit | 15E |
| N80 | Steering column module control unit | 30E |
| R22/4 | Steering wheel heater | 16H |
| R22/4 | Steering wheel heater | 30H |
