Wiring Diagram For Reversible Emergency Tensioning Retractor - PE91.40-P-2200-97IBA
Model 177
with code 299 (PRE-SAFE®)

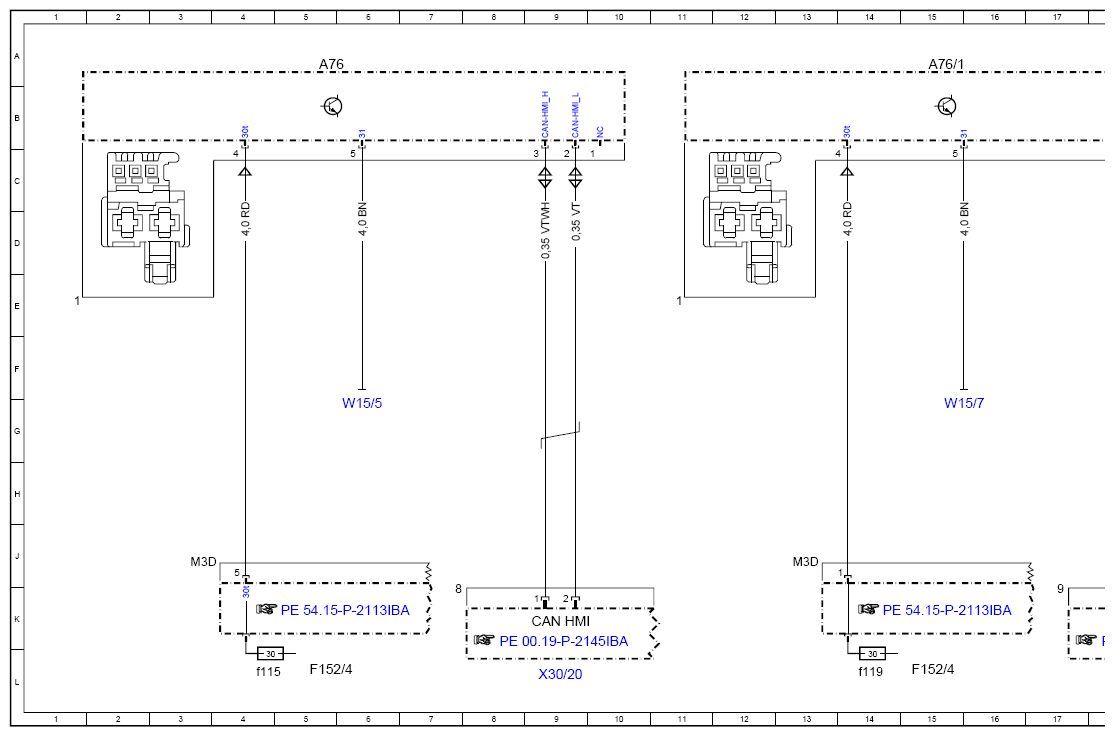

Seat belt tensioner A76, A76/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |

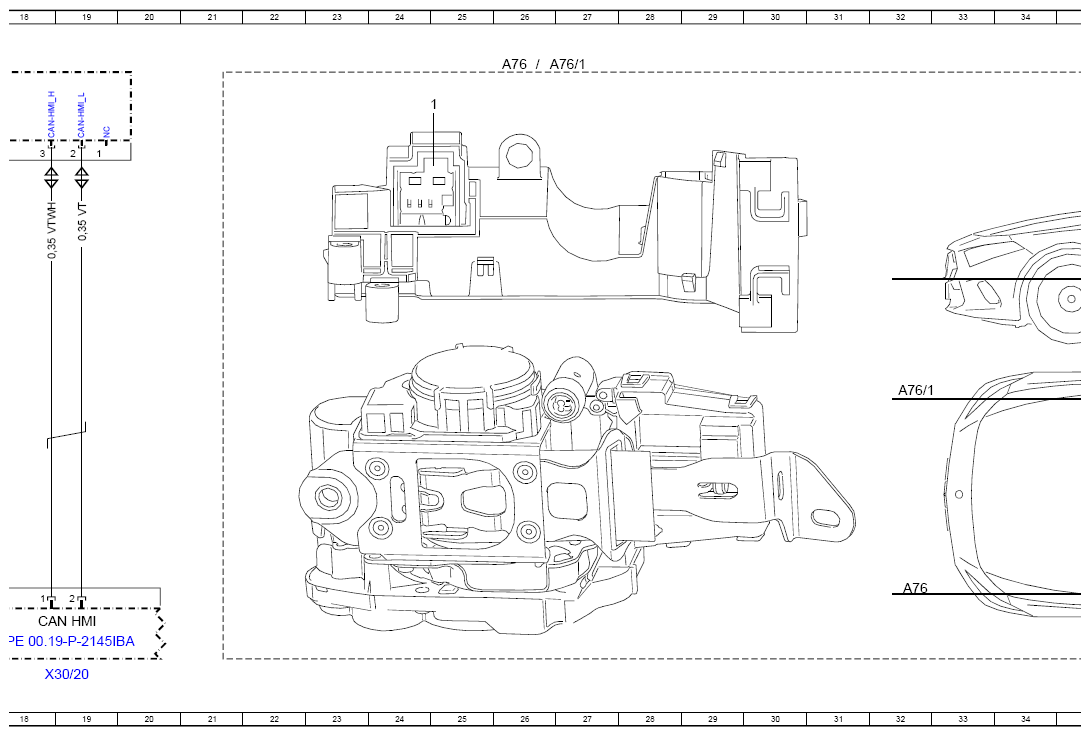

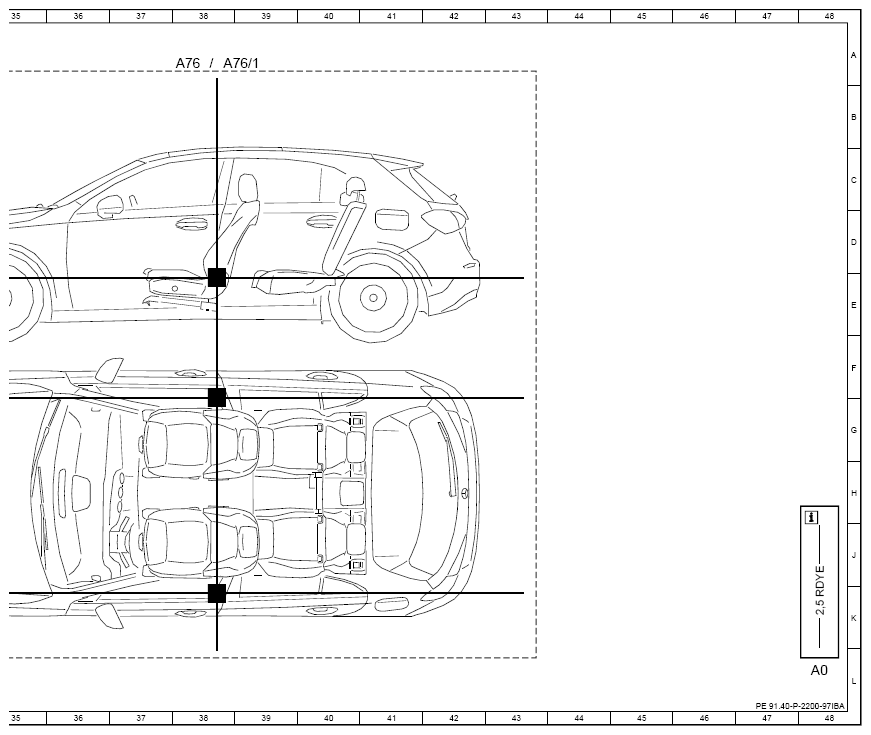

| A76 | Left front reversible emergency tensioning retractor | 5A |
| A76 | Left front reversible emergency tensioning retractor | 32K |
| A76 | Left front reversible emergency tensioning retractor | 26A |
| A76 | Left front reversible emergency tensioning retractor | 38A |
| A76/1 | Right front reversible emergency tensioning retractor | 15A |
| A76/1 | Right front reversible emergency tensioning retractor | 32F |
| A76/1 | Right front reversible emergency tensioning retractor | 27A |
| A76/1 | Right front reversible emergency tensioning retractor | 38A |
| CAN HMI | User interface CAN | 9K |
| CAN HMI | User interface CAN | 18K |
| F152/4 | Vehicle interior fuse and relay module | 5L |
| F152/4 | Vehicle interior fuse and relay module | 15L |
| F152/4f115 | Fuse 115 | 4L |
| F152/4f119 | Fuse 119 | 14L |
| W15/5 | Left front footwell ground point | 6G |
| W15/7 | Right front footwell ground point | 15G |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 9L |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 19L |
