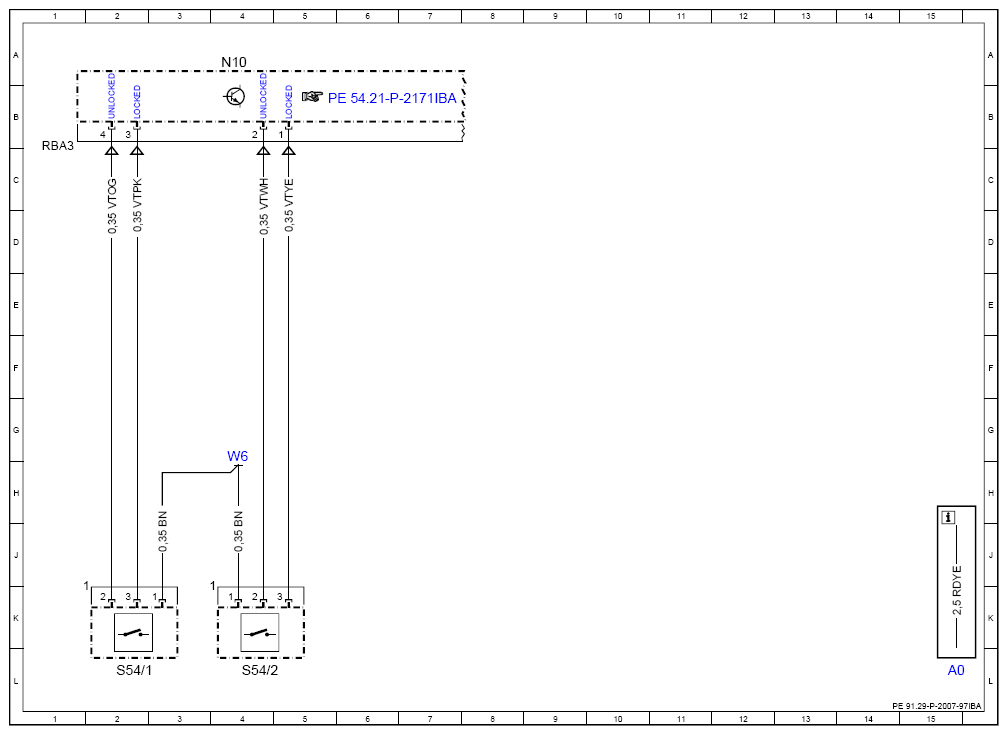

Wiring Diagram For Rear Seat Adjustment/Release - PE91.29-P-2007-97IBA
Model 177
with code 287 (Through-loading feature)
Valid for LONG SEDAN and SPECIAL VERSION
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| N10 | Central control module | 4A |
| S54/1 | Left rear passenger compartment backrest lock microswitch | 2L |
| S54/2 | Right rear passenger compartment backrest lock microswitch | 4L |
| W6 | Left wheel arch trunk ground point | 4H |
