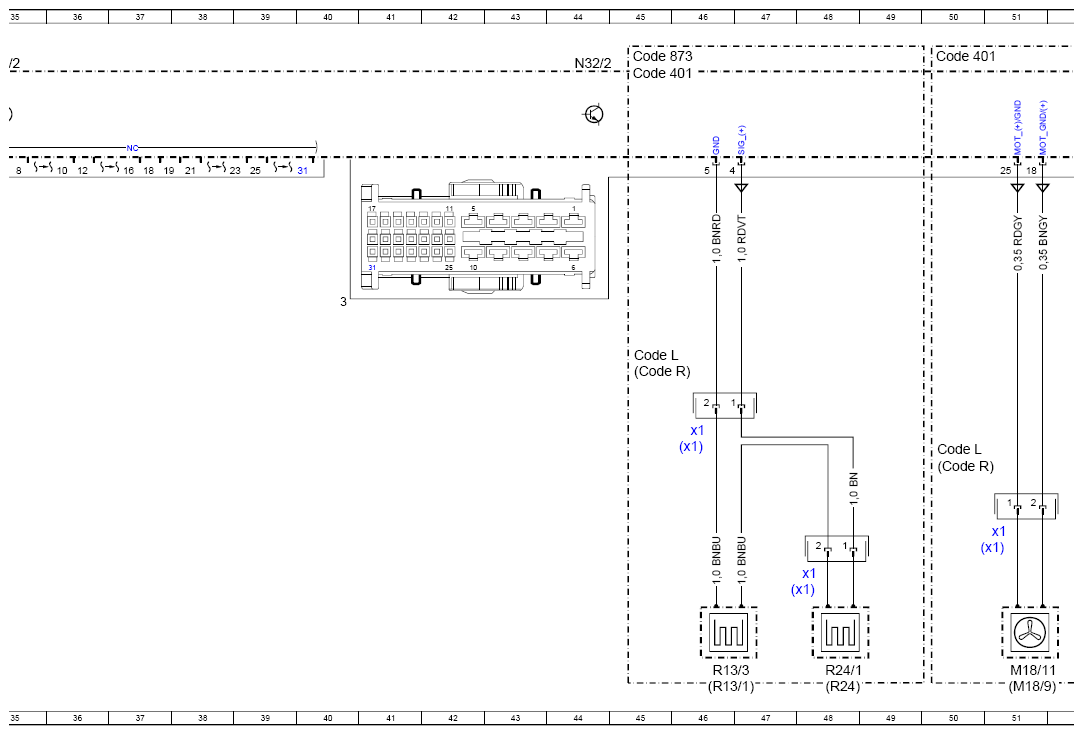

Wiring Diagram For Front Passenger Seat Control Unit - PE91.29-P-2115-97IBA
Model 177
with code 241 (Memory switch for electrically adjustable front passenger seat, left)
Control unit N32/2
Model 177
with code 242 (Front passenger seat, electrically adjustable with memory function)
Control unit N32/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| CAN B | Interior CAN | 11K |
| CAN B | Interior CAN | 16K |
| CAN B | Interior CAN | 20K |
| Code 401 | Seat climate control for driver and front passenger | 45A |
| Code 401 | Seat climate control for driver and front passenger | 27A |
| Code 401 | Seat climate control for driver and front passenger | 29A |
| Code 401 | Seat climate control for driver and front passenger | 50A |
| Code 409 | Left/right front multicontour seats | 9D |
| Code 409 | Left/right front multicontour seats | 14D |
| Code 873 | Seat heater for driver and front passenger | 45A |
| Code 873 | Seat heater for driver and front passenger | 27A |
| Code L | LEFT-HAND DRIVE | 27G |
| Code L | LEFT-HAND DRIVE | 29G |
| Code L | LEFT-HAND DRIVE | 7E |
| Code L | LEFT-HAND DRIVE | 50G |
| Code L | LEFT-HAND DRIVE | 74G |
| Code L | LEFT-HAND DRIVE | 45F |
| Code R | RIGHT-HAND DRIVE | 27H |
| Code R | RIGHT-HAND DRIVE | 29H |
| Code R | RIGHT-HAND DRIVE | 7F |
| Code R | RIGHT-HAND DRIVE | 45F |
| Code R | RIGHT-HAND DRIVE | 50H |
| Code R | RIGHT-HAND DRIVE | 74J |
| F152/4 | Vehicle interior fuse and relay module | 7L |
| F152/4f138 | Fuse 138 | 6L |
| M18/10 | Left front backrest seat ventilation motor | 31L |
| M18/10x1 | Left front backrest seat ventilation motor electrical connector | 30J |
| M18/11 | Right front seat cushion seat ventilation motor | 51L |
| M18/11x1 | Right front seat cushion seat ventilation motor electrical connector | 51J |
| M18/12 | Right front backrest seat ventilation motor | 31L |
| M18/12x1 | Right front backrest seat ventilation motor electrical connector | 30J |
| M18/9 | Left front seat cushion seat ventilation motor | 51L |
| M18/9x1 | Left front seat cushion seat ventilation motor electrical connector | 51J |
| M28/1 | Front passenger seat fore/aft adjustment motor | 54L |
| M28/10 | Front passenger seat height adjustment motor | 56L |
| M28/10b1 | Front passenger seat, seat height adjustment Hall sensor, | 57L |
| M28/1b1 | Seat fore/aft adjustment Hall sensor, front passenger seat | 55L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 33L |
| M28/5b1 | Backrest inclination Hall sensor, front passenger seat | 34L |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 59L |
| M28/9b1 | Seat inclination adjustment Hall sensor, front passenger seat | 60L |
| N10 | Central control module | 12L |
| N10 | Central control module | 16L |
| N32/16 | Front passenger multicontour seat control unit | 20L |
| N32/2 | Front passenger seat control unit | 4A |
| N32/2 | Front passenger seat control unit | 12A |
| N32/2 | Front passenger seat control unit | 20A |
| N32/2 | Front passenger seat control unit | 26A |
| N32/2 | Front passenger seat control unit | 35A |
| N32/2 | Front passenger seat control unit | 44A |
| N32/2 | Front passenger seat control unit | 52A |
| N32/2 | Front passenger seat control unit | 60A |
| N32/2 | Front passenger seat control unit | 69A |
| N32/2 | Front passenger seat control unit | 80A |
| R13/1 | Left front seat cushion heater pad | 46L |
| R13/1x1 | Left front seat surface heater pad electrical connector | 46G |
| R13/2 | Left front seat backrest heater pad | 28L |
| R13/2x1 | Left front seat backrest heater pad electrical connector | 28J |
| R13/3 | Right front seat cushion heater pad | 46L |
| R13/3x1 | Right front seat surface heater pad electrical connector | 46G |
| R13/4 | Right front seat backrest heater pad | 28L |
| R13/4x1 | Right front seat backrest heater pad electrical connector | 28J |
| R24 | Adjustable seat cushion length heater pad, left front seat | 48L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 48L |
| R24/1x1 | Adjustable seat cushion length heater pad electrical connector, right front seat | 48J |
| R24x1 | Adjustable seat cushion length heater pad electrical connector, left front seat | 48K |
| W18 | Left front seat crossmember ground point | 8F |
| W19 | Right front seat crossmember ground point | 8E |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 19H |
| Z35/41z2 | Interior CAN (CAN B) High connector sleeve | 15G |
| Z35/42z2 | Interior CAN (CAN B) low connector sleeve | 16G |
| Z61/21z1 | Ground connection connector sleeve | 55E |
