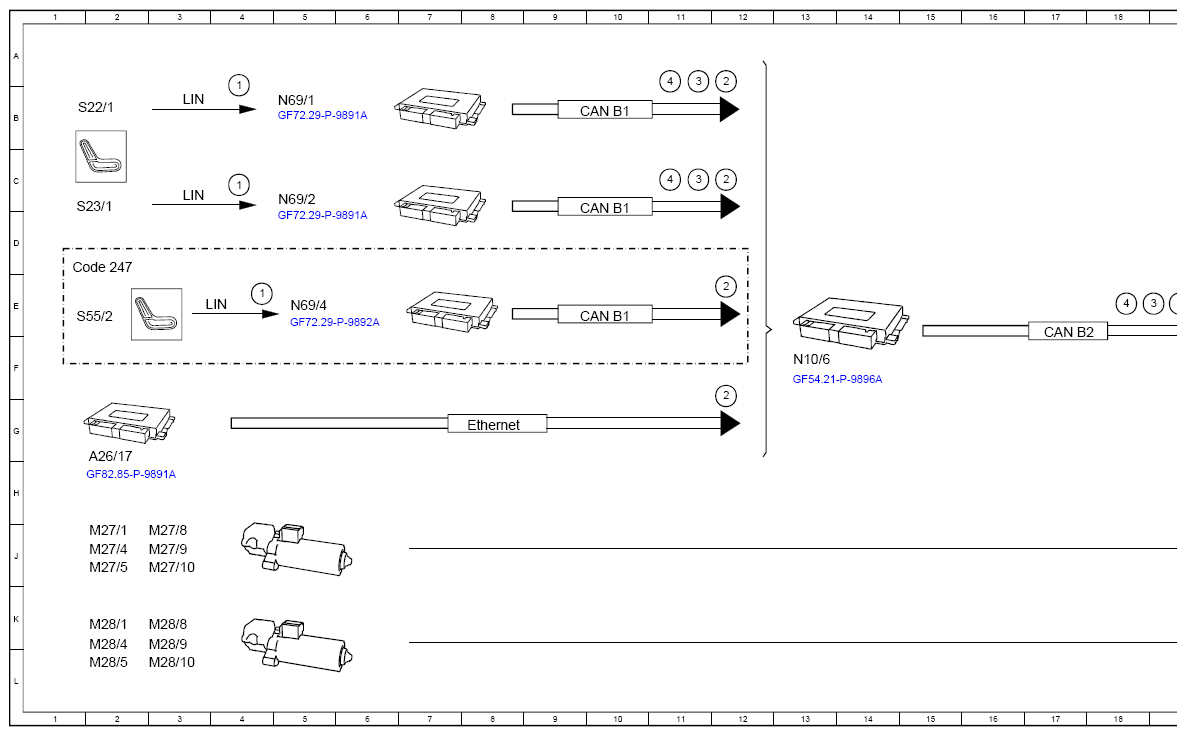

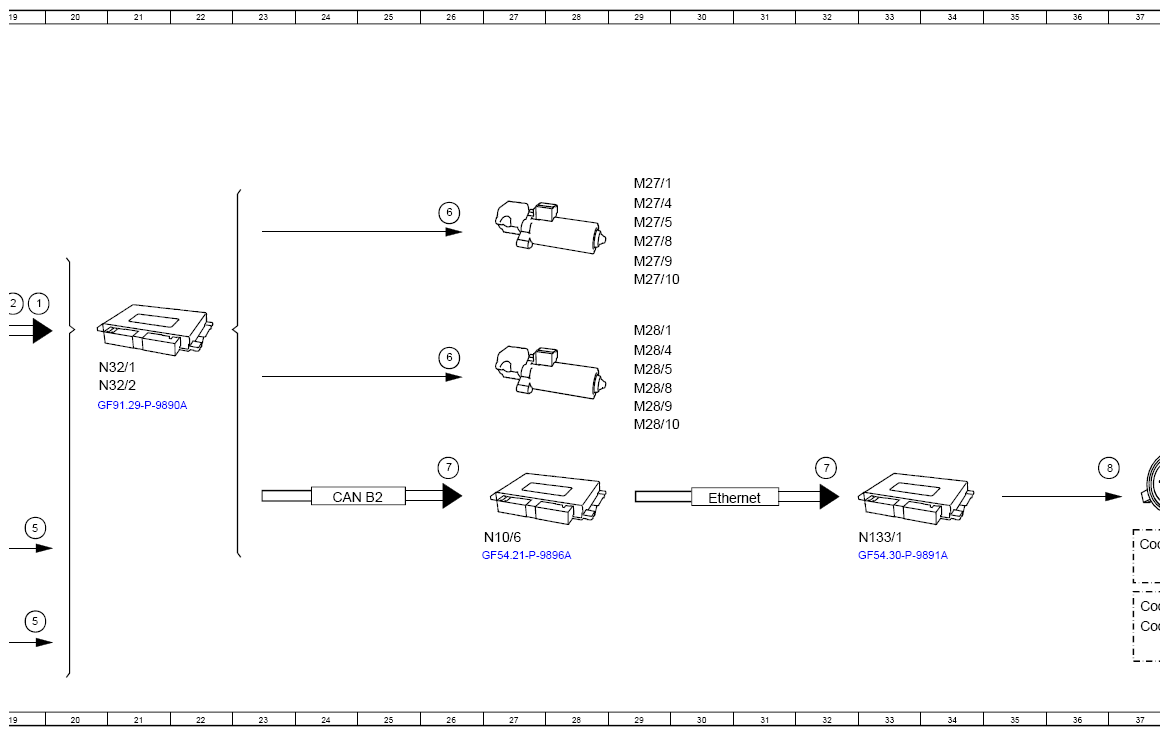

(Function Schematic For Front Seat Electric Seat Adjustment - PE91.29-P-2501-97G)
Model 294, 295, 296, 297 with 275 (Memory Package (driver's seat, steering column and mirror))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat adjustment switch group, status | 4B |
| 1 | Seat adjustment switch group, status | 4C |
| 1 | Seat adjustment switch group, status | 19E |
| 1 | Seat adjustment switch group, status | 4E |
| 2 | Manual adjustment, request | 12C |
| 2 | Manual adjustment, request | 12D |
| 2 | Manual adjustment, request | 12F |
| 2 | Manual adjustment, request | 19E |
| 2 | Manual adjustment, request | 12A |
| 3 | Store memory position, request | 11C |
| 3 | Store memory position, request | 19E |
| 3 | Store memory position, request | 11A |
| 4 | Adopt memory position, request | 11C |
| 4 | Adopt memory position, request | 18E |
| 4 | Adopt memory position, request | 11A |
| 5 | Hall sensors, signal | 19J |
| 5 | Hall sensors, signal | 19K |
| 6 | Seat adjustment motor, actuation | 26C |
| 6 | Seat adjustment motor, actuation | 26F |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 26H |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 32G |
| 8 | Speaker, actuation | 37H |
| A26/17 | Head unit | 2G |
| CAN B1 | CAN 1 for vehicle interior | 10B |
| CAN B1 | CAN 1 for vehicle interior | 10D |
| CAN B1 | CAN 1 for vehicle interior | 10E |
| CAN B2 | CAN 2 for vehicle interior | 24H |
| CAN B2 | CAN 2 for vehicle interior | 17F |
| Code 247 | Electric seat adjustment additionally operable from rear passenger compartment | 1D |
| Code F295 | Model series 295 | 37K |
| Code F296 | Model series 296 | 37J |
| Code F297 | Model series 297 | 37K |
| Ethernet | Ethernet | 30H |
| Ethernet | Ethernet | 8G |
| H4/122 | Front mid-range speaker | 38J |
| H4/127 | Instrument panel mid-range speaker | 38L |
| LIN | Local Interconnect Network | 3B |
| LIN | Local Interconnect Network | 3C |
| LIN | Local Interconnect Network | 3E |
| M27/1 | Driver's seat fore/aft adjustment seat adjustment motor | 2J |
| M27/1 | Driver's seat fore/aft adjustment seat adjustment motor | 29C |
| M27/10 | Driver's seat height adjustment seat adjustment motor | 3J |
| M27/10 | Driver's seat height adjustment seat adjustment motor | 29E |
| M27/4 | Driver's seat head restraint height seat adjustment motor | 2J |
| M27/4 | Driver's seat head restraint height seat adjustment motor | 29C |
| M27/5 | Driver's seat backrest inclination seat adjustment motor | 2J |
| M27/5 | Driver's seat backrest inclination seat adjustment motor | 29D |
| M27/8 | Driver's seat cushion length adjustment seat adjustment motor | 3J |
| M27/8 | Driver's seat cushion length adjustment seat adjustment motor | 29D |
| M27/9 | Driver's seat inclination adjustment seat adjustment motor | 3J |
| M27/9 | Driver's seat inclination adjustment seat adjustment motor | 29D |
| M28/1 | Front passenger seat fore/aft adjustment seat adjustment motor | 2K |
| M28/1 | Front passenger seat fore/aft adjustment seat adjustment motor | 29E |
| M28/10 | Front passenger seat height adjustment seat adjustment motor | 3L |
| M28/10 | Front passenger seat height adjustment seat adjustment motor | 29G |
| M28/4 | Front passenger seat head restraint height seat adjustment motor | 2K |
| M28/4 | Front passenger seat head restraint height seat adjustment motor | 29F |
| M28/5 | Front passenger seat backrest inclination seat adjustment motor | 2L |
| M28/5 | Front passenger seat backrest inclination seat adjustment motor | 29F |
| M28/8 | Front passenger seat cushion length adjustment seat adjustment motor | 3K |
| M28/8 | Front passenger seat cushion length adjustment seat adjustment motor | 29F |
| M28/9 | Front passenger seat inclination adjustment seat adjustment motor | 3K |
| M28/9 | Front passenger seat inclination adjustment seat adjustment motor | 29G |
| N10/6 | Front signal acquisition and actuation module control unit | 27J |
| N10/6 | Front signal acquisition and actuation module control unit | 13F |
| N133/1 | Instrument cluster control unit | 33J |
| N32/1 | Driver seat control unit | 20F |
| N32/2 | Front passenger seat control unit | 20F |
| N69/1 | Left front door control unit | 5B |
| N69/2 | Right front door control unit | 5C |
| N69/4 | Right rear door control unit | 5E |
| S22/1 | Left front partially electric seat adjustment switch | 1B |
| S23/1 | Right front partially electric seat adjustment switch | 1C |
| S55/2 | Right rear seat adjustment switch group | 1E |
