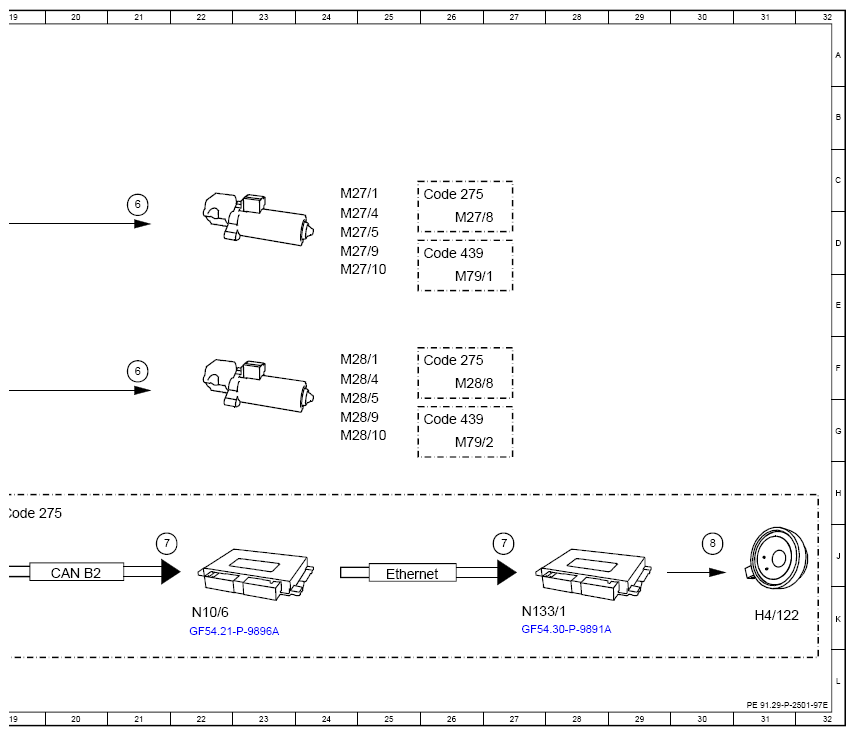

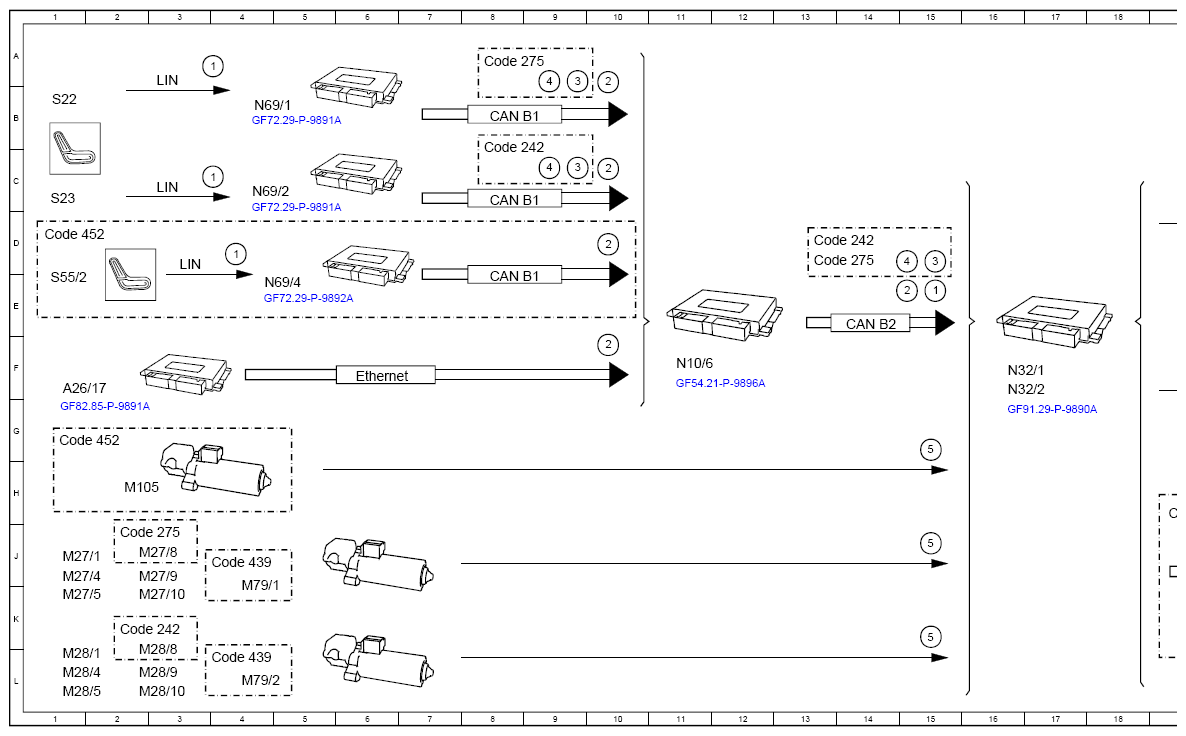

(Function Schematic For Front Seat Electric Seat Adjustment - PE91.29-P-2501-97E)
Model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat adjustment switch group, status | 4A |
| 1 | Seat adjustment switch group, status | 4C |
| 1 | Seat adjustment switch group, status | 15E |
| 1 | Seat adjustment switch group, status | 4D |
| 2 | Manual adjustment, request | 10A |
| 2 | Manual adjustment, request | 10C |
| 2 | Manual adjustment, request | 10D |
| 2 | Manual adjustment, request | 10F |
| 2 | Manual adjustment, request | 15E |
| 3 | Store memory position, request | 9B |
| 3 | Store memory position, request | 9A |
| 3 | Store memory position, request | 15D |
| 4 | Adopt memory position, request | 9C |
| 4 | Adopt memory position, request | 9A |
| 4 | Adopt memory position, request | 15D |
| 5 | Hall sensors, signal | 15J |
| 5 | Hall sensors, signal | 15K |
| 5 | Hall sensors, signal | 15G |
| 6 | Seat adjustment motor, actuation | 21C |
| 6 | Seat adjustment motor, actuation | 21F |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 22H |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 27J |
| 8 | Speaker, actuation | 30J |
| A26/17 | Head unit | 1F |
| CAN B1 | CAN 1 for vehicle interior | 8B |
| CAN B1 | CAN 1 for vehicle interior | 8C |
| CAN B1 | CAN 1 for vehicle interior | 8E |
| CAN B2 | CAN 2 for vehicle interior | 20J |
| CAN B2 | CAN 2 for vehicle interior | 14E |
| Code 242 | Electrically adjustable right driver's seat with memory function | 8C |
| Code 242 | Electrically adjustable right driver's seat with memory function | 13D |
| Code 242 | Electrically adjustable right driver's seat with memory function | 2K |
| Code 275 | Memory Package (driver's seat, steering column and mirrors) | 19H |
| Code 275 | Memory Package (driver's seat, steering column and mirrors) | 8A |
| Code 275 | Memory Package (driver's seat, steering column and mirrors) | 2J |
| Code 275 | Memory Package (driver's seat, steering column and mirrors) | 13D |
| Code 275 | Memory Package (driver's seat, steering column and mirrors) | 26C |
| Code 275 | Memory Package (driver's seat, steering column and mirrors) | 26F |
| Code 439 | Intelligent/folding comfort head restraint at front | 4J |
| Code 439 | Intelligent/folding comfort head restraint at front | 4L |
| Code 439 | Intelligent/folding comfort head restraint at front | 26D |
| Code 439 | Intelligent/folding comfort head restraint at front | 26G |
| Code 452 | Front passenger seat chauffeur mode | 1D |
| Code 452 | Front passenger seat chauffeur mode | 1G |
| Ethernet | Ethernet | 25J |
| Ethernet | Ethernet | 6F |
| H4/122 | Center instrument panel and emergency call mid-range speaker | 31K |
| LIN | Local Interconnect Network | 3A |
| LIN | Local Interconnect Network | 3C |
| LIN | Local Interconnect Network | 3D |
| M105 | Footrest actuator motor | 2H |
| M27/1 | Driver seat fore/aft adjustment motor | 1J |
| M27/1 | Driver seat fore/aft adjustment motor | 24C |
| M27/10 | Driver seat height adjustment motor | 2K |
| M27/10 | Driver seat height adjustment motor | 24D |
| M27/4 | Head restraint height seat adjustment motor, driver seat | 1J |
| M27/4 | Head restraint height seat adjustment motor, driver seat | 24D |
| M27/5 | Driver seat backrest inclination adjustment motor | 1K |
| M27/5 | Driver seat backrest inclination adjustment motor | 24D |
| M27/8 | Seat cushion length adjustment motor, driver seat | 2J |
| M27/8 | Seat cushion length adjustment motor, driver seat | 26D |
| M27/9 | Seat inclination adjustment motor, driver seat | 2J |
| M27/9 | Seat inclination adjustment motor, driver seat | 24D |
| M28/1 | Front passenger seat fore/aft adjustment motor | 1L |
| M28/1 | Front passenger seat fore/aft adjustment motor | 24F |
| M28/10 | Front passenger seat height adjustment motor | 2L |
| M28/10 | Front passenger seat height adjustment motor | 24G |
| M28/4 | Head restraint height seat adjustment motor, front passenger seat | 1L |
| M28/4 | Head restraint height seat adjustment motor, front passenger seat | 24F |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 1L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 24G |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 2L |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 26F |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 2L |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 24G |
| M79/1 | Driver seat head restraint inclination seat adjustment motor | 4K |
| M79/1 | Driver seat head restraint inclination seat adjustment motor | 26E |
| M79/2 | Front passenger seat head restraint inclination seat adjustment motor | 4L |
| M79/2 | Front passenger seat head restraint inclination seat adjustment motor | 26G |
| N10/6 | Front signal acquisition and actuation module control unit | 22K |
| N10/6 | Front signal acquisition and actuation module control unit | 11F |
| N133/1 | Instrument cluster control unit | 27K |
| N32/1 | Driver seat control unit | 16F |
| N32/2 | Front passenger seat control unit | 16F |
| N69/1 | Left front door control unit | 4B |
| N69/2 | Right front door control unit | 4C |
| N69/4 | Right rear door control unit | 4E |
| S22 | Left front seat adjustment switch group | 1B |
| S23 | Right front seat adjustment switch group | 1C |
| S55/2 | Right rear seat adjustment switch group | 1E |
