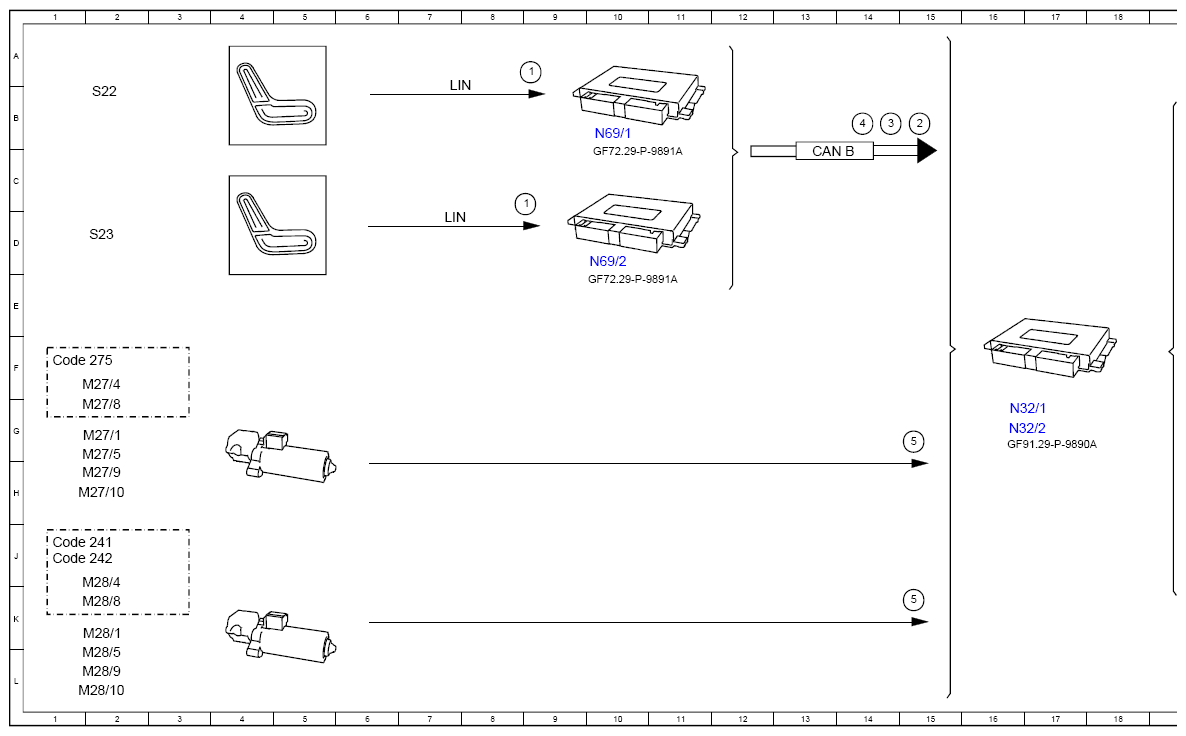

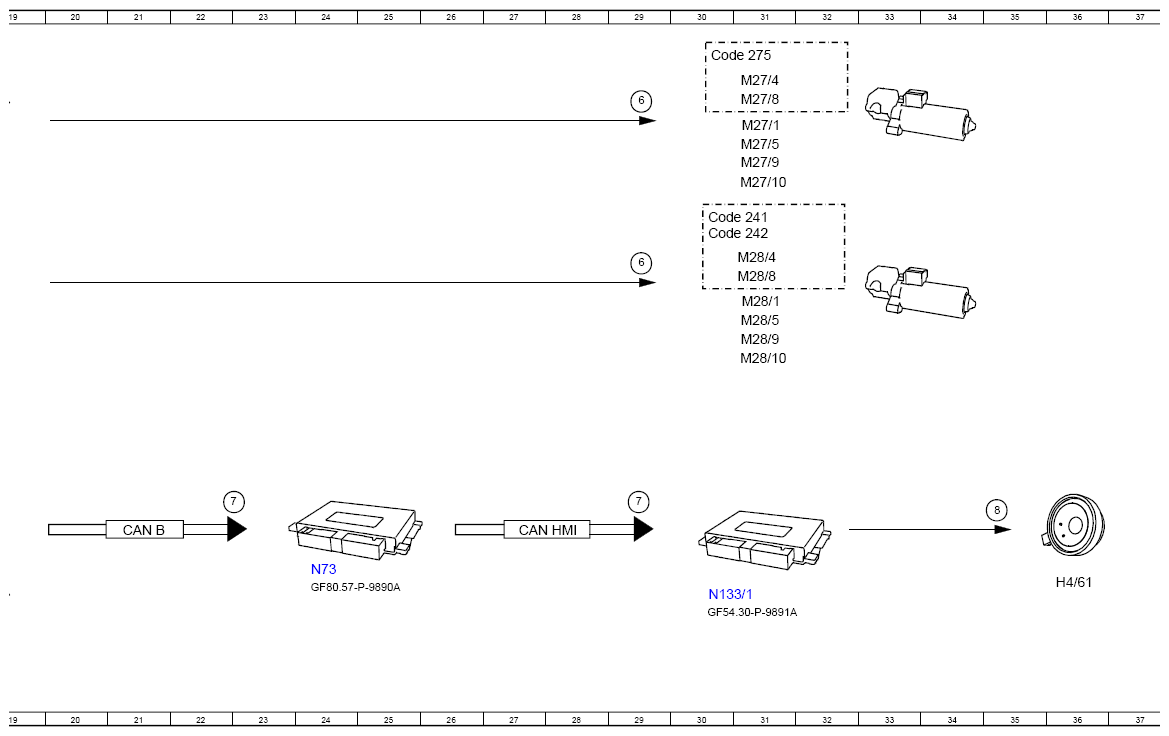

(Function Schematic For Front Seat Electric Seat Adjustment - PE91.29-P-2501-97C)
Model 293 with code 221 (Electrically adjustable left driver seat)
Model 293 with code 222 (Electrically adjustable right front seat)
Model 293 with code 241 (Memory switch for electrically adjustable front passenger seat, left)
Model 293 with code 242 (Front passenger seat, electrically adjustable with memory function)
Model 293 with code 275 (Memory Package (driver's seat, steering column and mirror))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat adjustment switch group, status | 9A |
| 1 | Seat adjustment switch group, status | 9C |
| 2 | Manual adjustment, request | 15B |
| 3 | Store memory position, request | 15B |
| 4 | Adopt memory position, request | 14B |
| 5 | Hall sensors, signal | 15G |
| 5 | Hall sensors, signal | 15K |
| 6 | Seat adjustment motor, actuation | 29B |
| 6 | Seat adjustment motor, actuation | 29D |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 26H |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 23H |
| 8 | Speaker, actuation | 35H |
| CAN B | Interior CAN | 13C |
| CAN B | Interior CAN | 21J |
| CAN HMI | User interface CAN | 27J |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 1J |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 30D |
| Code 242 | Electrically adjustable front passenger seat with memory function | 1J |
| Code 242 | Electrically adjustable front passenger seat with memory function | 30D |
| Code 275 | Memory package | 1F |
| Code 275 | Memory package | 30A |
| H4/61 | Instrument cluster speaker | 36J |
| LIN | Local Interconnect Network | 7B |
| LIN | Local Interconnect Network | 7D |
| M27/1 | Driver seat fore/aft adjustment motor | 2G |
| M27/1 | Driver seat fore/aft adjustment motor | 31B |
| M27/10 | Driver seat height adjustment motor | 2H |
| M27/10 | Driver seat height adjustment motor | 31C |
| M27/4 | Driver seat head restraint adjustment motor | 2F |
| M27/4 | Driver seat head restraint adjustment motor | 31A |
| M27/5 | Driver seat backrest inclination adjustment motor | 2G |
| M27/5 | Driver seat backrest inclination adjustment motor | 31B |
| M27/8 | Seat cushion length adjustment motor, driver seat | 2G |
| M27/8 | Seat cushion length adjustment motor, driver seat | 31B |
| M27/9 | Seat inclination adjustment motor, driver seat | 2H |
| M27/9 | Seat inclination adjustment motor, driver seat | 31C |
| M28/1 | Front passenger seat fore/aft adjustment motor | 2K |
| M28/1 | Front passenger seat fore/aft adjustment motor | 31E |
| M28/10 | Front passenger seat height adjustment motor | 2L |
| M28/10 | Front passenger seat height adjustment motor | 31F |
| M28/4 | Front passenger seat head restraint adjustment motor | 2J |
| M28/4 | Front passenger seat head restraint adjustment motor | 31D |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 2L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 31E |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 2K |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 31E |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 2L |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 31F |
| N133/1 | Instrument cluster control unit | 30K |
| N32/1 | Driver seat control unit | 16G |
| N32/2 | Front passenger seat control unit | 16G |
| N69/1 | Driver door control unit | 10B |
| N69/2 | Front passenger door control unit | 10D |
| N73 | Ignition lock control unit | 24J |
| S22 | Left front seat adjustment switch group | 2B |
| S23 | Right front seat adjustment switch group | 2D |
