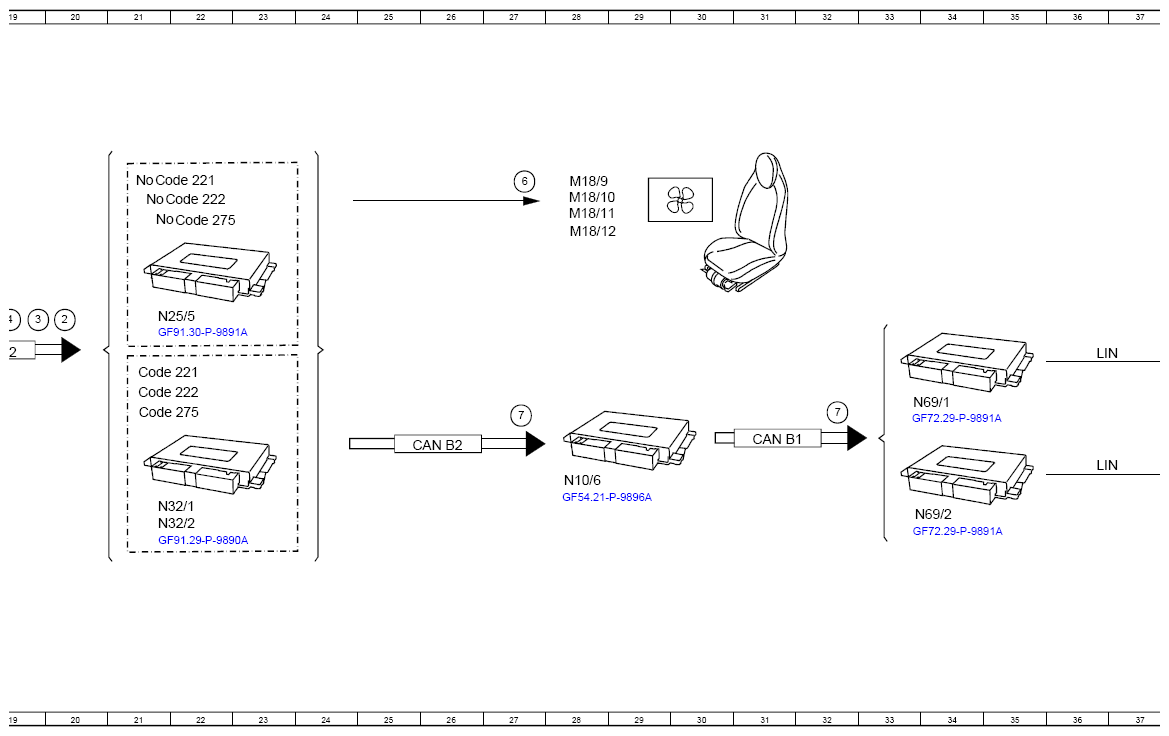

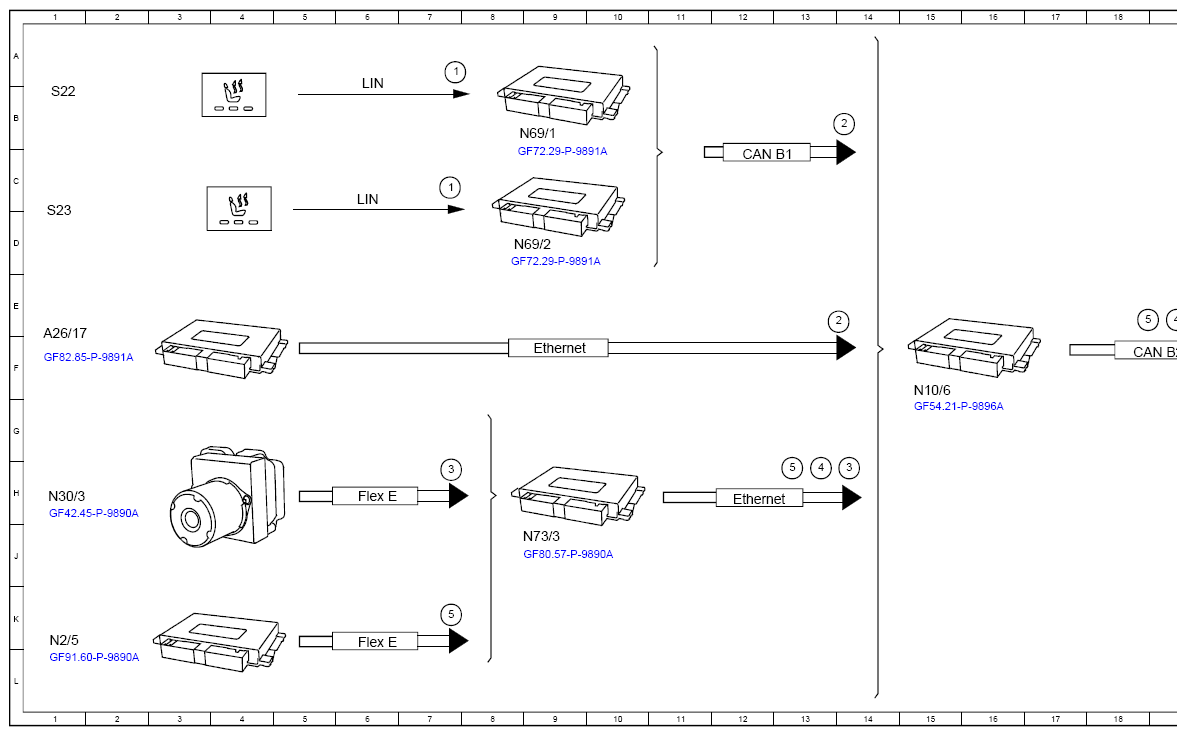

(Function Schematic For Actuating Front Seat Ventilation - PE91.30-P-2501-97F)
Model 206, 214, 236, 254 with code 401 (Climatised front seats)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 7A |
| 1 | Seat climate control switch group, status | 7C |
| 2 | Seat ventilation, request | 14B |
| 2 | Seat ventilation, request | 14E |
| 2 | Seat ventilation, request | 20E |
| 3 | Vehicle speed, signal | 14G |
| 3 | Vehicle speed, signal | 8G |
| 3 | Vehicle speed, signal | 19E |
| 4 | Circuit 15, status | 13H |
| 4 | Circuit 15, status | 19E |
| 5 | Crash, signal | 7K |
| 5 | Crash, signal | 13G |
| 5 | Crash, signal | 19E |
| 6 | Seat ventilation motors, actuation | 27C |
| 7 | Seat ventilation, status | 32G |
| 7 | Seat ventilation, status | 38G |
| 7 | Seat ventilation, status | 38F |
| 7 | Seat ventilation, status | 27G |
| A26/17 | Head unit | 1F |
| CAN B1 | CAN 1 for vehicle interior | 12C |
| CAN B1 | CAN 1 for vehicle interior | 31G |
| CAN B2 | CAN 2 for vehicle interior | 18F |
| CAN B2 | CAN 2 for vehicle interior | 26G |
| Code 221 | Electrically adjustable left driver seat | 21C |
| Code 221 | Electrically adjustable left driver seat | 21F |
| Code 222 | Electrically adjustable right driver's seat | 21C |
| Code 222 | Electrically adjustable right driver's seat | 21F |
| Code 275 | Memory Package (driver's seat, steering column and mirrors) | 22D |
| Code 275 | Memory Package (driver's seat, steering column and mirrors) | 21G |
| Ethernet | Ethernet | 9F |
| Ethernet | Ethernet | 12H |
| Flex E | Chassis FlexRay | 6H |
| Flex E | Chassis FlexRay | 6K |
| LIN | Local Interconnect Network | 6B |
| LIN | Local Interconnect Network | 6C |
| LIN | Local Interconnect Network | 36H |
| LIN | Local Interconnect Network | 36F |
| M18/10 | Left front seat backrest seat ventilation motors | 28C |
| M18/11 | Right front seat cushion seat ventilation motors | 28D |
| M18/12 | Right front seat backrest seat ventilation motors | 28D |
| M18/9 | Left front seat cushion seat ventilation motors | 28C |
| N10/6 | Front signal acquisition and actuation module control unit | 15F |
| N10/6 | Front signal acquisition and actuation module control unit | 28H |
| N2/5 | Supplemental restraint system control unit | 1K |
| N25/5 | Driver seat heater control unit | 21E |
| N30/3 | Electronic Stability Program control unit | 1H |
| N32/1 | Driver seat control unit | 21H |
| N32/2 | Front passenger seat control unit | 21J |
| N69/1 | Left front door control unit | 9B |
| N69/1 | Left front door control unit | 34G |
| N69/2 | Right front door control unit | 9D |
| N69/2 | Right front door control unit | 34H |
| N73/3 | Electronic ignition switch control unit | 8J |
| S22 | Left front seat adjustment switch group | 1B |
| S22 | Left front seat adjustment switch group | 38F |
| S23 | Right front seat adjustment switch group | 1D |
| S23 | Right front seat adjustment switch group | 38H |
