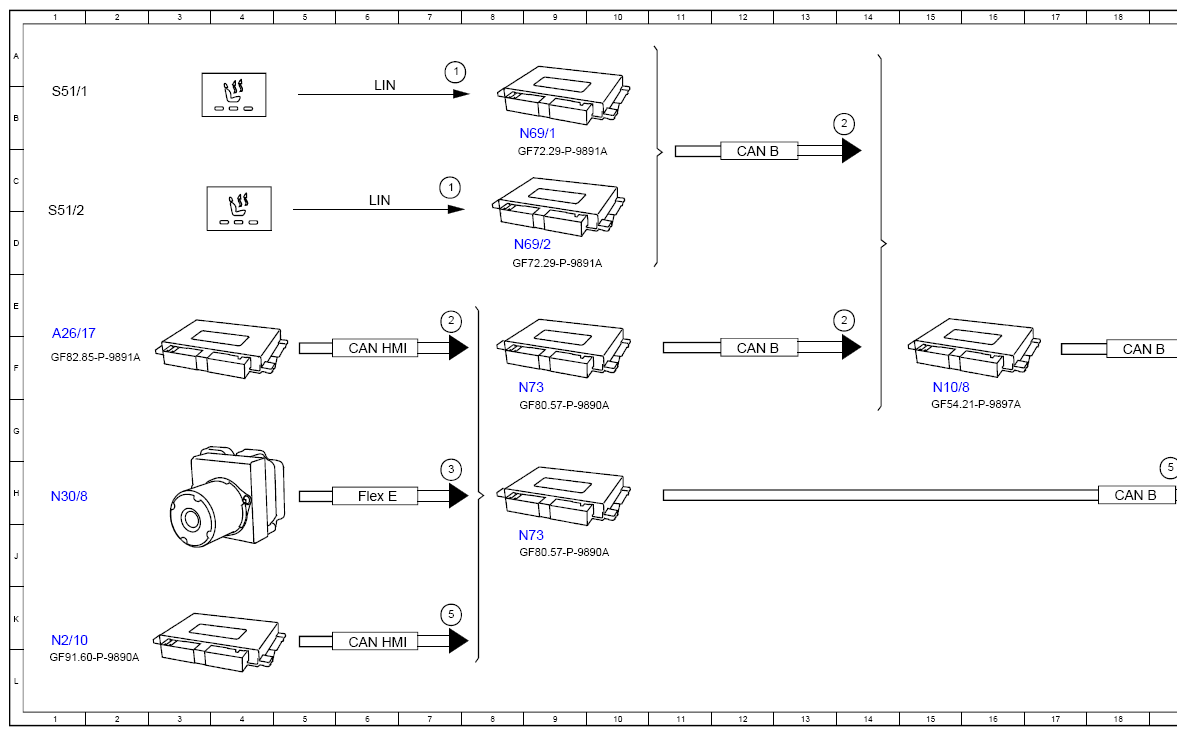

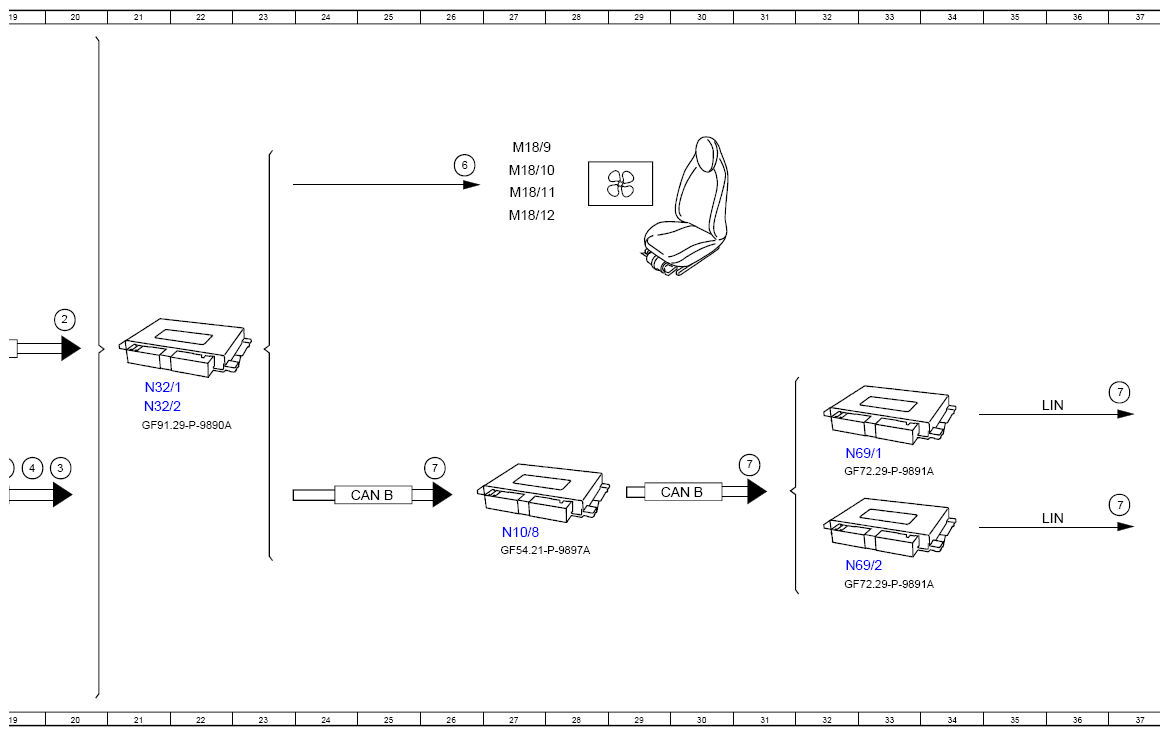

(Function Schematic For Actuating Front Seat Ventilation - PE91.30-P-2501-97C)
Model 293 with code 401 (Climatised front seats)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 7A |
| 1 | Seat climate control switch group, status | 7C |
| 2 | Seat ventilation, request | 14B |
| 2 | Seat ventilation, request | 7E |
| 2 | Seat ventilation, request | 20E |
| 2 | Seat ventilation, request | 14E |
| 3 | Vehicle speed, signal | 20G |
| 3 | Vehicle speed, signal | 7H |
| 4 | Circuit 15, status | 20G |
| 5 | Crash, signal | 7K |
| 5 | Crash, signal | 19G |
| 6 | Seat ventilation motors, actuation | 26C |
| 7 | Seat ventilation, status | 31H |
| 7 | Seat ventilation, status | 37H |
| 7 | Seat ventilation, status | 37G |
| 7 | Seat ventilation, status | 26G |
| A26/17 | Head unit | 1F |
| CAN B | Interior CAN | 12C |
| CAN B | Interior CAN | 18H |
| CAN B | Interior CAN | 30H |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 25H |
| CAN B | Interior CAN | 12F |
| CAN HMI | User interface CAN | 6F |
| CAN HMI | User interface CAN | 6K |
| Flex E | Chassis FlexRay | 6H |
| LIN | Local Interconnect Network | 6B |
| LIN | Local Interconnect Network | 6C |
| LIN | Local Interconnect Network | 36H |
| LIN | Local Interconnect Network | 36G |
| M18/10 | Left front backrest seat ventilation motors | 27C |
| M18/11 | Right front seat cushion seat ventilation motors | 27C |
| M18/12 | Right front backrest seat ventilation motors | 27D |
| M18/9 | Left front seat cushion seat ventilation motors | 27C |
| N10/8 | Rear central control unit | 15F |
| N10/8 | Rear central control unit | 27J |
| N2/10 | Supplemental restraint system control unit | 1K |
| N30/8 | Regenerative braking system control unit | 1H |
| N32/1 | Driver seat control unit | 21F |
| N32/2 | Front passenger seat control unit | 21G |
| N69/1 | Driver door control unit | 9B |
| N69/1 | Driver door control unit | 32G |
| N69/2 | Front passenger door control unit | 9D |
| N69/2 | Front passenger door control unit | 32J |
| N73 | Ignition lock control unit | 9J |
| N73 | Ignition lock control unit | 9F |
| S51/1 | Driver seat climate control switch group | 1B |
| S51/1 | Driver seat climate control switch group | 37G |
| S51/2 | Front passenger seat climate control switch group | 1D |
| S51/2 | Front passenger seat climate control switch group | 38J |
