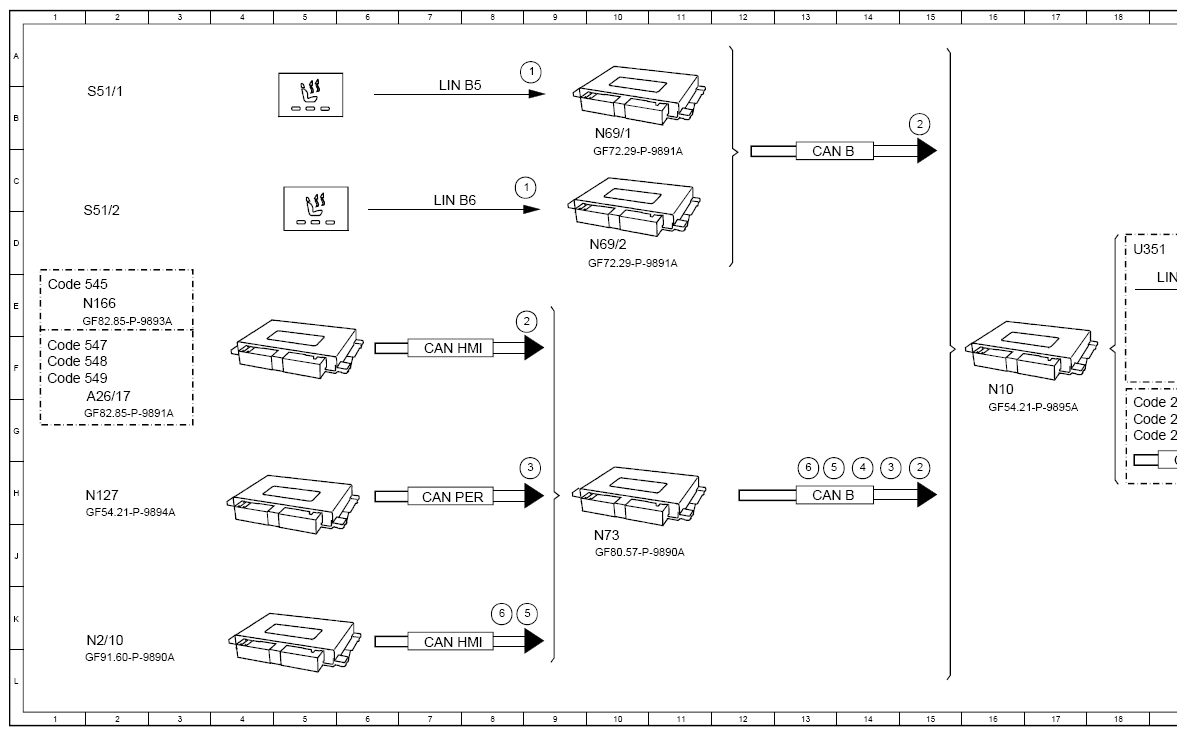

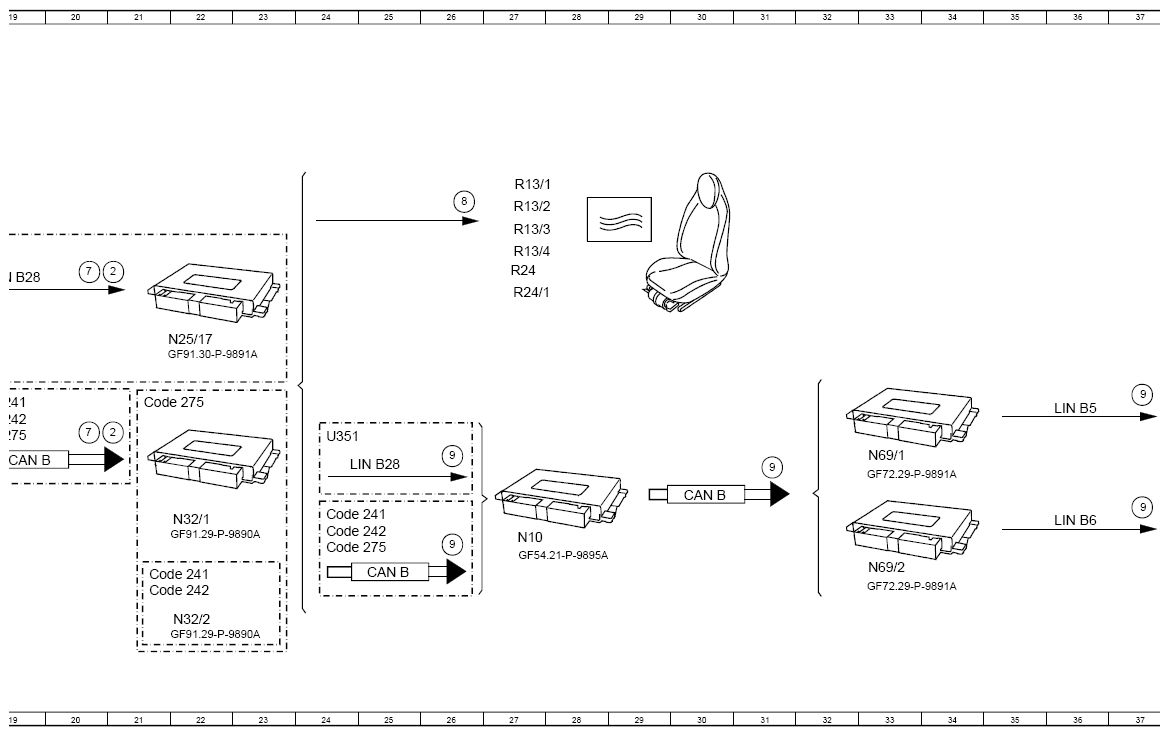

Function Schematic For Actuating Front Seat Heating - PE91.30-P-2502-97A
Model 118, 177, 243, 247 with code 401 (Climatised front seats)
Model 118, 177, 243, 247 with code 873 (Left and right driver's seat heating)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 9A |
| 1 | Seat climate control switch group, status | 9C |
| 2 | Seat heater, request | 15B |
| 2 | Seat heater, request | 15H |
| 2 | Seat heater, request | 9E |
| 2 | Seat heater, request | 21D |
| 2 | Seat heater, request | 21G |
| 3 | Transmission mode, signal | 14H |
| 3 | Transmission mode, signal | 9H |
| 4 | Circuit 15, status | 14H |
| 5 | Seat belt buckle switch, status | 13H |
| 5 | Seat belt buckle switch, status | 9K |
| 6 | Crash, signal | 13H |
| 6 | Crash, signal | 8K |
| 7 | Interior temperature, signal | 20E |
| 7 | Interior temperature, signal | 20G |
| 8 | Seat heater, actuation | 26C |
| 9 | Seat heater, status | 31H |
| 9 | Seat heater, status | 26G |
| 9 | Seat heater, status | 26J |
| 9 | Seat heater, status | 9H |
| 9 | Seat heater, status | 9F |
| A26/17 | Head unit | 2G |
| CAN B | Interior CAN | 13C |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 30H |
| CAN B | Interior CAN | 19H |
| CAN B | Interior CAN | 25J |
| CAN HMI | User interface CAN | 7F |
| CAN HMI | User interface CAN | 7K |
| CAN PER | Peripherals CAN | 7H |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 18G |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 21J |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 24H |
| Code 242 | Electrically adjustable front passenger seat with memory function | 18G |
| Code 242 | Electrically adjustable front passenger seat with memory function | 21K |
| Code 242 | Electrically adjustable front passenger seat with memory function | 24J |
| Code 275 | Electrically adjustable driver seat with memory function | 18G |
| Code 275 | Electrically adjustable driver seat with memory function | 21G |
| Code 275 | Electrically adjustable driver seat with memory function | 24J |
| Code 545 | Connect 5 (NTG6) | 1E |
| Code 547 | Connect 20 Entry (NTG6) | 1F |
| Code 548 | Connect 20 MID (NTG6) | 1F |
| Code 549 | Connect 20 HIGH (NTG6) | 1F |
| LIN B28 | Heater LIN | 19E |
| LIN B28 | Heater LIN | 25H |
| LIN B5 | Driver door LIN | 7B |
| LIN B5 | Driver door LIN | 36G |
| LIN B6 | Front passenger door LIN | 7C |
| LIN B6 | Front passenger door LIN | 36J |
| N10 | SAM control unit | 16F |
| N10 | SAM control unit | 27J |
| N127 | Drivetrain control unit | 2H |
| N166 | Head unit/instrument cluster control unit | 2E |
| N2/10 | Supplemental restraint system control unit | 2K |
| N25/17 | Front seat heater/seat ventilation control unit | 22F |
| N32/1 | Driver seat control unit | 22H |
| N32/2 | Front passenger seat control unit | 22K |
| N69/1 | Driver door control unit | 10B |
| N69/1 | Driver door control unit | 33G |
| N69/2 | Front passenger door control unit | 10D |
| N69/2 | Front passenger door control unit | 33J |
| N73 | Electronic ignition switch control unit | 10J |
| R13/1 | Left front seat cushion heater pad | 27C |
| R13/2 | Left front seat backrest heater pad | 27C |
| R13/3 | Right front seat cushion heater pad | 27D |
| R13/4 | Right front seat backrest heater pad | 27D |
| R24 | Adjustable seat cushion length heater pad, left front seat | 27E |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 27E |
| S51/1 | Driver seat climate control switch group | 2B |
| S51/1 | Driver seat climate control switch group | 38G |
| S51/2 | Front passenger seat climate control switch group | 2D |
| S51/2 | Front passenger seat climate control switch group | 38J |
| U351 | Valid without code (275) Electrically adjustable driver's seat with memory function | 18D |
| U351 | Valid without code (275) Electrically adjustable driver's seat with memory function | 24G |
