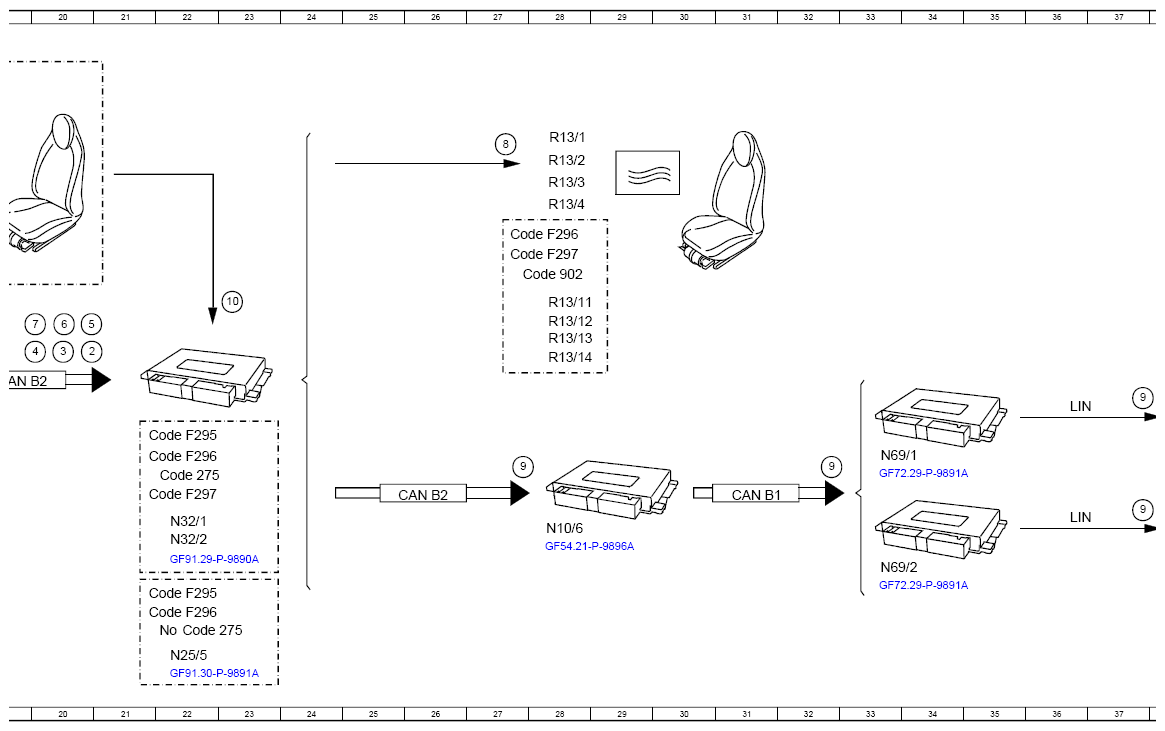

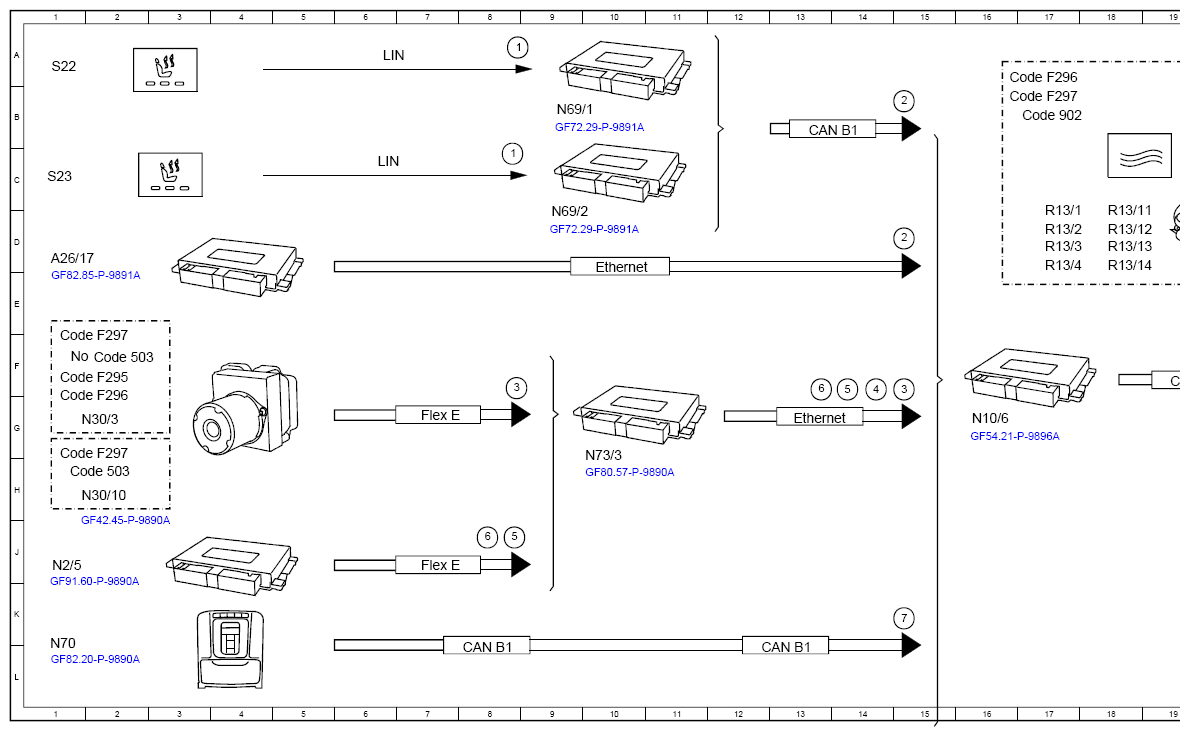

(Function Schematic For Actuating Front Seat Heating - PE91.30-P-2502-97I)
Model 294, 295, 296, 297 with code 401 (Climatised front seats)
Model 294, 295, 296, 297 with code 873 (Left and right drivers seat heating)
Model 294
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 8A |
| 1 | Seat climate control switch group, status | 8B |
| 10 | Heater pad temperature sensor, signal | 23D |
| 2 | Seat heater, request | 15B |
| 2 | Seat heater, request | 15D |
| 2 | Seat heater, request | 21F |
| 3 | Transmission mode, signal | 9F |
| 3 | Transmission mode, signal | 20F |
| 3 | Transmission mode, signal | 15F |
| 4 | Circuit 15, status | 20F |
| 4 | Circuit 15, status | 15F |
| 5 | Seat belt buckle switch, status | 21E |
| 5 | Seat belt buckle switch, status | 9J |
| 5 | Seat belt buckle switch, status | 14F |
| 6 | Crash, signal | 20E |
| 6 | Crash, signal | 8J |
| 6 | Crash, signal | 13F |
| 7 | Interior temperature, signal | 15K |
| 7 | Interior temperature, signal | 20E |
| 8 | Seat heater, actuation | 27B |
| 9 | Seat heater, status | 27G |
| 9 | Seat heater, status | 32H |
| 9 | Seat heater, status | 37G |
| 9 | Seat heater, status | 37J |
| A26/17 | Head unit | 1D |
| CAN B1 | CAN 1 for vehicle interior | 13B |
| CAN B1 | CAN 1 for vehicle interior | 31H |
| CAN B1 | CAN 1 for vehicle interior | 8L |
| CAN B1 | CAN 1 for vehicle interior | 13L |
| CAN B2 | CAN 2 for vehicle interior | 19F |
| CAN B2 | CAN 2 for vehicle interior | 26H |
| Code 275 | Memory Package (driver's seat, steering column and mirrors) | 22K |
| Code 275 | Memory Package (driver's seat, steering column and mirrors) | 22H |
| Code 503 | Remote-controlled parking | 2F |
| Code 503 | Remote-controlled parking | 1H |
| Code 902 | Front comfort seat heating | 27E |
| Code 902 | Front comfort seat heating | 17B |
| Code F295 | Model series 295 | 1F |
| Code F295 | Model series 295 | 21G |
| Code F295 | Model series 295 | 21K |
| Code F296 | Model series 296 | 27D |
| Code F296 | Model series 296 | 1G |
| Code F296 | Model series 296 | 21H |
| Code F296 | Model series 296 | 21K |
| Code F296 | Model series 296 | 16A |
| Code F297 | Model series 297 | 1F |
| Code F297 | Model series 297 | 1G |
| Code F297 | Model series 297 | 21H |
| Code F297 | Model series 297 | 16B |
| Code F297 | Model series 297 | 27D |
| Ethernet | Ethernet | 10D |
| Ethernet | Ethernet | 13G |
| Flex E | Chassis FlexRay | 7G |
| Flex E | Chassis FlexRay | 7J |
| LIN | Local Interconnect Network | 6A |
| LIN | Local Interconnect Network | 6C |
| LIN | Local Interconnect Network | 36J |
| LIN | Local Interconnect Network | 36G |
| N10/6 | Front signal acquisition and actuation module control unit | 16G |
| N10/6 | Front signal acquisition and actuation module control unit | 28J |
| N2/5 | Supplemental restraint system control unit | 1J |
| N25/5 | Driver seat heater control unit | 22L |
| N30/10 | Electronic Stability Program control unit | 1H |
| N30/3 | Electronic Stability Program control unit | 1G |
| N32/1 | Driver seat control unit | 22J |
| N32/2 | Front passenger seat control unit | 22J |
| N69/1 | Left front door control unit | 9B |
| N69/1 | Left front door control unit | 33H |
| N69/2 | Right front door control unit | 9D |
| N69/2 | Right front door control unit | 33J |
| N70 | Overhead control panel control unit | 1L |
| N73/3 | Electronic ignition switch control unit | 10H |
| R13/1 | Left front seat surface heat mat | 28B |
| R13/1 | Left front seat surface heat mat | 17D |
| R13/11 | Left front seat surface side bolster heater pad | 28E |
| R13/11 | Left front seat surface side bolster heater pad | 18D |
| R13/12 | Right front seat surface side bolsters heater pad | 28E |
| R13/12 | Right front seat surface side bolsters heater pad | 18D |
| R13/13 | Left front seat backrest side bolsters heater pad | 28F |
| R13/13 | Left front seat backrest side bolsters heater pad | 18D |
| R13/14 | Right front seat backrest side bolster heater pad | 28F |
| R13/14 | Right front seat backrest side bolster heater pad | 18D |
| R13/2 | Left front seat backrest heat mat | 28C |
| R13/2 | Left front seat backrest heat mat | 17D |
| R13/3 | Right front seat surface heat mat | 28C |
| R13/3 | Right front seat surface heat mat | 17D |
| R13/4 | Right front seat backrest heat mat | 28C |
| R13/4 | Right front seat backrest heat mat | 17D |
| S22 | Left front seat adjustment switch group | 1A |
| S22 | Left front seat adjustment switch group | 38G |
| S23 | Right front seat adjustment switch group | 1C |
| S23 | Right front seat adjustment switch group | 38J |
