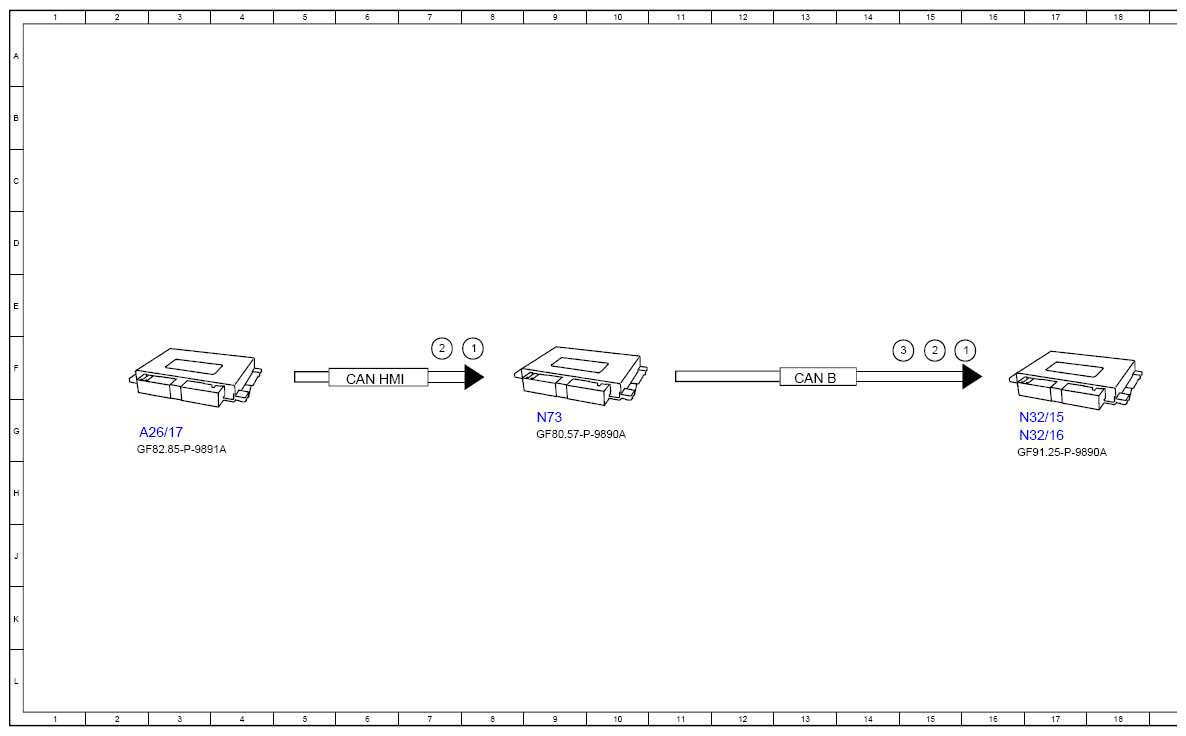

(Function Schematic For Actuating Front Multicontour Seat - PE91.25-P-2501-97C)
Model 293 with code 409 (Left and right front multicontour seat)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multicontour seat adjustment, request | 16F |
| 1 | Multicontour seat adjustment, request | 8F |
| 2 | Massage function, request | 7F |
| 2 | Massage function, request | 15F |
| 3 | Circuit 15, status | 15F |
| 4 | Compressed air supply, request | 21F |
| A26/17 | Head unit | 3G |
| CAN B | Interior CAN | 13F |
| CAN HMI | User interface CAN | 6F |
| M25/8 | Driver multicontour seat pneumatic pump | 22G |
| M25/9 | Front passenger multicontour seat pneumatic pump | 22G |
| N32/15 | Driver multicontour seat control unit | 17G |
| N32/16 | Front passenger multicontour seat control unit | 17G |
| N73 | Ignition lock control unit | 9G |
