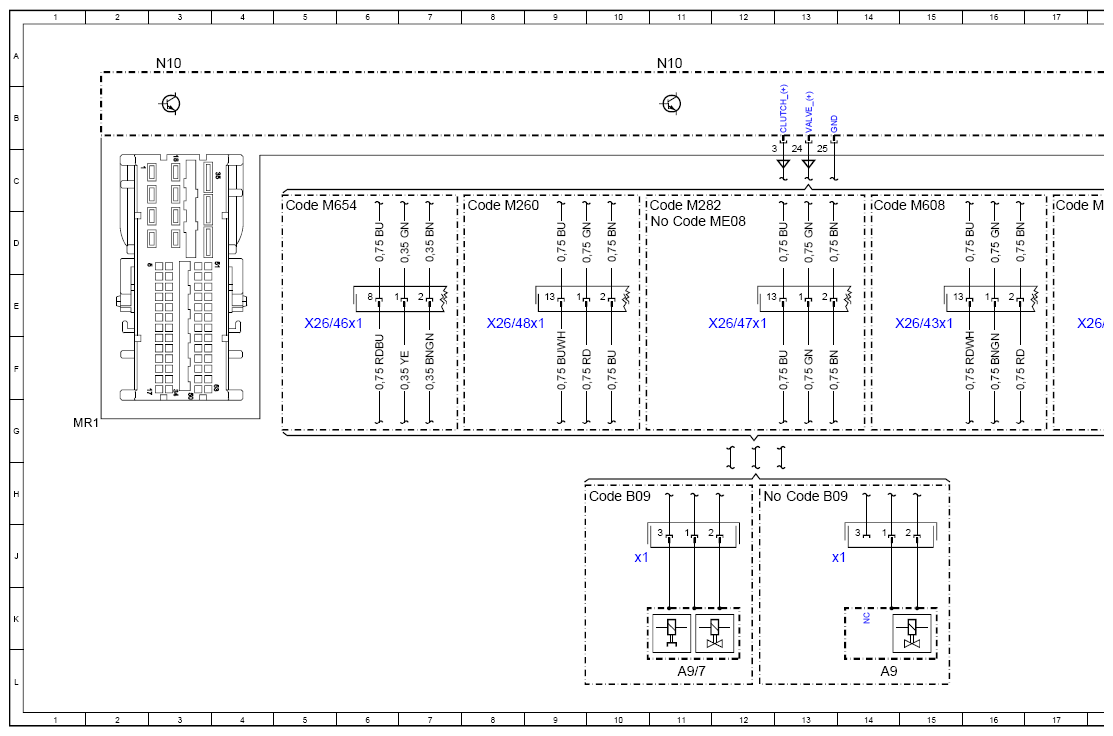

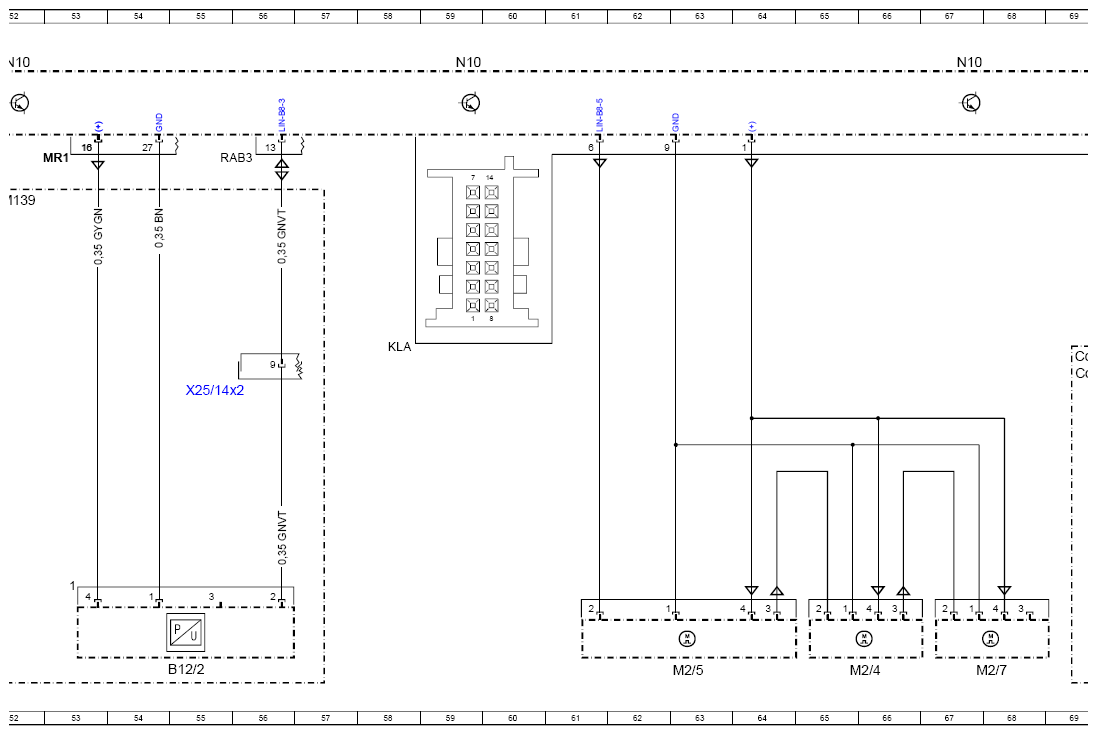

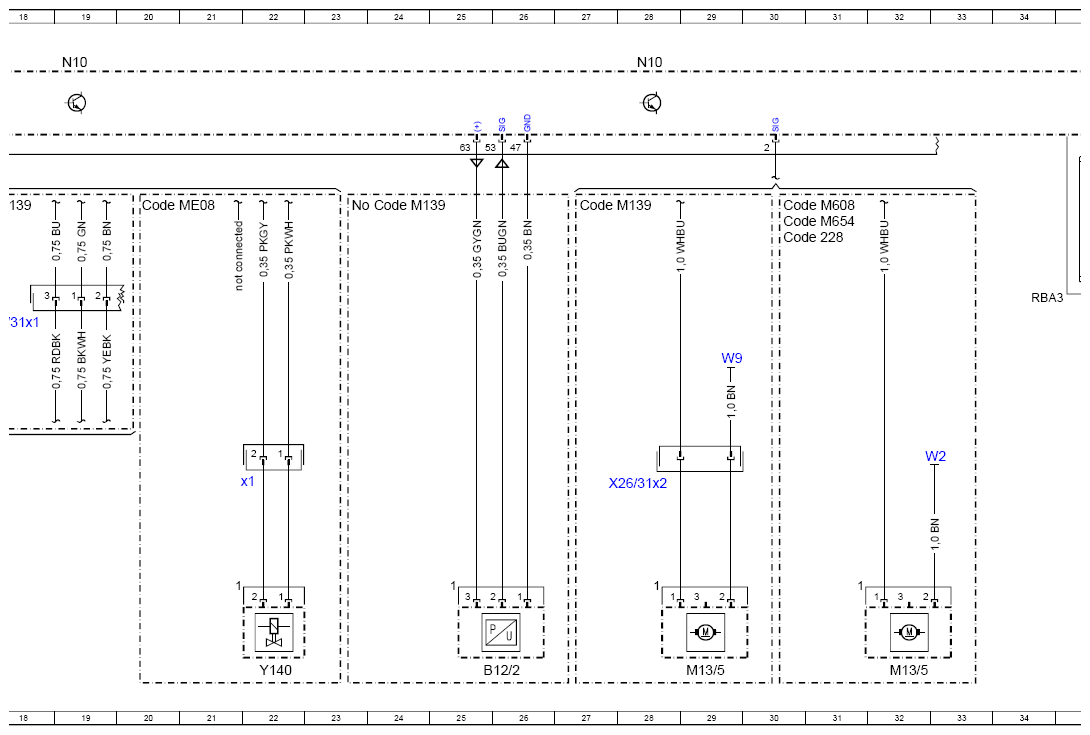

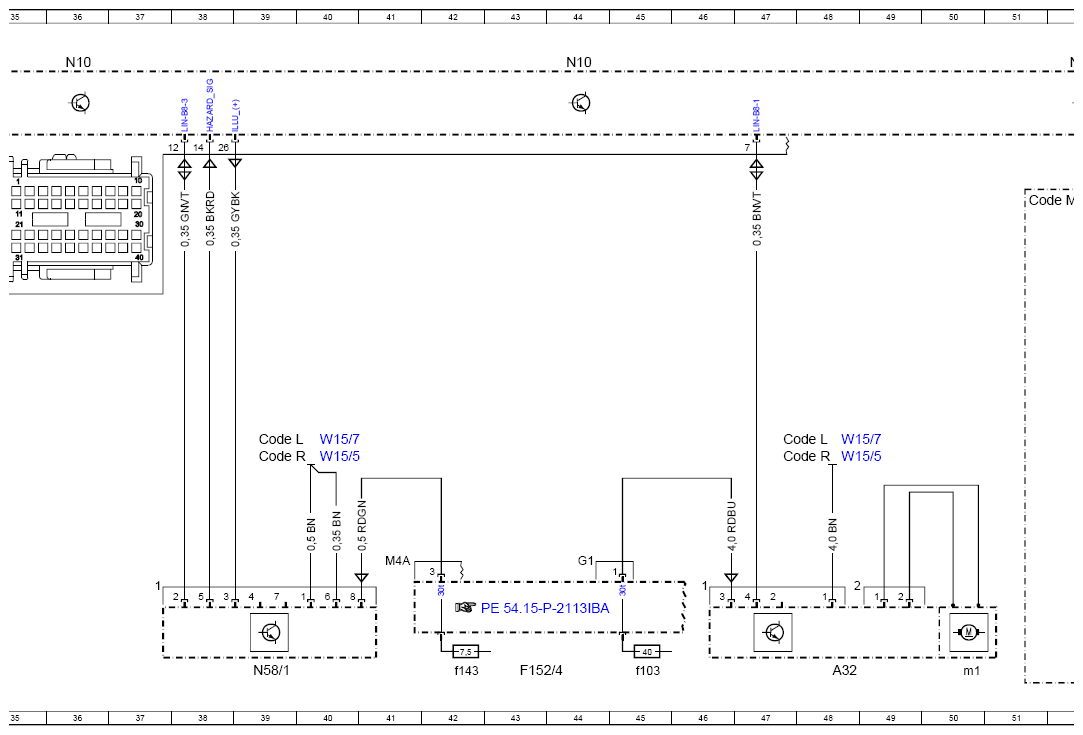

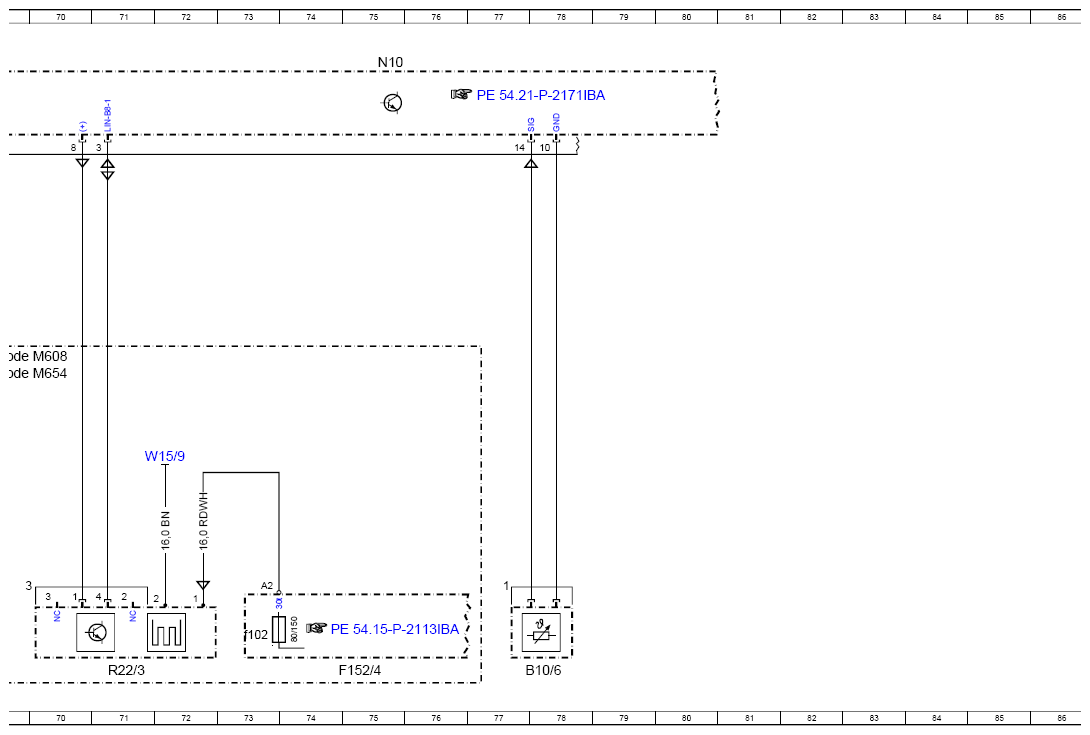

Wiring Diagram Of Air Conditioning - PE83.30-P-2000-97IBA
Model 177
with code 579 (Single-zone air conditioning)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| A32 | AC housing | 48L |
| A32m1 | Electronic blower motor | 50L |
| A9 | Refrigerant compressor | 14L |
| A9/7 | Refrigerant compressor with magnetic clutch | 11L |
| A9/7x1 | Electrical connector for refrigerant compressor with magnetic clutch | 10J |
| A9x1 | Refrigerant compressor electrical connector | 14J |
| B10/6 | Evaporator temperature sensor | 78L |
| B12/2 | Refrigerant pressure sensor | 55L |
| B12/2 | Refrigerant pressure sensor | 26L |
| Code 228 | Stationary heater | 30D |
| Code B09 | Refrigerant compressor with magnetic clutch | 13H |
| Code B09 | Refrigerant compressor with magnetic clutch | 10H |
| Code L | LEFT-HAND DRIVE | 39G |
| Code L | LEFT-HAND DRIVE | 47G |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 17C |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 27C |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 51C |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 24C |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 8C |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 11C |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 69F |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 14C |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 30C |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 69F |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 5C |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 30D |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 11D |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 20C |
| Code R | RIGHT-HAND DRIVE | 39G |
| Code R | RIGHT-HAND DRIVE | 47G |
| F152/4 | Vehicle interior fuse and relay module | 43L |
| F152/4 | Vehicle interior fuse and relay module | 75L |
| F152/4f102 | Fuse 102 | 73K |
| F152/4f103 | Fuse 103 | 45L |
| F152/4f143 | Fuse 143 | 42L |
| M13/5 | Coolant circulation pump | 29L |
| M13/5 | Coolant circulation pump | 32L |
| M2/4 | Central air distribution actuator motor | 65L |
| M2/5 | Fresh air/air recirculation flap actuator motor | 63L |
| M2/7 | Right blending air flap actuator | 68L |
| N10 | Central control module | 3A |
| N10 | Central control module | 11A |
| N10 | Central control module | 19A |
| N10 | Central control module | 28A |
| N10 | Central control module | 36A |
| N10 | Central control module | 44A |
| N10 | Central control module | 59A |
| N10 | Central control module | 67A |
| N10 | Central control module | 75A |
| N10 | Central control module | 52A |
| N58/1 | Climate control operating unit | 39L |
| R22/3 | PTC heater booster | 71L |
| W15/5 | Left front footwell ground point | 40G |
| W15/5 | Left front footwell ground point | 48G |
| W15/7 | Right front footwell ground point | 40G |
| W15/7 | Right front footwell ground point | 48G |
| W15/9 | Ground point/PTC heater booster | 72H |
| W2 | Right front engine compartment ground point | 32G |
| W9 | Left front ground point | 29F |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 55F |
| X26/31x1 | Engine/engine compartment electrical connector | 18E |
| X26/31x2 | Engine wiring harness/engine compartment electrical connector | 28H |
| X26/43x1 | Engine wiring harness/engine compartment electrical connector | 15E |
| X26/46x1 | Engine wiring harness/engine compartment electrical connector | 5E |
| X26/47x1 | Engine wiring harness/engine compartment electrical connector | 12E |
| X26/48x1 | Engine wiring harness/engine compartment electrical connector | 8E |
| Y140 | High-voltage battery cooling system switchover valve | 22L |
| Y140x1 | High-voltage battery cooling switchover valve electrical connector | 22H |
