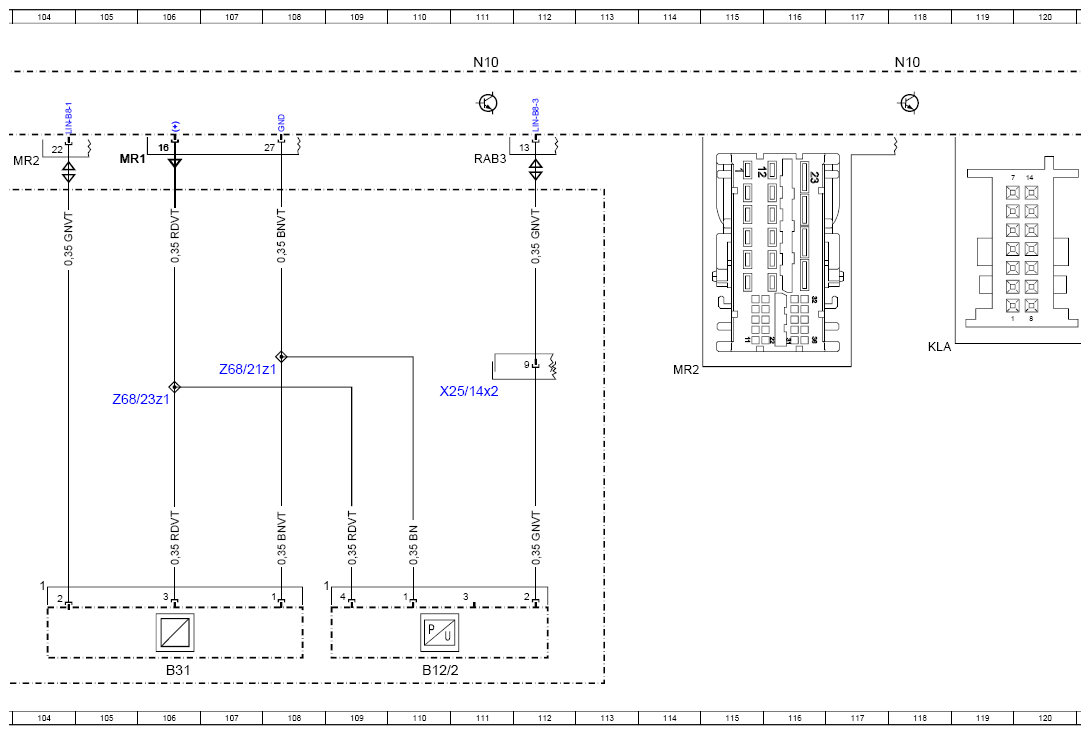

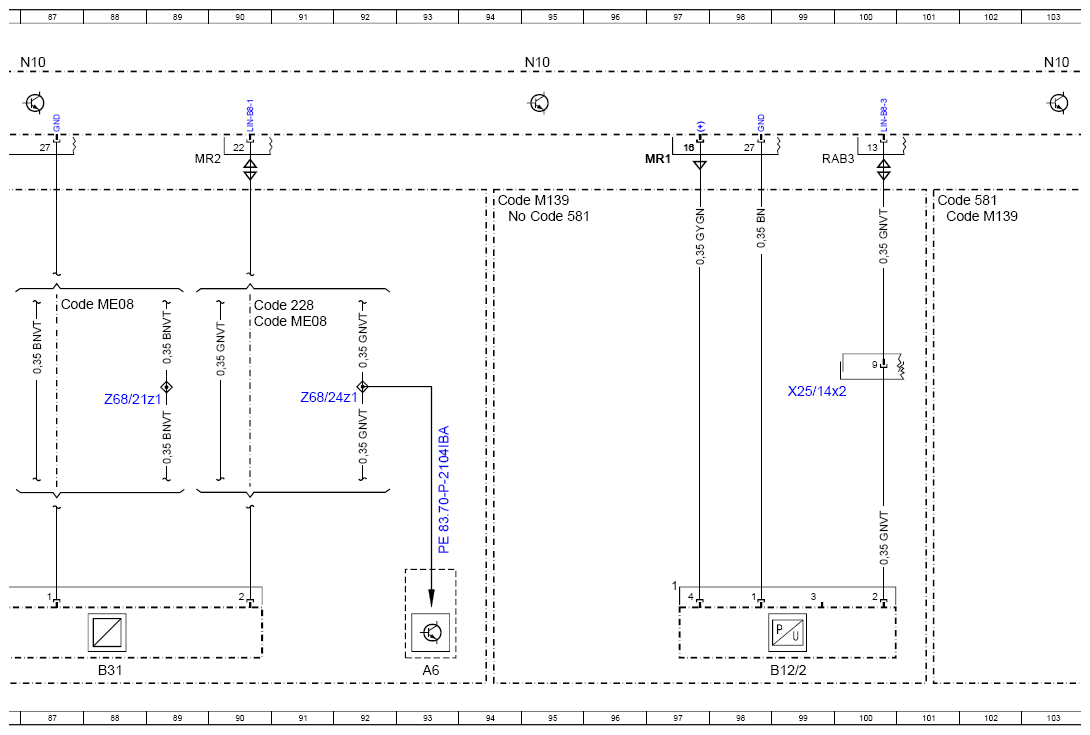

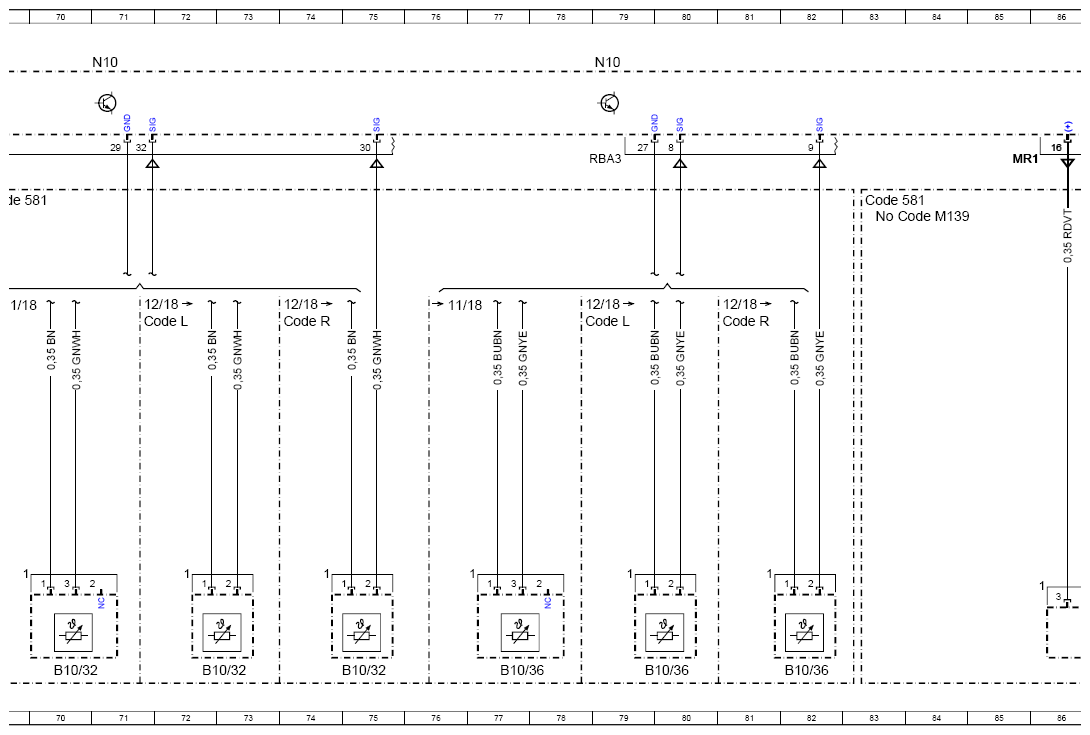

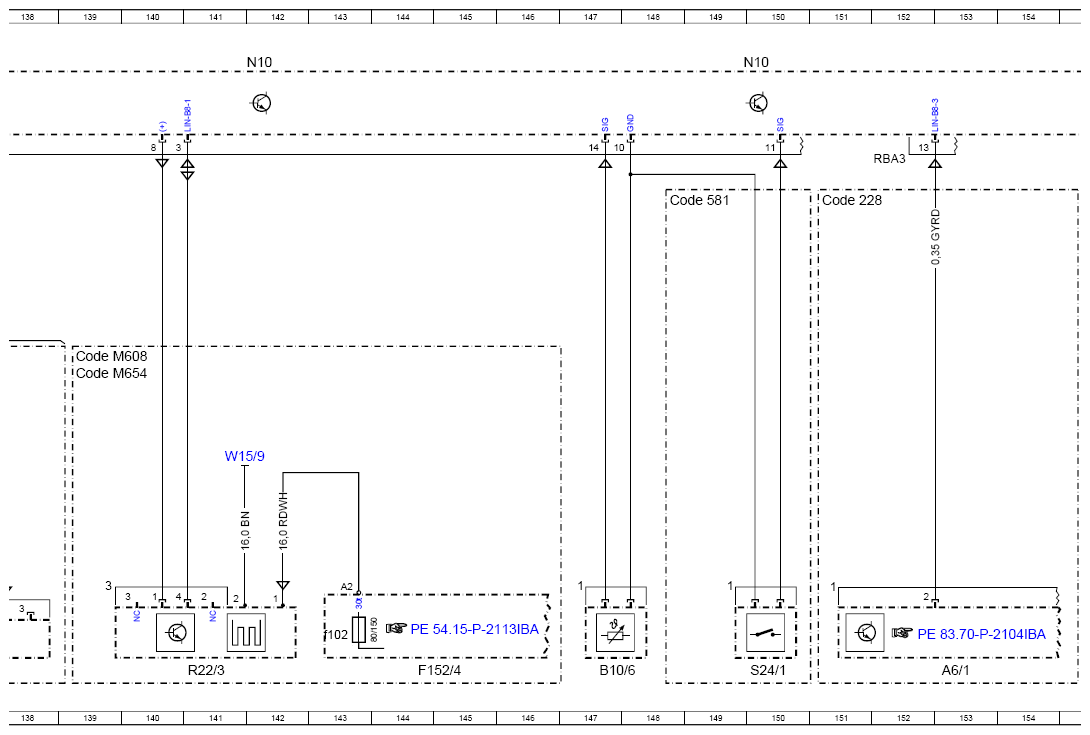

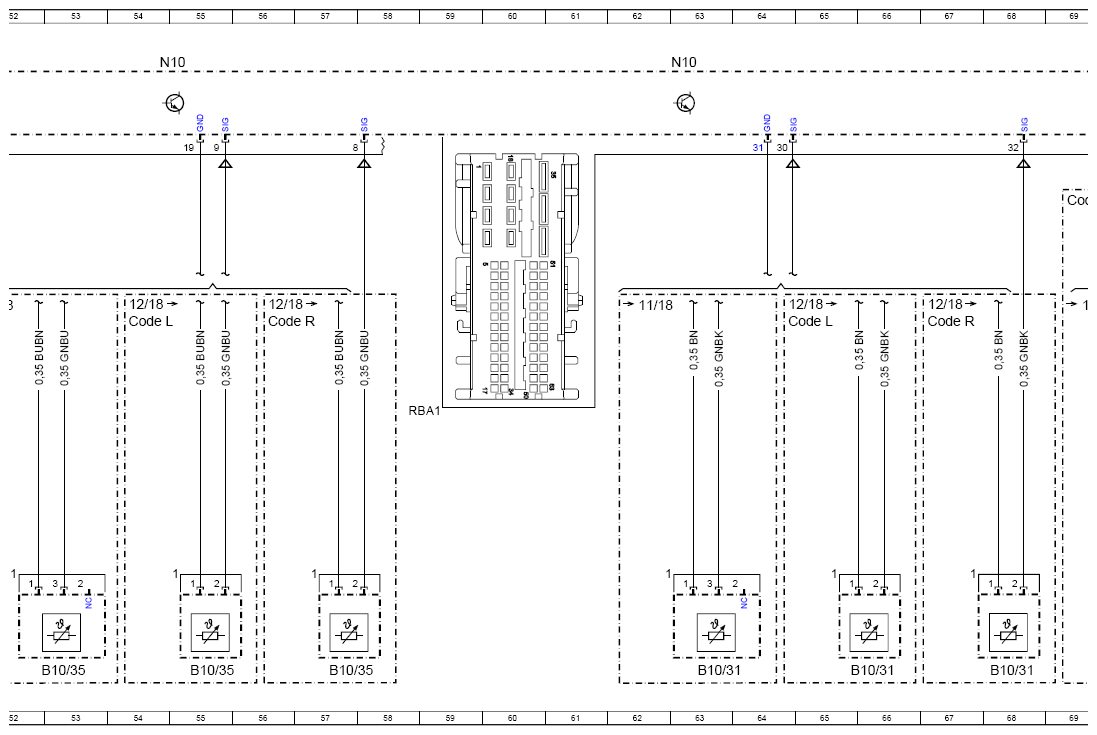

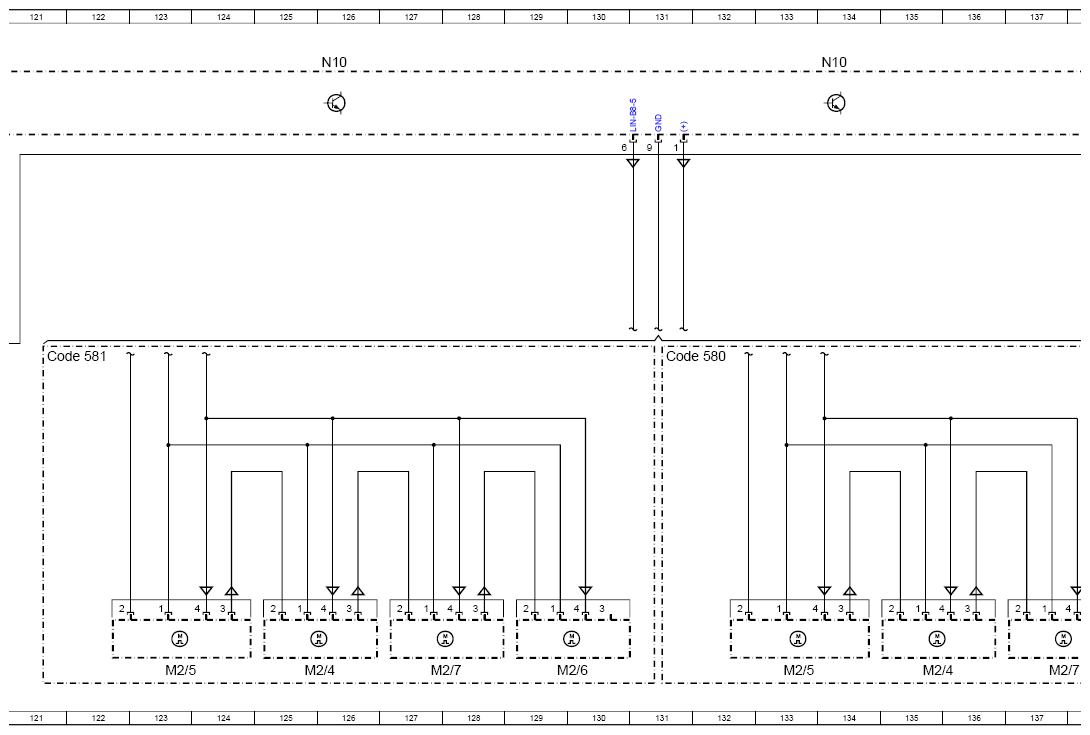

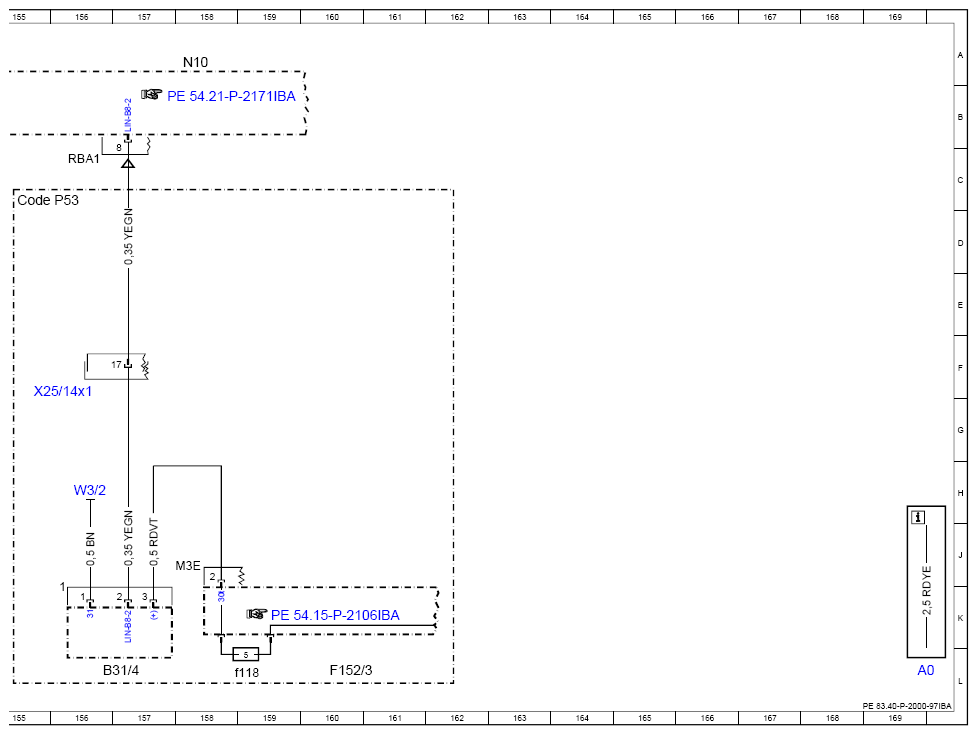

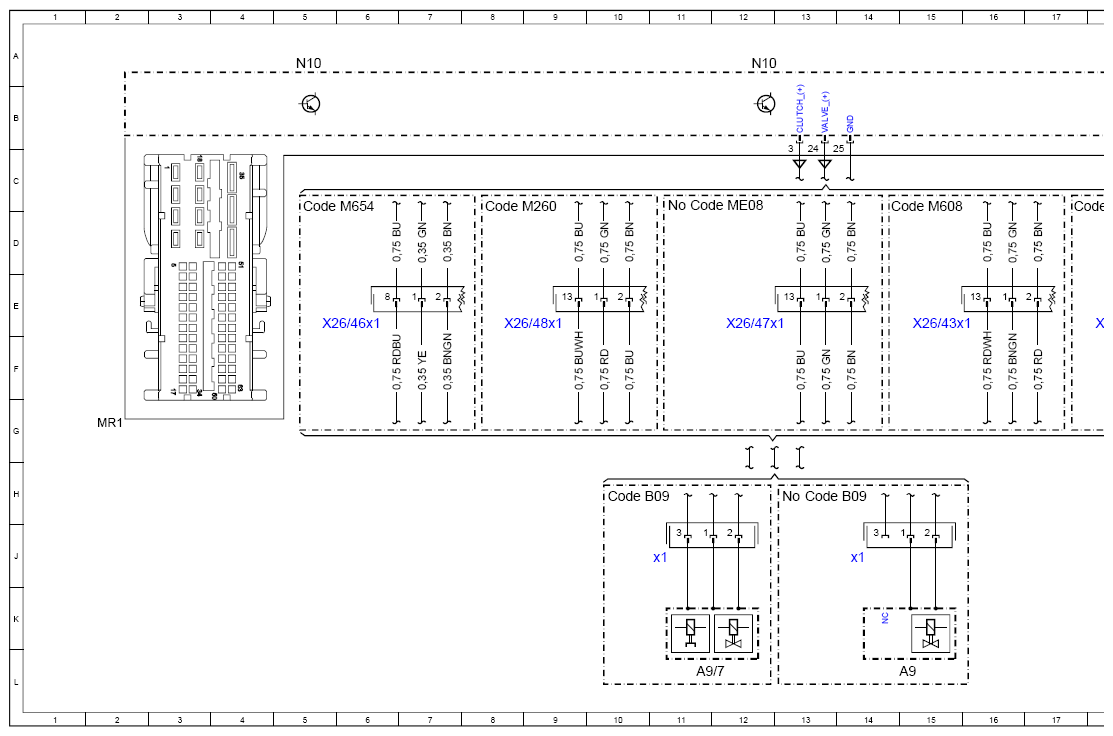

Wiring Diagram For Automatic Air Conditioning (AAC (KLA)) - PE83.40-P-2000-97IBA
Model 177
with code 580 (Air-conditioning system)
Model 177
with code 581 (Automatic air conditioning)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 169L |
| A32 | AC housing | 48L |
| A32m1 | Electronic blower motor | 50L |
| A6 | Stationary heater unit | 93L |
| A6/1 | Stationary heater radio remote control receiver | 153L |
| A9 | Refrigerant compressor | 15L |
| A9/7 | Refrigerant compressor with magnetic clutch | 11L |
| A9/7x1 | Electrical connector for refrigerant compressor with magnetic clutch | 11J |
| A9x1 | Refrigerant compressor electrical connector | 14J |
| B10/31 | Left side air outlet temperature sensor | 68L |
| B10/31 | Left side air outlet temperature sensor | 66L |
| B10/31 | Left side air outlet temperature sensor | 63L |
| B10/32 | Right side air outlet temperature sensor | 70L |
| B10/32 | Right side air outlet temperature sensor | 75L |
| B10/32 | Right side air outlet temperature sensor | 72L |
| B10/35 | Left footwell air outlet temperature sensor | 57L |
| B10/35 | Left footwell air outlet temperature sensor | 55L |
| B10/35 | Left footwell air outlet temperature sensor | 53L |
| B10/36 | Right footwell air outlet temperature sensor | 82L |
| B10/36 | Right footwell air outlet temperature sensor | 80L |
| B10/36 | Right footwell air outlet temperature sensor | 77L |
| B10/6 | Evaporator temperature sensor | 147L |
| B12/2 | Refrigerant pressure sensor | 26L |
| B12/2 | Refrigerant pressure sensor | 99L |
| B12/2 | Refrigerant pressure sensor | 110L |
| B31 | Air quality sensor | 88L |
| B31 | Air quality sensor | 106L |
| B31/4 | Fine particle sensor | 156L |
| Code 228 | Stationary heater | 30E |
| Code 228 | Stationary heater | 90E |
| Code 228 | Stationary heater | 151C |
| Code 494 | USA version | 31D |
| Code 580 | Air conditioning | 131F |
| Code 581 | Automatic air conditioning | 30C |
| Code 581 | Automatic air conditioning | 69C |
| Code 581 | Automatic air conditioning | 121F |
| Code 581 | Automatic air conditioning | 148C |
| Code 581 | Automatic air conditioning | 83C |
| Code 581 | Automatic air conditioning | 95D |
| Code 581 | Automatic air conditioning | 101C |
| Code B09 | Refrigerant compressor with magnetic clutch | 13H |
| Code B09 | Refrigerant compressor with magnetic clutch | 10H |
| Code L | LEFT-HAND DRIVE | 71E |
| Code L | LEFT-HAND DRIVE | 39G |
| Code L | LEFT-HAND DRIVE | 47G |
| Code L | LEFT-HAND DRIVE | 54E |
| Code L | LEFT-HAND DRIVE | 64E |
| Code L | LEFT-HAND DRIVE | 78E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 17C |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 27C |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 24C |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 83D |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 94C |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 101D |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 8C |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 30D |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 14C |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 139F |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 30D |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 5C |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 139F |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 11C |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 20C |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 90E |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 87E |
| Code P53 | Air purification package | 155C |
| Code R | RIGHT-HAND DRIVE | 39G |
| Code R | RIGHT-HAND DRIVE | 47G |
| Code R | RIGHT-HAND DRIVE | 56E |
| Code R | RIGHT-HAND DRIVE | 67E |
| Code R | RIGHT-HAND DRIVE | 74E |
| Code R | RIGHT-HAND DRIVE | 81E |
| F152/3 | Engine compartment fuse and relay module | 160L |
| F152/3f52 | Fuse 52 | 159L |
| F152/4 | Vehicle interior fuse and relay module | 43L |
| F152/4 | Vehicle interior fuse and relay module | 144L |
| F152/4f102 | Fuse 102 | 143K |
| F152/4f103 | Fuse 103 | 45L |
| F152/4f143 | Fuse 143 | 42L |
| M13/5 | Coolant circulation pump | 33L |
| M13/5 | Coolant circulation pump | 29L |
| M2/4 | Central air distribution actuator motor | 125L |
| M2/4 | Central air distribution actuator motor | 135L |
| M2/5 | Fresh air/air recirculation flap actuator motor | 123L |
| M2/5 | Fresh air/air recirculation flap actuator motor | 133L |
| M2/6 | Left blending air flap actuator | 129L |
| M2/7 | Right blending air flap actuator | 127L |
| M2/7 | Right blending air flap actuator | 137L |
| N10 | Central control module | 5A |
| N10 | Central control module | 12A |
| N10 | Central control module | 21A |
| N10 | Central control module | 31A |
| N10 | Central control module | 39A |
| N10 | Central control module | 46A |
| N10 | Central control module | 54A |
| N10 | Central control module | 63A |
| N10 | Central control module | 71A |
| N10 | Central control module | 79A |
| N10 | Central control module | 118A |
| N10 | Central control module | 126A |
| N10 | Central control module | 134A |
| N10 | Central control module | 142A |
| N10 | Central control module | 150A |
| N10 | Central control module | 158A |
| N10 | Central control module | 87A |
| N10 | Central control module | 95A |
| N10 | Central control module | 103A |
| N10 | Central control module | 111A |

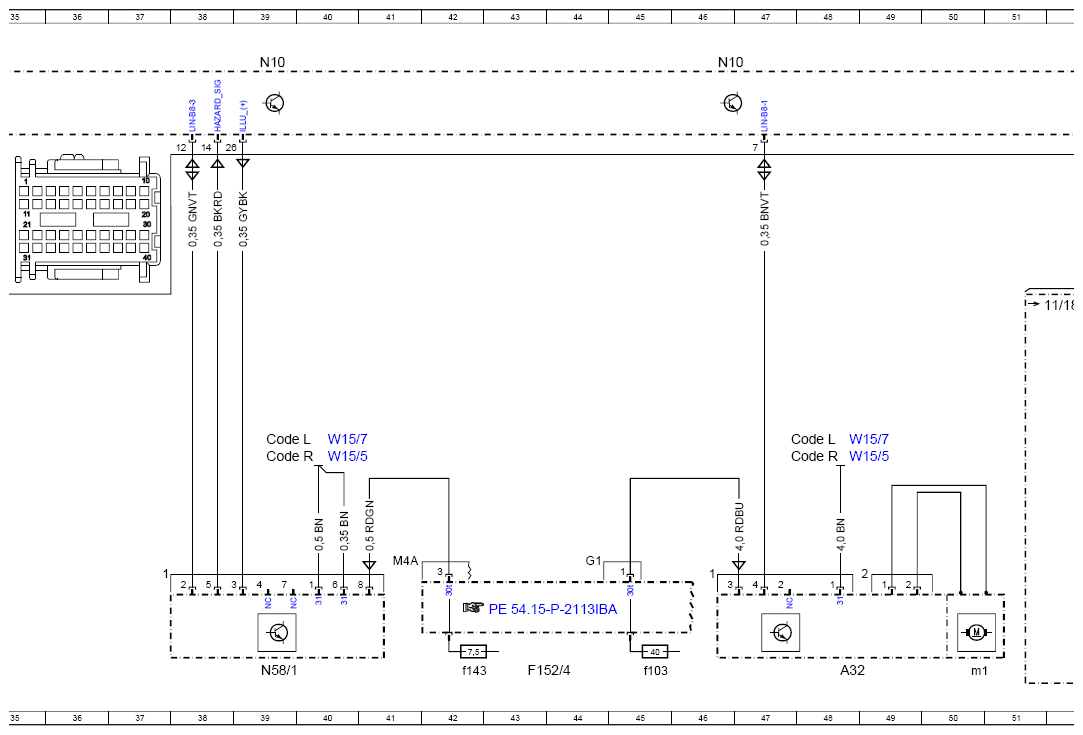

| N58/1 | Climate control operating unit | 39L |
| R22/3 | PTC heater booster | 141L |
| S24/1 | Central air distribution position detection microswitch | 150L |
| W15/5 | Left front footwell ground point | 40G |
| W15/5 | Left front footwell ground point | 48G |
| W15/7 | Right front footwell ground point | 40G |
| W15/7 | Right front footwell ground point | 48G |
| W15/9 | Ground point/PTC heater booster | 141H |
| W2 | Right front engine compartment ground point | 33G |
| W3/2 | Left front wheel arch ground point | 156H |
| W9 | Left front ground point | 29F |
| X25/14x1 | Right engine compartment/vehicle interior electrical connector | 156F |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 99F |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 111F |
| X26/31x1 | Engine/engine compartment electrical connector | 18E |
| X26/31x2 | Engine wiring harness/engine compartment electrical connector | 28H |
| X26/43x1 | Engine wiring harness/engine compartment electrical connector | 15E |
| X26/46x1 | Engine wiring harness/engine compartment electrical connector | 6E |
| X26/47x1 | Engine wiring harness/engine compartment electrical connector | 12E |
| X26/48x1 | Engine wiring harness/engine compartment electrical connector | 9E |

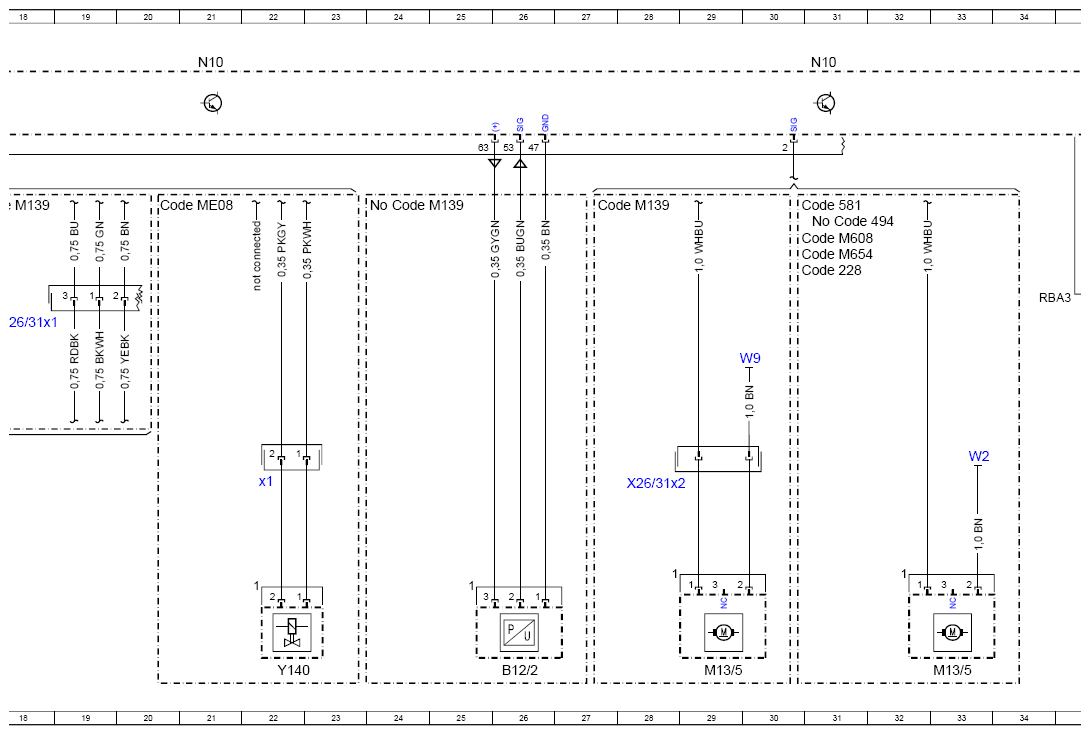

| Y140 | High-voltage battery cooling system switchover valve | 22L |
| Y140x1 | High-voltage battery cooling switchover valve electrical connector | 22H |
| Z68/21z1 | AC actuator motors LIN ground connection end sleeve | 88G |
| Z68/21z1 | AC actuator motors LIN ground connection end sleeve | 107F |
| Z68/23z1 | Connector sleeve, 12V climate control LIN 2 | 106G |
| Z68/24z1 | LIN B8-1 connector sleeve | 91G |
