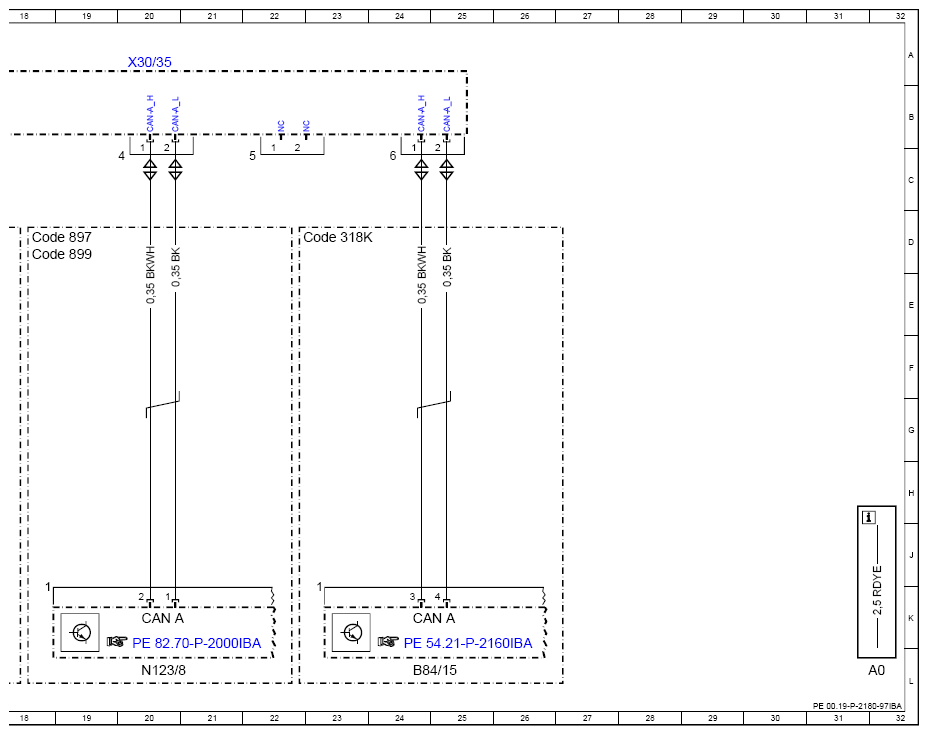

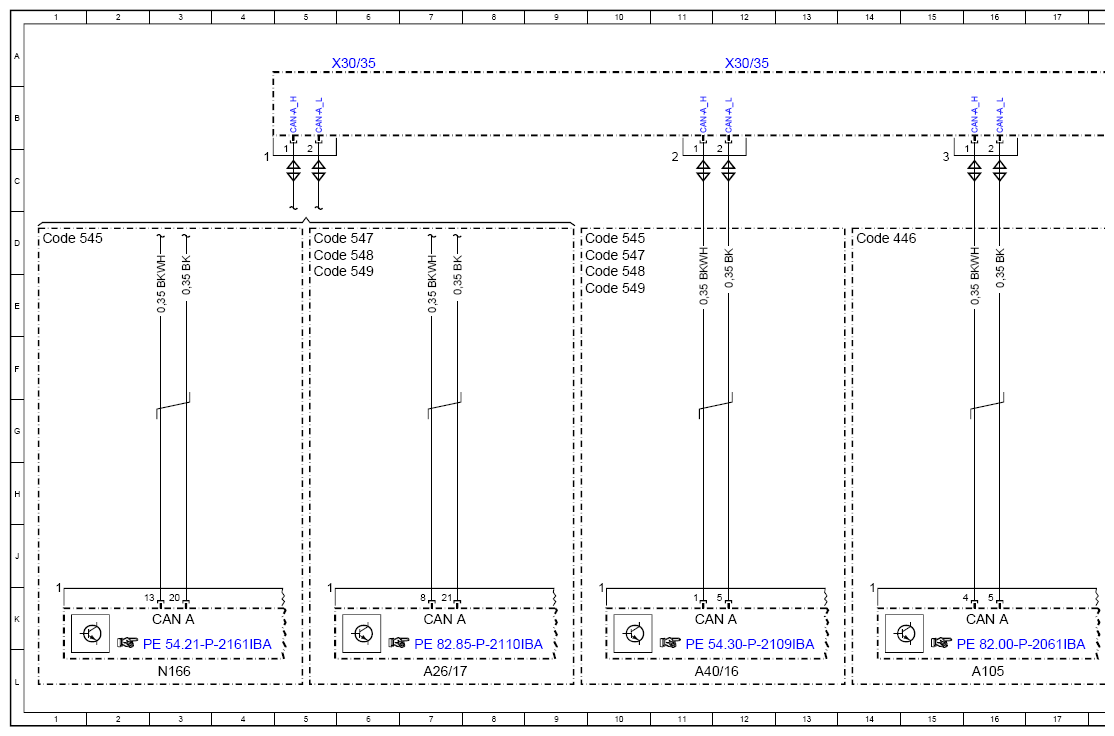

Wiring Diagram Of Telematics CAN - PE00.19-P-2180-97IBA
Model 177
Potential distributor X30/35 (CAN A)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A105 | Touchpad/lower control panel | 16L |
| A26/17 | Head unit | 7L |
| A40/16 | Head unit/instrument cluster display cluster | 11L |
| B84/15 | Hand motion sensor | 24L |
| CAN A | Telematics CAN | 24K |
| CAN A | Telematics CAN | 3K |
| CAN A | Telematics CAN | 7K |
| CAN A | Telematics CAN | 11K |
| CAN A | Telematics CAN | 16K |
| CAN A | Telematics CAN | 20K |
| Code 318K | Front gesture control | 22D |
| Code 446 | Touchpad only | 14D |
| Code 545 | Connect 5 (NTG6) | 1D |
| Code 545 | Connect 5 (NTG6) | 9D |
| Code 547 | Connect 20 Entry (NTG6) | 5D |
| Code 547 | Connect 20 Entry (NTG6) | 9D |
| Code 548 | Connect 20 MID (NTG6) | 5D |
| Code 548 | Connect 20 MID (NTG6) | 9E |
| Code 549 | Connect 20 HIGH (NTG6) | 5E |
| Code 549 | Connect 20 HIGH (NTG6) | 9E |
| Code 897 | Wireless mobile phone charging | 18D |
| Code 899 | Wireless phone charging at front and antenna | 18D |
| N123/8 | Front mobile phone cradle control unit | 20L |
| N166 | Head unit/instrument cluster control unit | 3L |
| X30/35 | Telematics CAN potential distributor (CAN A) | 6A |
| X30/35 | Telematics CAN potential distributor (CAN A) | 12A |
| X30/35 | Telematics CAN potential distributor (CAN A) | 20A |
