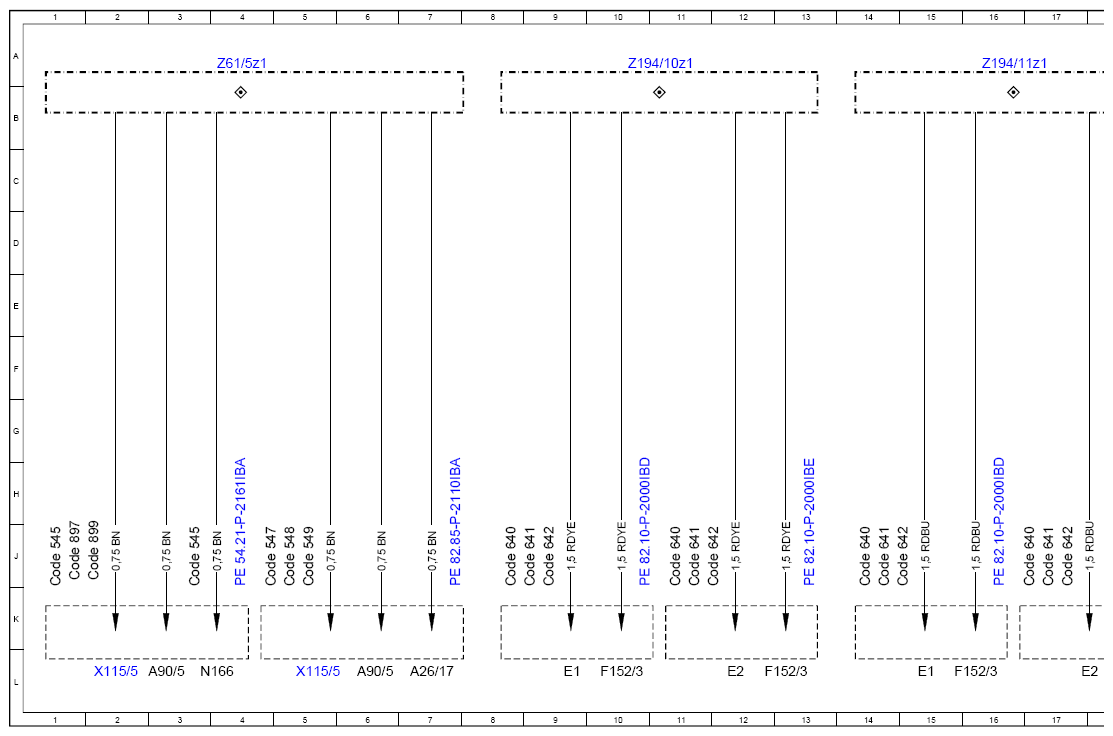

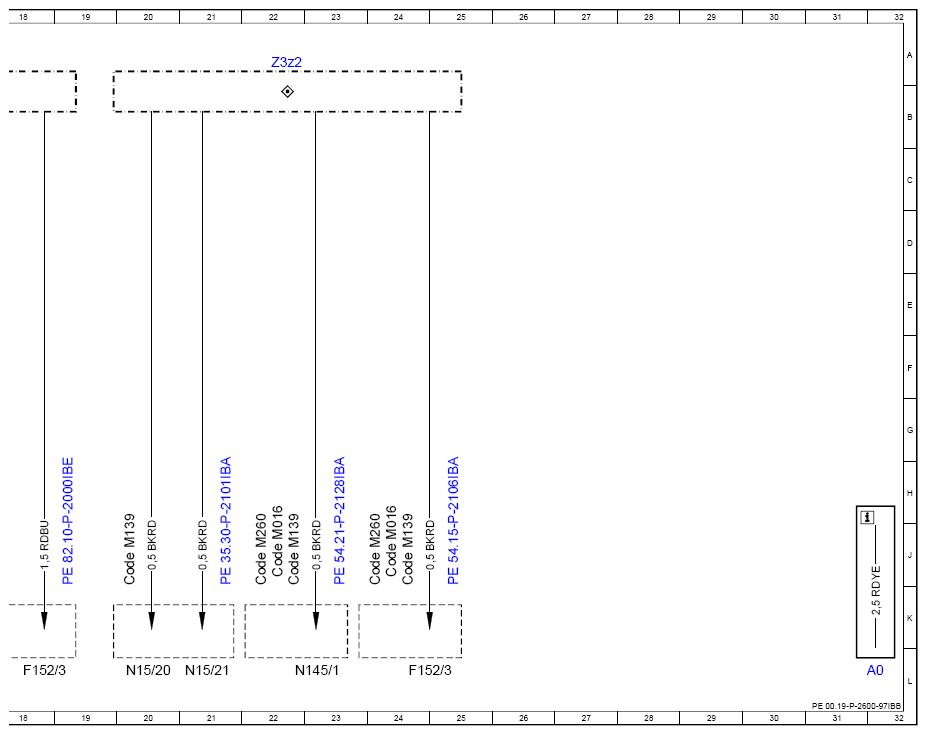

Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97IBB
Model 177
Z3/2, Z61/5z1, Z194/10z1, Z194/11z1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A26/17 | Head unit | 7L |
| A90/5 | Multimedia connection unit | 3L |
| A90/5 | Multimedia connection unit | 6L |
| Code 545 | Connect 5 (NTG6) | 1J |
| Code 545 | Connect 5 (NTG6) | 3J |
| Code 547 | Connect 20 Entry (NTG6) | 5J |
| Code 548 | Connect 20 MID (NTG6) | 5J |
| Code 549 | Connect 20 HIGH (NTG6) | 5J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 8J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 11J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 14J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 17J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 9J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 11J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 17J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 14J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 9J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 12J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 17J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 15J |
| Code 897 | Wireless mobile phone charging | 1J |
| Code 899 | Wireless phone charging at front and antenna | 2J |
| Code M016 | Uprated high-performance engine | 22J |
| Code M016 | Uprated high-performance engine | 24J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 20J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 22J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 24J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 22J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 24J |
| E1 | Left front lamp unit | 9L |
| E1 | Left front lamp unit | 15L |
| E2 | Right front lamp unit | 12L |
| E2 | Right front lamp unit | 17L |
| F152/3 | Engine compartment fuse and relay module | 10L |
| F152/3 | Engine compartment fuse and relay module | 13L |
| F152/3 | Engine compartment fuse and relay module | 18L |
| F152/3 | Engine compartment fuse and relay module | 16L |
| F152/3 | Engine compartment fuse and relay module | 24L |
| N145/1 | Drive unit control unit | 23L |
| N15/20 | Left rear axle differential control unit | 20L |
| N15/21 | Right rear axle differential control unit | 21L |
| N166 | Head unit/instrument cluster control unit | 3L |
| X115/5 | Front center console USB connector | 2L |
| X115/5 | Front center console USB connector | 5L |
| Z194/10z1 | Terminal 30t connector sleeve | 10A |
| Z194/11z1 | Terminal 30t connector sleeve | 16A |
| Z3z2 | Tml. 15 connector sleeve | 22A |
| Z61/5z1 | Ground connection connector sleeve | 4A |
