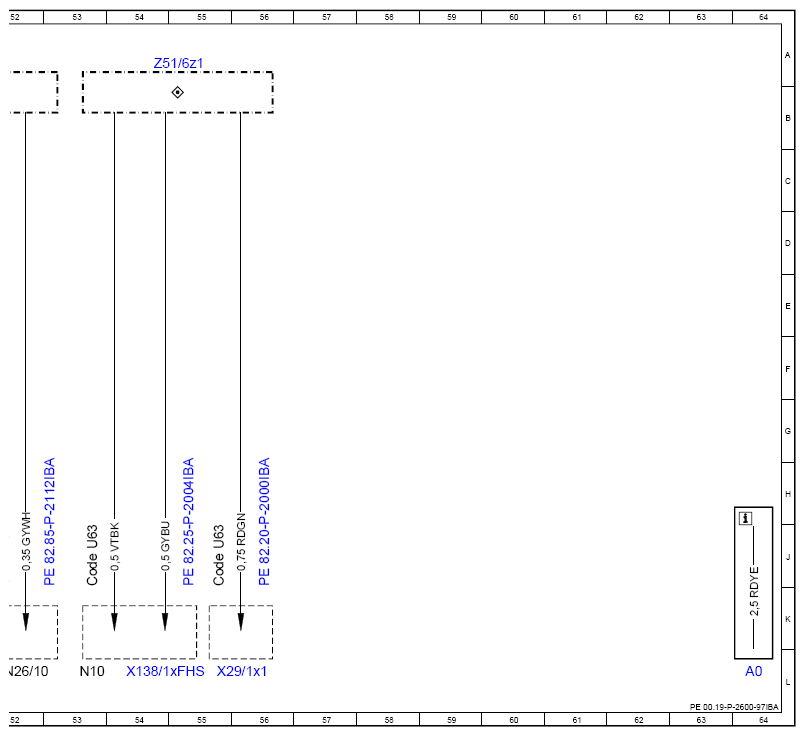

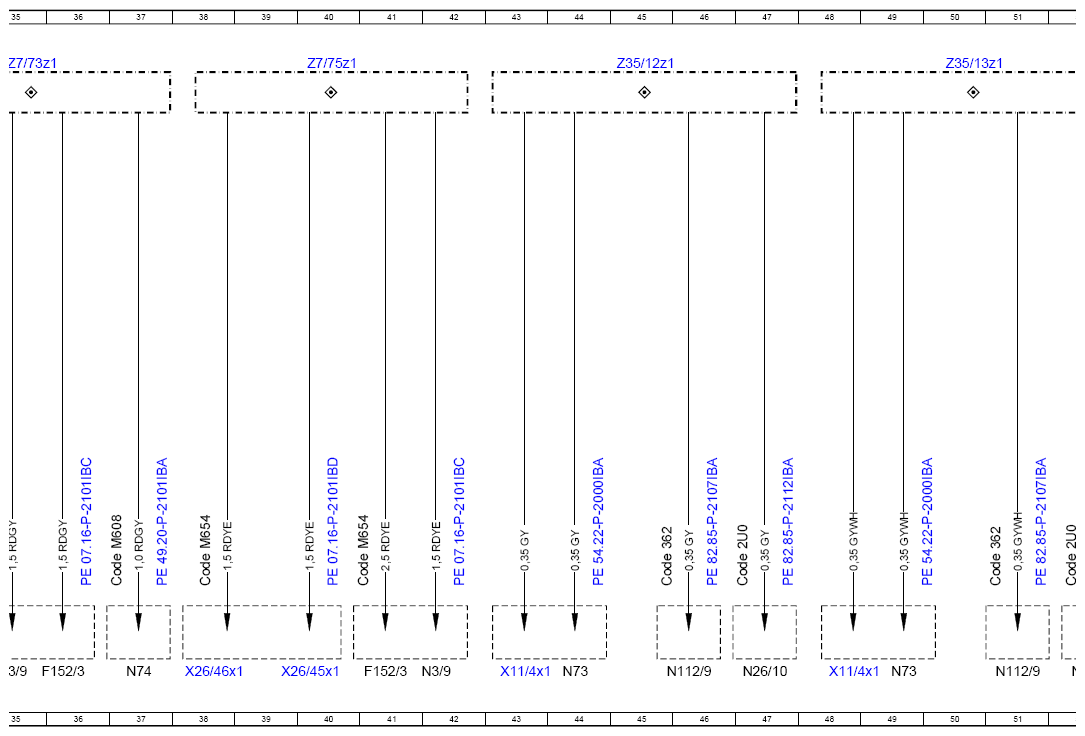

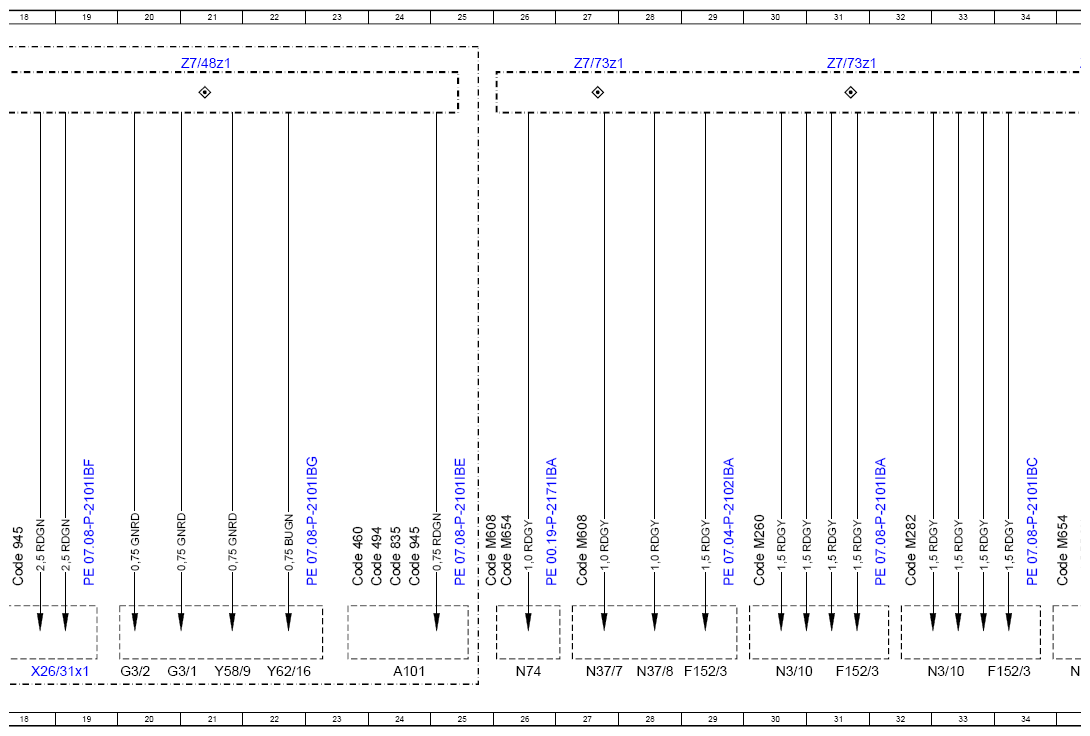

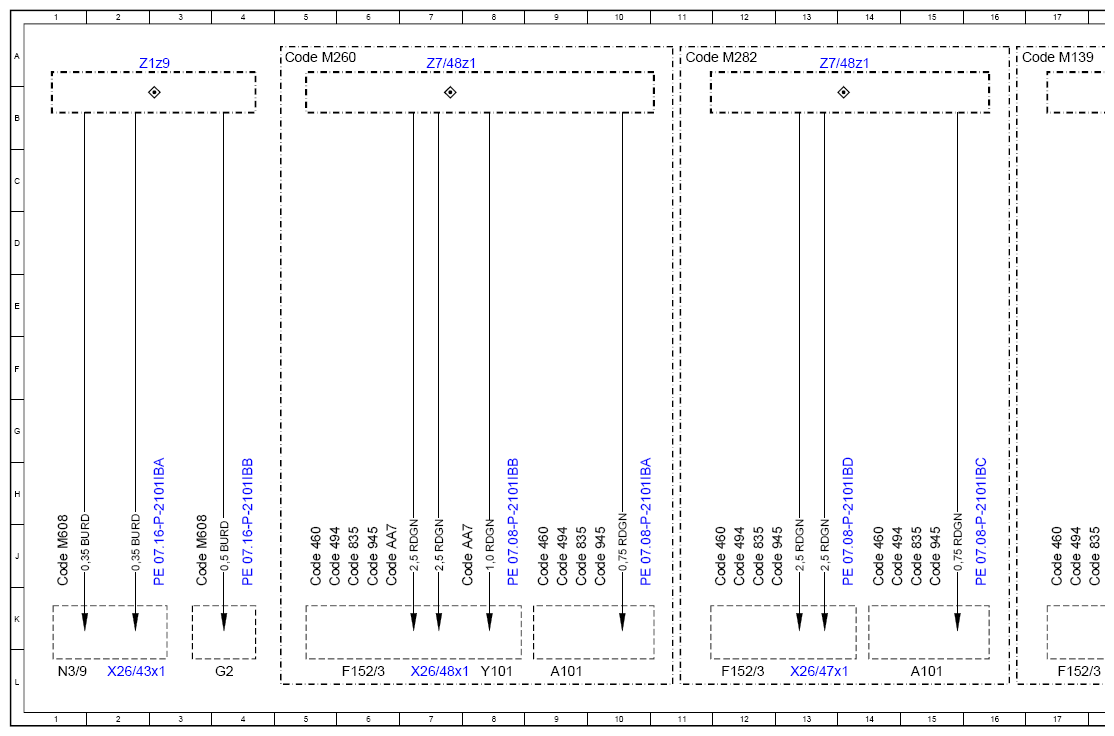

Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97IBA
Model 177
Z1z9, Z7/48z1, Z7/73z1, Z35/12z1, Z35/13z1, Z51/6z1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A101 | Fuel tank diagnostic module | 9L |
| A101 | Fuel tank diagnostic module | 15L |
| A101 | Fuel tank diagnostic module | 24L |
| Code 2U0 | car2go scopes | 47J |
| Code 2U0 | car2go scopes | 52J |
| Code 362 | HERMES LTE | 45J |
| Code 362 | HERMES LTE | 51J |
| Code 460 | Canada version | 5J |
| Code 460 | Canada version | 9J |
| Code 460 | Canada version | 12J |
| Code 460 | Canada version | 14J |
| Code 460 | Canada version | 17J |
| Code 460 | Canada version | 23J |
| Code 494 | USA version | 6J |
| Code 494 | USA version | 9J |
| Code 494 | USA version | 12J |
| Code 494 | USA version | 15J |
| Code 494 | USA version | 17J |
| Code 494 | USA version | 24J |
| Code 835 | Additional parts for South Korea vehicles | 6J |
| Code 835 | Additional parts for South Korea vehicles | 9J |
| Code 835 | Additional parts for South Korea vehicles | 12J |
| Code 835 | Additional parts for South Korea vehicles | 15J |
| Code 835 | Additional parts for South Korea vehicles | 18J |
| Code 835 | Additional parts for South Korea vehicles | 24J |
| Code 945 | China Stage 6 exhaust treatment | 6J |
| Code 945 | China Stage 6 exhaust treatment | 10J |
| Code 945 | China Stage 6 exhaust treatment | 13J |
| Code 945 | China Stage 6 exhaust treatment | 15J |
| Code 945 | China Stage 6 exhaust treatment | 18J |
| Code 945 | China Stage 6 exhaust treatment | 24J |
| Code AA7 | POWER VARIANT UPRATED 2 | 6J |
| Code AA7 | POWER VARIANT UPRATED 2 | 8J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 16A |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 30J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 5A |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 32J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 11A |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 1J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 3J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 27J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 37J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 26J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 26J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 35J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 41J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 38J |
| Code U63 | Driving school package | 53J |
| Code U63 | Driving school package | 55J |
| F152/3 | Engine compartment fuse and relay module | 34L |
| F152/3 | Engine compartment fuse and relay module | 6L |
| F152/3 | Engine compartment fuse and relay module | 29L |
| F152/3 | Engine compartment fuse and relay module | 31L |
| F152/3 | Engine compartment fuse and relay module | 36L |
| F152/3 | Engine compartment fuse and relay module | 41L |
| F152/3 | Engine compartment fuse and relay module | 12L |
| F152/3 | Engine compartment fuse and relay module | 17L |
| G2 | Alternator | 4L |
| G3/1 | Oxygen sensor downstream of catalytic converter | 20L |
| G3/2 | Oxygen sensor upstream of catalytic converter | 20L |
| N10 | Central control module | 53L |
| N112/9 | HERMES control unit | 46L |
| N112/9 | HERMES control unit | 51L |
| N26/10 | Carsharing control unit | 47L |
| N26/10 | Carsharing control unit | 52L |
| N3/10 | ME-SFI [ME] control unit | 33L |
| N3/10 | ME-SFI [ME] control unit | 30L |
| N3/9 | CDI control unit | 1L |
| N3/9 | CDI control unit | 42L |
| N3/9 | CDI control unit | 35L |
| N37/7 | Control unit of NOx sensor upstream of SCR catalytic converter | 27L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 28L |
| N73 | Electronic ignition switch control unit | 49L |
| N73 | Electronic ignition switch control unit | 44L |
| N74 | Soot particulate sensor control unit | 26L |
| N74 | Soot particulate sensor control unit | 37L |
| X11/4x1 | Diagnostic connector | 43L |
| X11/4x1 | Diagnostic connector | 48L |
| X138/1xFHS | Center console electrical connector | 54L |
| X26/31x1 | Engine/engine compartment electrical connector | 18L |
| X26/43x1 | Engine wiring harness/engine compartment electrical connector | 2L |
| X26/45x1 | Engine wiring harness/engine compartment electrical connector | 39L |
| X26/46x1 | Engine wiring harness/engine compartment electrical connector | 38L |
| X26/47x1 | Engine wiring harness/engine compartment electrical connector | 13L |
| X26/48x1 | Engine wiring harness/engine compartment electrical connector | 7L |
| X29/1x1 | Glove compartment electrical connector | 55L |
| Y101 | Divert air switchover valve | 8L |
| Y58/9 | Fuel tank bleed valve | 21L |
| Y62/16 | Cylinder 4 injection valve, intake manifold | 22L |
| Z1z9 | Connector sleeve LIN C1 | 2A |
| Z35/12z1 | Diagnostic CAN (CAN D) low connector sleeve | 45A |
| Z35/13z1 | Diagnostic CAN (CAN D) high connector sleeve | 50A |
| Z51/6z1 | Circuit 58d connector sleeve | 54A |
| Z7/48z1 | Circuit 87M connector sleeve | 7A |
| Z7/48z1 | Circuit 87M connector sleeve | 13A |
| Z7/48z1 | Circuit 87M connector sleeve | 21A |
| Z7/73z1 | Circuit 87M connector sleeve | 27A |
| Z7/73z1 | Circuit 87M connector sleeve | 31A |
| Z7/73z1 | Circuit 87M connector sleeve | 35A |
| Z7/75z1 | Circuit 87M connector sleeve | 40A |
