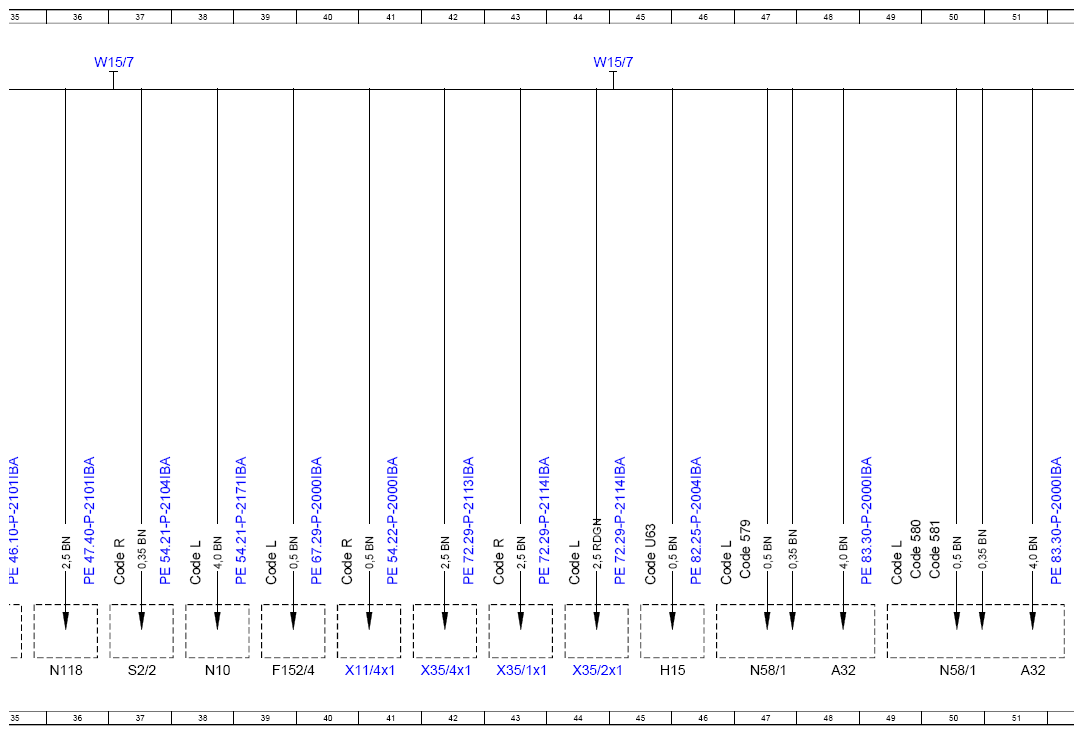

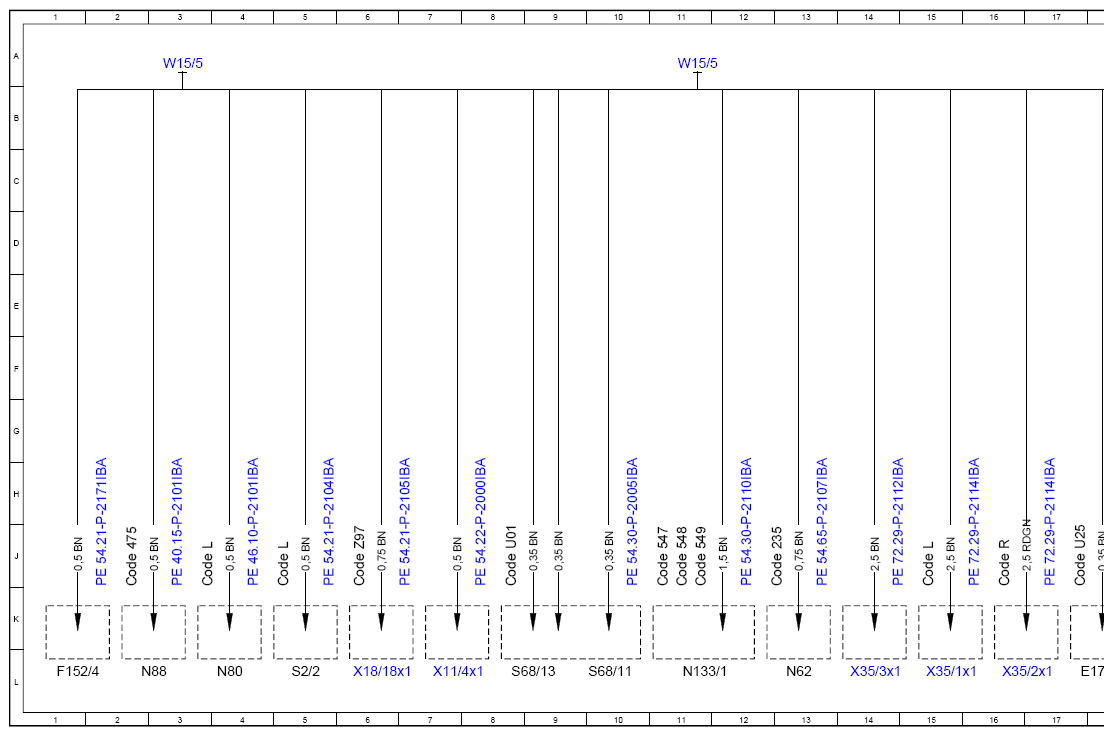

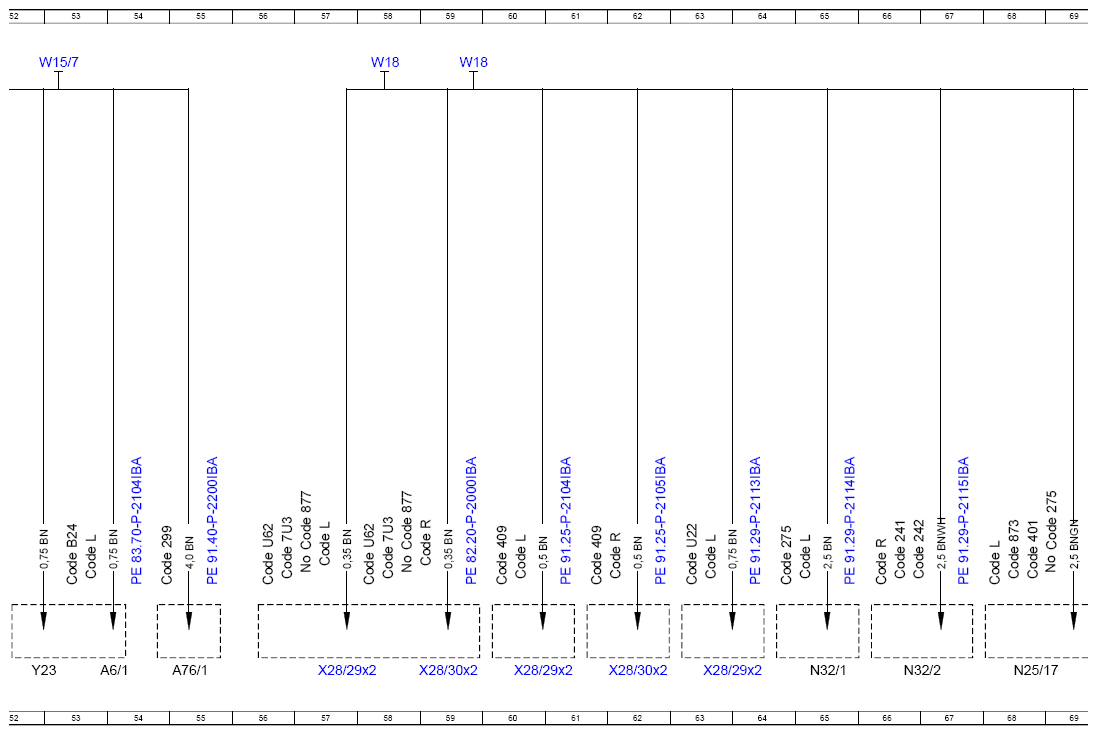

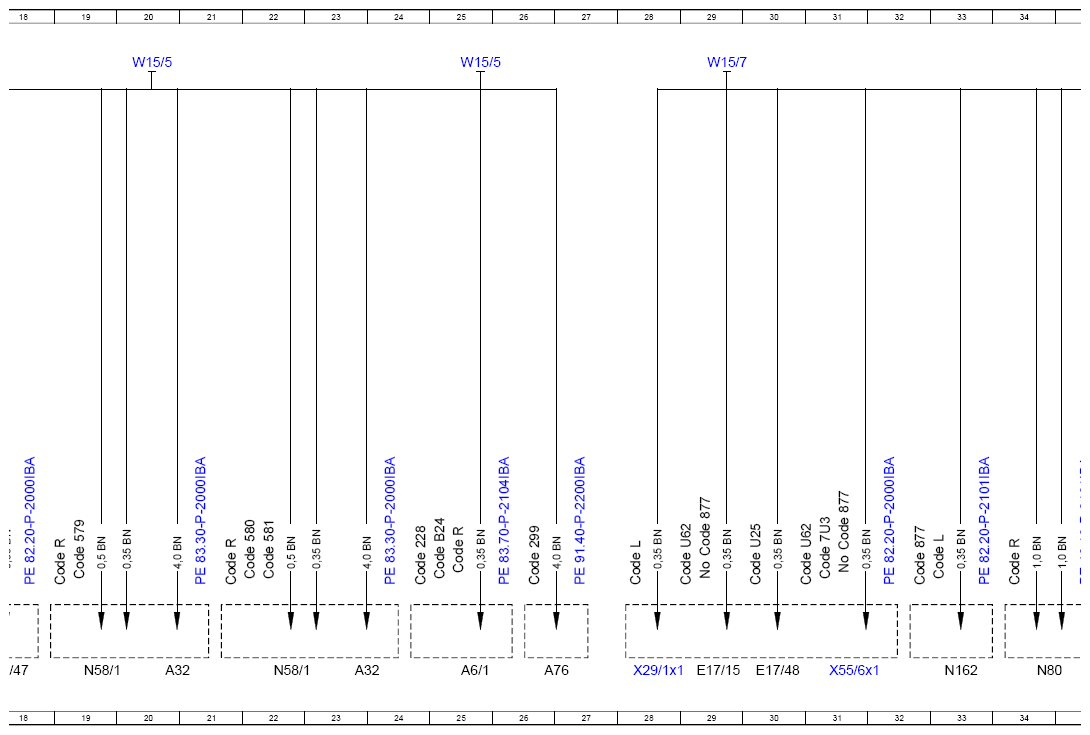

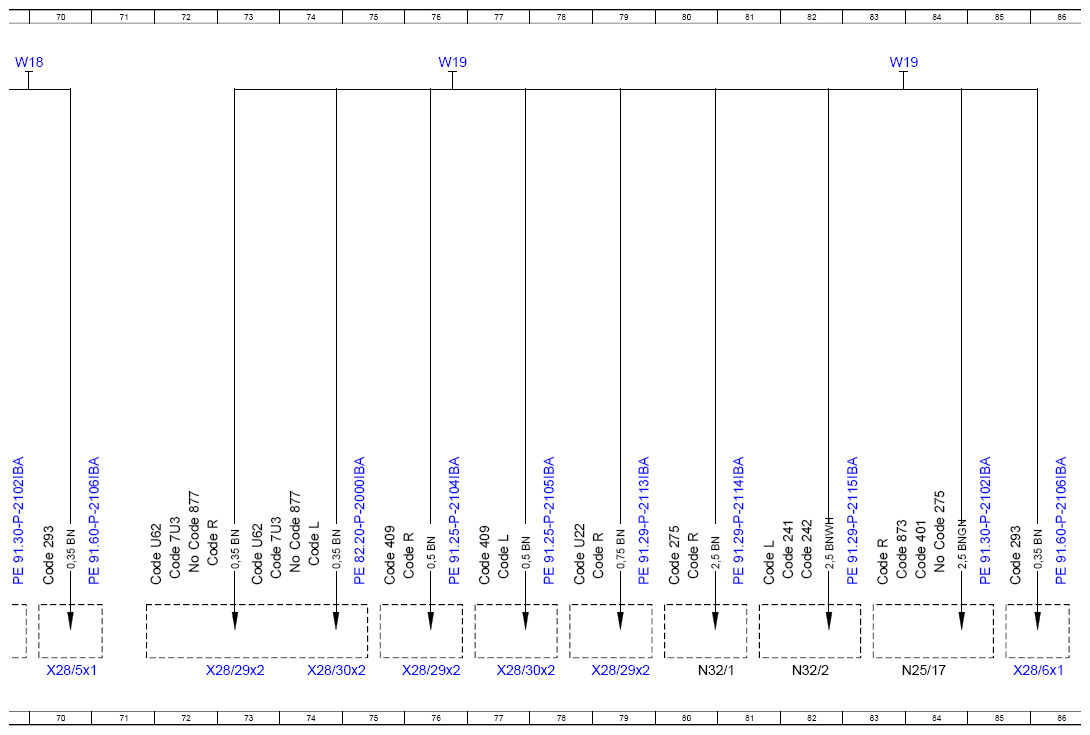

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97IBC
Model 177
W15/5, W15/7, W18, W19
| Code: | Designation: | Position: |
|---|---|---|

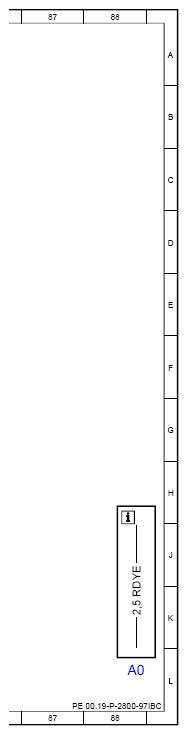

| A0 | Use of wiring diagrams | 88L |
| A32 | AC housing | 20L |
| A32 | AC housing | 23L |
| A32 | AC housing | 48L |
| A32 | AC housing | 51L |
| A6/1 | Stationary heater radio remote control receiver | 25L |
| A6/1 | Stationary heater radio remote control receiver | 53L |
| A76 | Left front reversible emergency tensioning retractor | 26L |
| A76/1 | Right front reversible emergency tensioning retractor | 55L |
| Code 228 | Stationary heater | 24J |
| Code 235 | Active Parking Assist with PARKTRONIC | 13J |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 66J |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 82J |
| Code 242 | Electrically adjustable front passenger seat with memory function | 67J |
| Code 242 | Electrically adjustable front passenger seat with memory function | 82J |
| Code 275 | Electrically adjustable driver seat with memory function | 64J |
| Code 275 | Electrically adjustable driver seat with memory function | 69J |
| Code 275 | Electrically adjustable driver seat with memory function | 84J |
| Code 275 | Electrically adjustable driver seat with memory function | 80J |
| Code 293 | Side airbags in the rear | 70J |
| Code 293 | Side airbags in the rear | 85J |
| Code 299 | PRE-SAFE® system | 26J |
| Code 299 | PRE-SAFE® system | 55J |
| Code 401 | Seat climate control for driver and front passenger | 68J |
| Code 401 | Seat climate control for driver and front passenger | 84J |
| Code 409 | Left/right front multicontour seats | 60J |
| Code 409 | Left/right front multicontour seats | 61J |
| Code 409 | Left/right front multicontour seats | 77J |
| Code 409 | Left/right front multicontour seats | 75J |
| Code 475 | Tire pressure monitor | 2J |
| Code 547 | Connect 20 Entry (NTG6) | 11J |
| Code 548 | Connect 20 MID (NTG6) | 11J |
| Code 549 | Connect 20 HIGH (NTG6) | 11J |
| Code 579 | Single-zone air conditioning | 19J |
| Code 579 | Single-zone air conditioning | 47J |
| Code 580 | Air conditioning | 22J |
| Code 580 | Air conditioning | 49J |
| Code 581 | Automatic air conditioning | 22J |
| Code 581 | Automatic air conditioning | 50J |
| Code 7U3 | Seat model variant 3 | 31J |
| Code 7U3 | Seat model variant 3 | 56J |
| Code 7U3 | Seat model variant 3 | 58J |
| Code 7U3 | Seat model variant 3 | 74J |
| Code 7U3 | Seat model variant 3 | 72J |
| Code 873 | Seat heater for driver and front passenger | 68J |
| Code 873 | Seat heater for driver and front passenger | 84J |
| Code 877 | Ambiance illumination | 29J |
| Code 877 | Ambiance illumination | 31J |
| Code 877 | Ambiance illumination | 32J |
| Code 877 | Ambiance illumination | 57J |
| Code 877 | Ambiance illumination | 58J |
| Code 877 | Ambiance illumination | 74J |
| Code 877 | Ambiance illumination | 72J |
| Code B24 | Remote control for stationary heater | 25J |
| Code B24 | Remote control for stationary heater | 53J |
| Code L | LEFT-HAND DRIVE | 4J |
| Code L | LEFT-HAND DRIVE | 5J |
| Code L | LEFT-HAND DRIVE | 15J |
| Code L | LEFT-HAND DRIVE | 28J |
| Code L | LEFT-HAND DRIVE | 33J |
| Code L | LEFT-HAND DRIVE | 38J |
| Code L | LEFT-HAND DRIVE | 39J |
| Code L | LEFT-HAND DRIVE | 44J |
| Code L | LEFT-HAND DRIVE | 49J |
| Code L | LEFT-HAND DRIVE | 46J |
| Code L | LEFT-HAND DRIVE | 53J |
| Code L | LEFT-HAND DRIVE | 57J |
| Code L | LEFT-HAND DRIVE | 60J |
| Code L | LEFT-HAND DRIVE | 63J |
| Code L | LEFT-HAND DRIVE | 65J |
| Code L | LEFT-HAND DRIVE | 68J |
| Code L | LEFT-HAND DRIVE | 74J |
| Code L | LEFT-HAND DRIVE | 81J |
| Code L | LEFT-HAND DRIVE | 77J |
| Code R | RIGHT-HAND DRIVE | 16J |
| Code R | RIGHT-HAND DRIVE | 19J |
| Code R | RIGHT-HAND DRIVE | 21J |
| Code R | RIGHT-HAND DRIVE | 25J |
| Code R | RIGHT-HAND DRIVE | 34J |
| Code R | RIGHT-HAND DRIVE | 37J |
| Code R | RIGHT-HAND DRIVE | 40J |
| Code R | RIGHT-HAND DRIVE | 43J |
| Code R | RIGHT-HAND DRIVE | 59J |
| Code R | RIGHT-HAND DRIVE | 62J |
| Code R | RIGHT-HAND DRIVE | 66J |
| Code R | RIGHT-HAND DRIVE | 73J |
| Code R | RIGHT-HAND DRIVE | 80J |
| Code R | RIGHT-HAND DRIVE | 79J |
| Code R | RIGHT-HAND DRIVE | 76J |
| Code R | RIGHT-HAND DRIVE | 83J |
| Code U01 | Rear seat belt status indicator in instrument cluster | 8J |
| Code U22 | 4-way lumbar support | 63J |
| Code U22 | 4-way lumbar support | 78J |
| Code U25 | Illuminated door sills | 17J |
| Code U25 | Illuminated door sills | 30J |
| Code U62 | Light and vision package | 29J |
| Code U62 | Light and vision package | 31J |
| Code U62 | Light and vision package | 56J |
| Code U62 | Light and vision package | 58J |
| Code U62 | Light and vision package | 73J |
| Code U62 | Light and vision package | 72J |
| Code U63 | Driving school package | 45J |
| Code Z97 | Electronic interface | 6J |
| E17/15 | Right front footwell lamp | 29L |
| E17/47 | Left front illuminated door sill molding | 18L |
| E17/48 | Right front illuminated door sill molding | 30L |
| F152/4 | Vehicle interior fuse and relay module | 1L |
| F152/4 | Vehicle interior fuse and relay module | 39L |
| H15 | Pedal operation monitor buzzer | 45L |
| N10 | Central control module | 38L |
| N118 | Fuel pump control unit | 36L |
| N133/1 | Instrument cluster control unit | 11L |
| N162 | Ambiance illumination control unit | 33L |
| N25/17 | Front seat heater/seat ventilation control unit | 68L |
| N25/17 | Front seat heater/seat ventilation control unit | 84L |
| N32/1 | Driver seat control unit | 65L |
| N32/1 | Driver seat control unit | 80L |
| N32/2 | Front passenger seat control unit | 66L |
| N32/2 | Front passenger seat control unit | 82L |
| N58/1 | Climate control operating unit | 19L |
| N58/1 | Climate control operating unit | 22L |
| N58/1 | Climate control operating unit | 50L |
| N58/1 | Climate control operating unit | 47L |
| N62 | Parking system control unit | 13L |
| N80 | Steering column module control unit | 4L |
| N80 | Steering column module control unit | 34L |
| N88 | Tire pressure monitor control unit | 3L |
| S2/2 | Start/stop button with ECO start/stop function button | 5L |
| S2/2 | Start/stop button with ECO start/stop function button | 37L |
| S68/11 | Left rear seat belt buckle switch | 10L |
| S68/13 | Center and right rear passenger compartment seat belt buckles | 8L |
| W15/5 | Left front footwell ground point | 3A |
| W15/5 | Left front footwell ground point | 11A |
| W15/5 | Left front footwell ground point | 20A |
| W15/5 | Left front footwell ground point | 25A |
| W15/7 | Right front footwell ground point | 29A |
| W15/7 | Right front footwell ground point | 36A |
| W15/7 | Right front footwell ground point | 44A |
| W15/7 | Right front footwell ground point | 53A |
| W18 | Left front seat crossmember ground point | 58A |
| W18 | Left front seat crossmember ground point | 69A |
| W18 | Left front seat crossmember ground point | 59A |
| W19 | Right front seat crossmember ground point | 76A |
| W19 | Right front seat crossmember ground point | 83A |
| X11/4x1 | Diagnostic connector | 7L |
| X11/4x1 | Diagnostic connector | 40L |
| X18/18x1 | Vehicle gateway electrical connector | 6L |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 57L |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 60L |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 63L |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 73L |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 79L |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 76L |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 59L |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 62L |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 74L |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 77L |
| X28/5x1 | Left rear seat airbag electrical connector | 70L |
| X28/6x1 | Right rear seat airbag electrical connector | 85L |
| X29/1x1 | Glove compartment electrical connector | 28L |
| X35/1x1 | Driver door electrical connector | 15L |
| X35/1x1 | Driver door electrical connector | 43L |
| X35/2x1 | Front passenger door electrical connector | 16L |
| X35/2x1 | Front passenger door electrical connector | 44L |
| X35/3x1 | Left rear door electrical connector | 14L |
| X35/4x1 | Right rear door electrical connector | 42L |
| X55/6x1 | Right rear seat electrical connector | 31L |
| Y23 | Stationary heater fuel pump | 52L |
