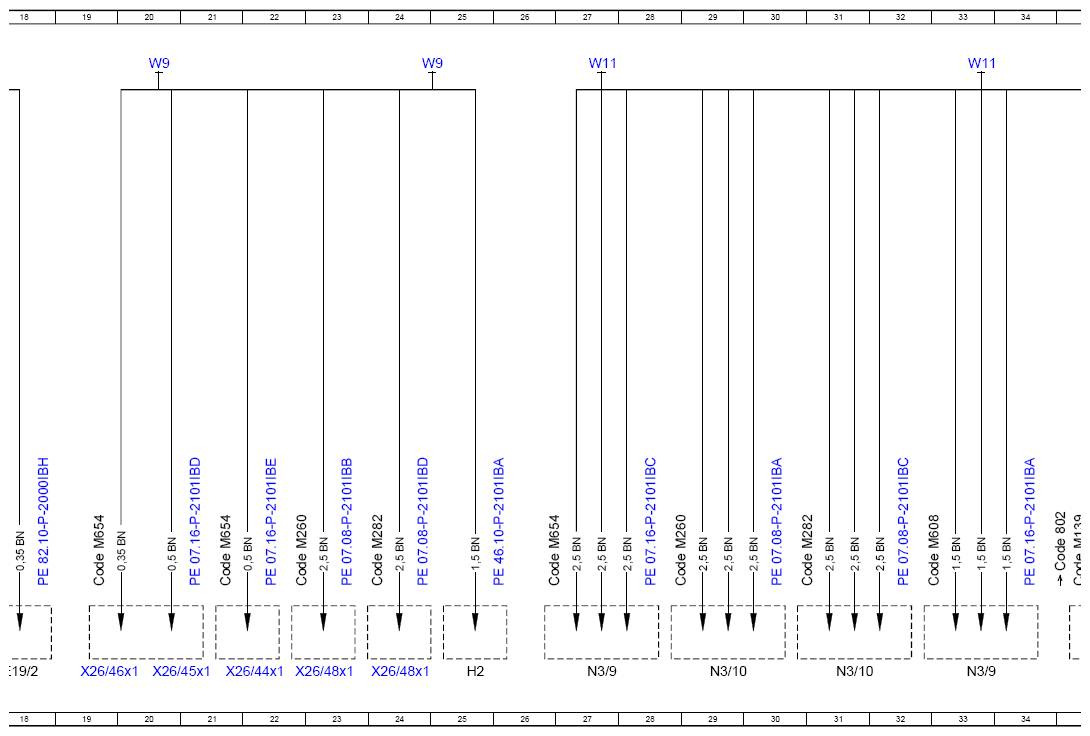

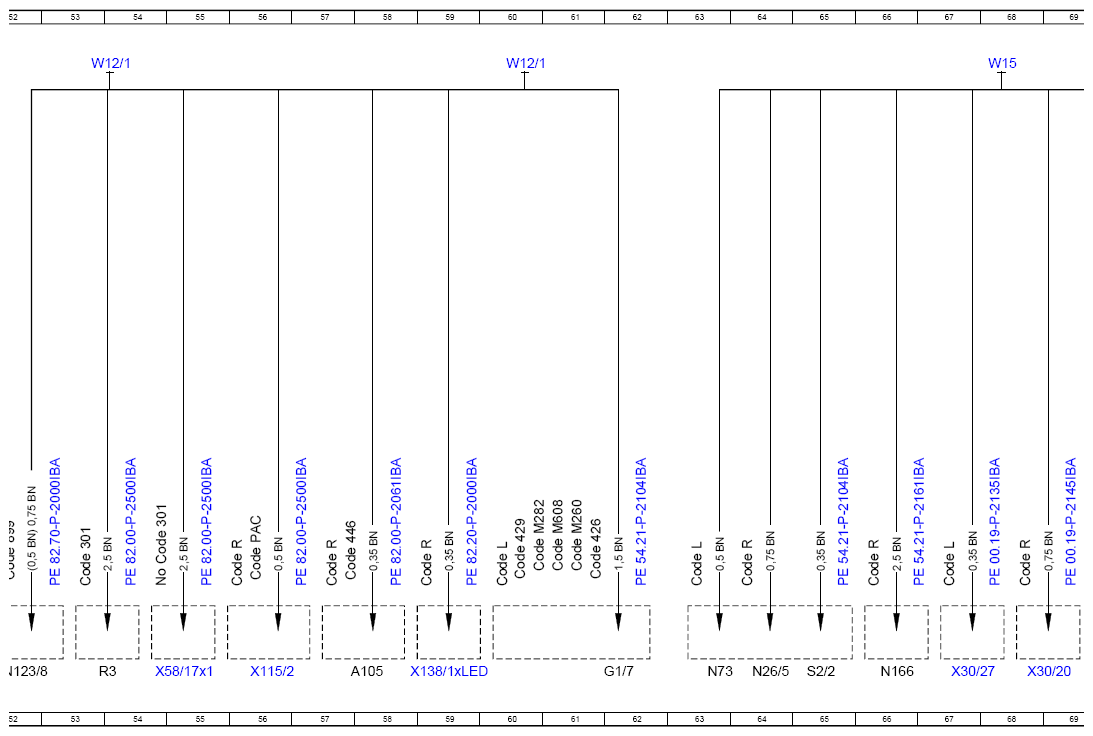

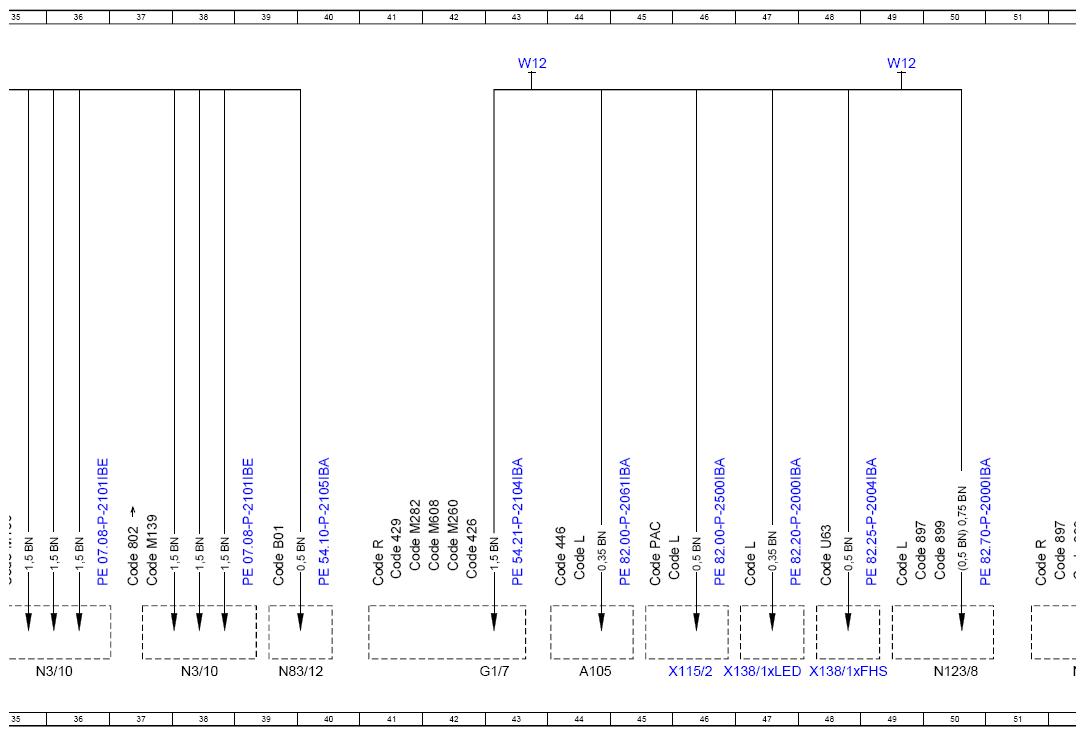

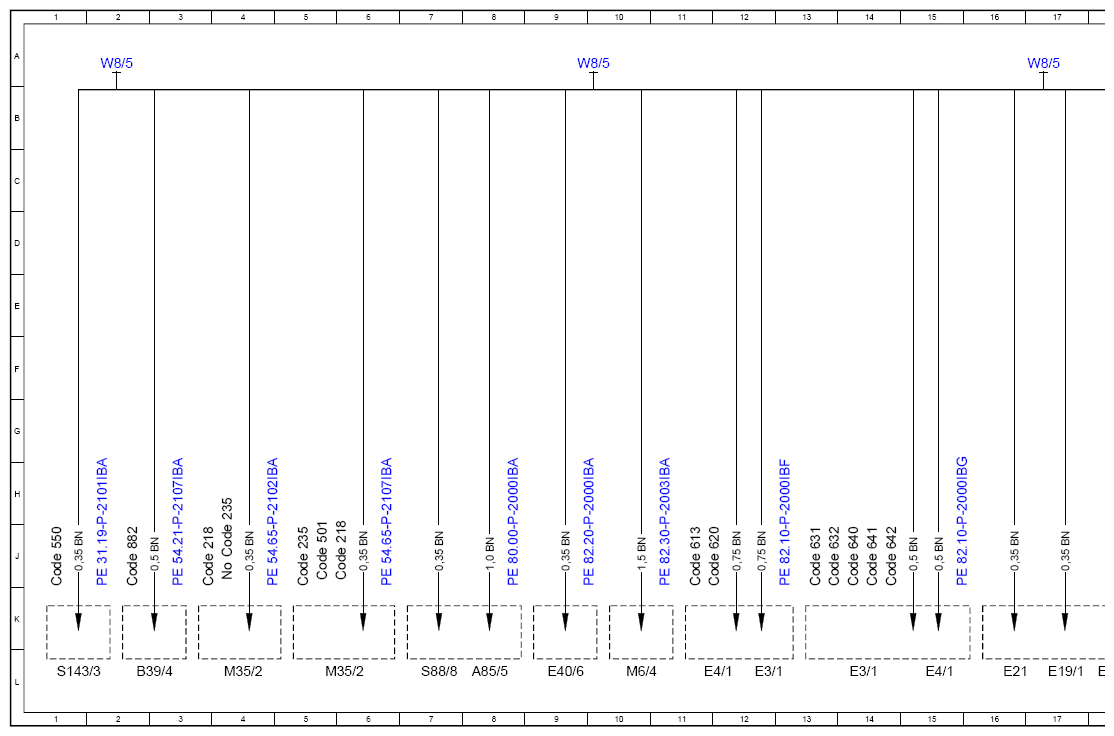

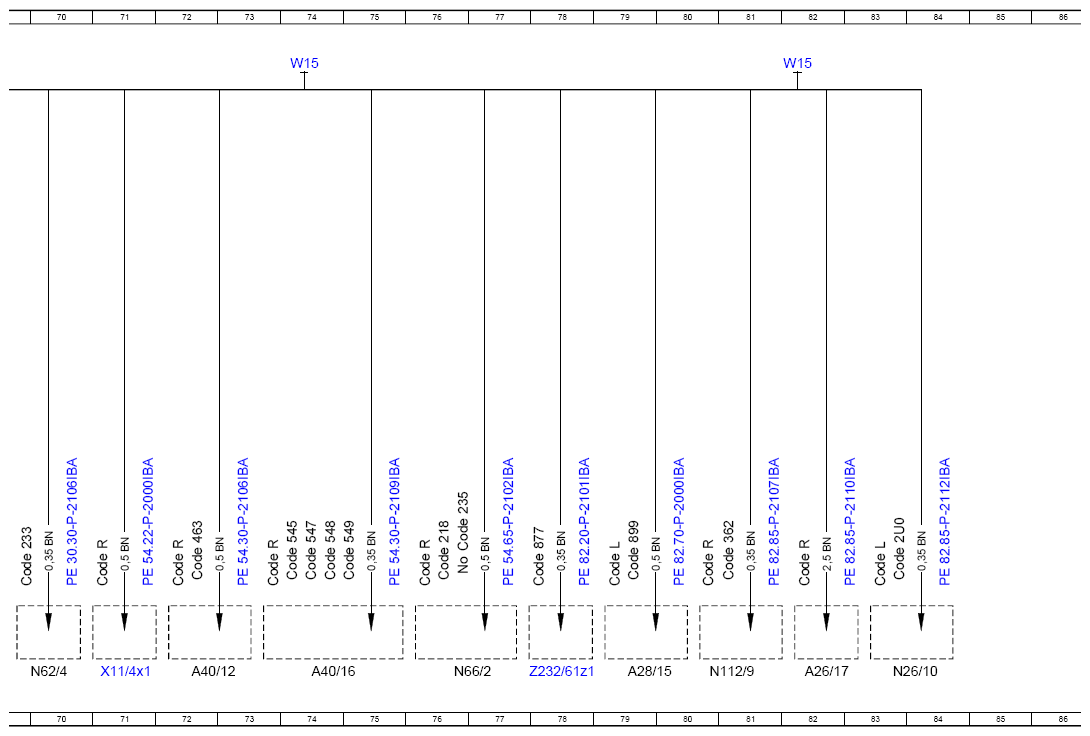

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97IBB
Model 177
W8/5, W9, W11, W12, W12/1, W15
| Code: | Designation: | Position: |
|---|---|---|

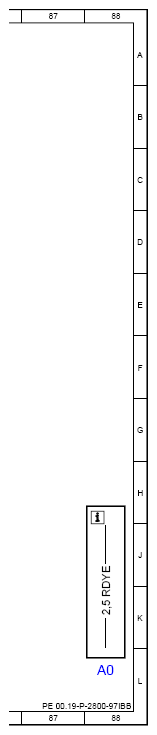

| A0 | Use of wiring diagrams | 88L |
| A105 | Touchpad/lower control panel | 44L |
| A105 | Touchpad/lower control panel | 58L |
| A26/17 | Head unit | 82L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 79L |
| A40/12 | Head-up display | 72L |
| A40/16 | Head unit/instrument cluster display cluster | 74L |
| A85/5 | Trunk lid/liftgate lock | 8L |
| B39/4 | Rear window glass breakage sensor | 2L |
| Code 218 | Backup camera | 6J |
| Code 218 | Backup camera | 4J |
| Code 218 | Backup camera | 76J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 70J |
| Code 235 | Active Parking Assist with PARKTRONIC | 5J |
| Code 235 | Active Parking Assist with PARKTRONIC | 4J |
| Code 235 | Active Parking Assist with PARKTRONIC | 76J |
| Code 2U0 | car2go scopes | 83J |
| Code 301 | Smoker"s package | 54J |
| Code 301 | Smoker"s package | 53J |
| Code 362 | HERMES LTE | 81J |
| Code 426 | 8G-DCT | 42J |
| Code 426 | 8G-DCT | 61J |
| Code 429 | 7G-DCT | 41J |
| Code 429 | 7G-DCT | 60J |
| Code 446 | Touchpad only | 44J |
| Code 446 | Touchpad only | 58J |
| Code 463 | Head-up display | 72J |
| Code 501 | Surround View camera | 5J |
| Code 545 | Connect 5 (NTG6) | 74J |
| Code 547 | Connect 20 Entry (NTG6) | 74J |
| Code 548 | Connect 20 MID (NTG6) | 74J |
| Code 549 | Connect 20 HIGH (NTG6) | 75J |
| Code 550 | Trailer hitch | 1J |
| Code 613 | Left-hand traffic headlamps | 11J |
| Code 620 | Right-hand traffic headlamps | 12J |
| Code 631 | Static LED headlamp, left-hand traffic | 13J |
| Code 632 | Static LED headlamp, right-hand traffic | 14J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 14J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 14J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 14J |
| Code 802 | YoM 21/1 | 37J |
| Code 802 | YoM 21/1 | 35J |
| Code 877 | Ambiance illumination | 78J |
| Code 882 | Interior monitoring | 2J |
| Code 897 | Wireless mobile phone charging | 52J |
| Code 897 | Wireless mobile phone charging | 50J |
| Code 899 | Wireless phone charging at front and antenna | 50J |
| Code 899 | Wireless phone charging at front and antenna | 52J |
| Code 899 | Wireless phone charging at front and antenna | 79J |
| Code B01 | 48V technology | 39J |
| Code L | LEFT-HAND DRIVE | 44J |
| Code L | LEFT-HAND DRIVE | 47J |
| Code L | LEFT-HAND DRIVE | 49J |
| Code L | LEFT-HAND DRIVE | 46J |
| Code L | LEFT-HAND DRIVE | 60J |
| Code L | LEFT-HAND DRIVE | 63J |
| Code L | LEFT-HAND DRIVE | 67J |
| Code L | LEFT-HAND DRIVE | 79J |
| Code L | LEFT-HAND DRIVE | 83J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 37J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 35J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 23J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 29J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 42J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 61J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 24J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 31J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 41J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 61J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 33J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 42J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 61J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 21J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 19J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 27J |
| Code PAC | Value Package | 45J |
| Code PAC | Value Package | 56J |
| Code R | RIGHT-HAND DRIVE | 41J |
| Code R | RIGHT-HAND DRIVE | 71J |
| Code R | RIGHT-HAND DRIVE | 51J |
| Code R | RIGHT-HAND DRIVE | 56J |
| Code R | RIGHT-HAND DRIVE | 57J |
| Code R | RIGHT-HAND DRIVE | 59J |
| Code R | RIGHT-HAND DRIVE | 64J |
| Code R | RIGHT-HAND DRIVE | 66J |
| Code R | RIGHT-HAND DRIVE | 68J |
| Code R | RIGHT-HAND DRIVE | 73J |
| Code R | RIGHT-HAND DRIVE | 76J |
| Code R | RIGHT-HAND DRIVE | 72J |
| Code R | RIGHT-HAND DRIVE | 82J |
| Code R | RIGHT-HAND DRIVE | 80J |
| Code U63 | Driving school package | 48J |
| E19/1 | Left license plate lamp | 17L |
| E19/2 | Right license plate lamp | 18L |
| E21 | Center stop lamp | 16L |
| E3/1 | Inner left rear lamp unit | 14L |
| E3/1 | Inner left rear lamp unit | 12L |
| E4/1 | Inner right rear lamp unit | 15L |
| E4/1 | Inner right rear lamp unit | 11L |
| E40/6 | Liftgate ambient lamp and warning lamp | 9L |
| G1/7 | Additional battery | 43L |
| G1/7 | Additional battery | 62L |
| H2 | Left fanfare horn | 25L |
| M35/2 | Rear camera cover motor | 5L |
| M35/2 | Rear camera cover motor | 4L |
| M6/4 | Tailgate wiper motor | 10L |
| N112/9 | HERMES control unit | 81L |
| N123/8 | Front mobile phone cradle control unit | 50L |
| N123/8 | Front mobile phone cradle control unit | 52L |
| N166 | Head unit/instrument cluster control unit | 66L |
| N26/10 | Carsharing control unit | 83L |
| N26/5 | Electric steering lock control unit | 64L |
| N3/10 | ME-SFI [ME] control unit | 31L |
| N3/10 | ME-SFI [ME] control unit | 29L |
| N3/10 | ME-SFI [ME] control unit | 38L |
| N3/10 | ME-SFI [ME] control unit | 35L |
| N3/9 | CDI control unit | 27L |
| N3/9 | CDI control unit | 33L |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 70L |
| N66/2 | Backup camera control unit | 76L |
| N73 | Electronic ignition switch control unit | 63L |
| N83/12 | DC/DC converter (48 V) control unit | 39L |
| R3 | Front cigarette lighter with ashtray illumination | 53L |
| S143/3 | Trailer hitch switch | 1L |
| S2/2 | Start/stop button | 65L |
| S88/8 | Trunk lid/liftgate external operation button | 7L |
| W11 | Combustion engine ground point | 27A |
| W11 | Combustion engine ground point | 33A |
| W12 | Left center console ground point | 43A |
| W12 | Left center console ground point | 49A |
| W12/1 | Right center console ground point | 53A |
| W12/1 | Right center console ground point | 60A |
| W15 | Right front footwell ground point | 68A |
| W15 | Right front footwell ground point | 74A |
| W15 | Right front footwell ground point | 82A |
| W8/5 | Right tailgate ground point | 2A |
| W8/5 | Right tailgate ground point | 9A |
| W8/5 | Right tailgate ground point | 17A |
| W9 | Left front ground point | 20A |
| W9 | Left front ground point | 24A |
| X11/4x1 | Diagnostic connector | 71L |
| X115/2 | Rear passenger compartment USB connector | 46L |
| X115/2 | Rear passenger compartment USB connector | 56L |
| X138/1xFHS | Center console electrical connector | 48L |
| X138/1xLED | Center console electrical connector | 47L |
| X138/1xLED | Center console electrical connector | 59L |
| X26/44x1 | Engine wiring harness/engine compartment electrical connector | 21L |
| X26/45x1 | Engine wiring harness/engine compartment electrical connector | 20L |
| X26/46x1 | Engine wiring harness/engine compartment electrical connector | 19L |
| X26/48x1 | Engine wiring harness/engine compartment electrical connector | 23L |
| X26/48x1 | Engine wiring harness/engine compartment electrical connector | 24L |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 68L |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 67L |
| X58/17x1 | Front vehicle interior power outlet | 55L |
| Z232/61z1 | Ground connection connector sleeve | 78L |
