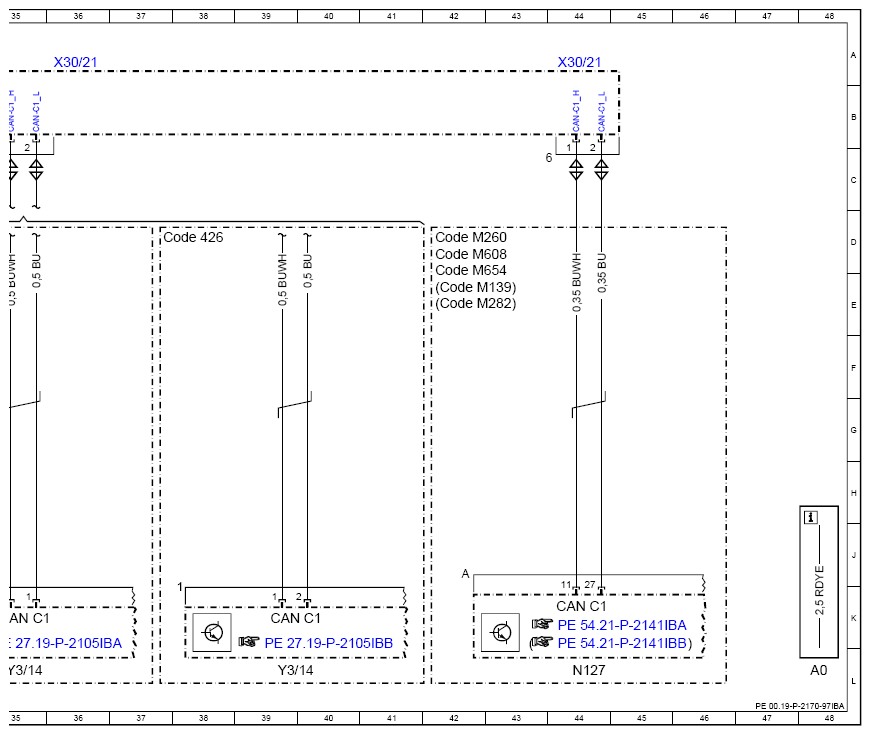

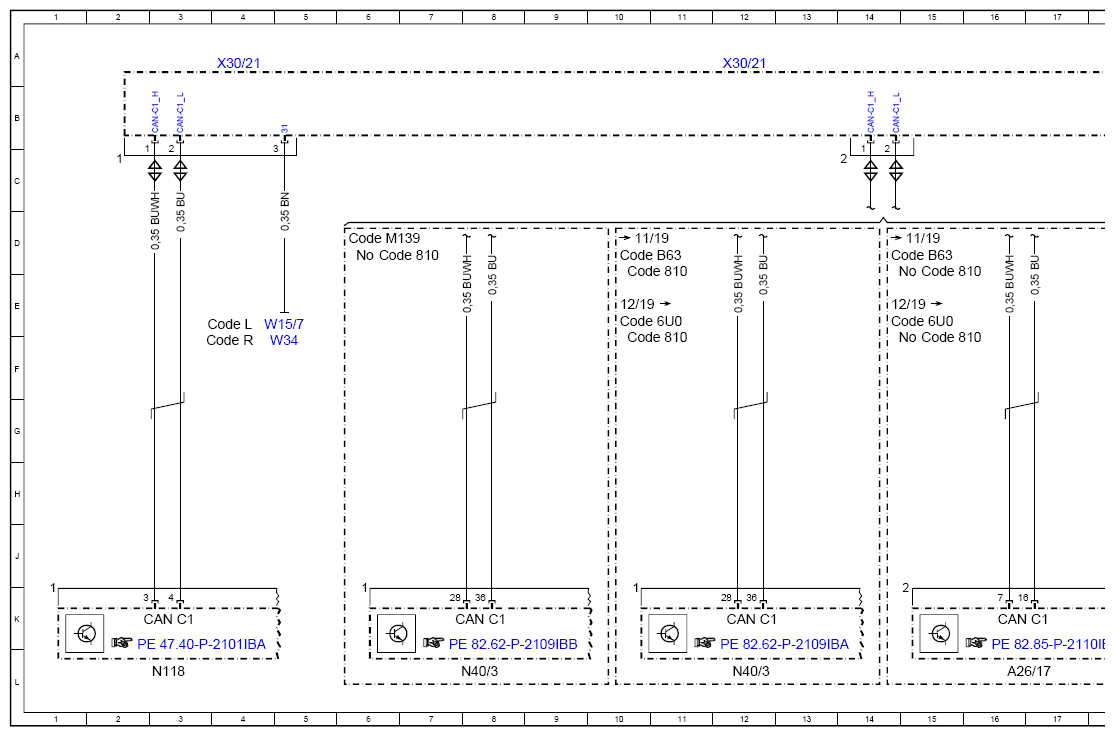

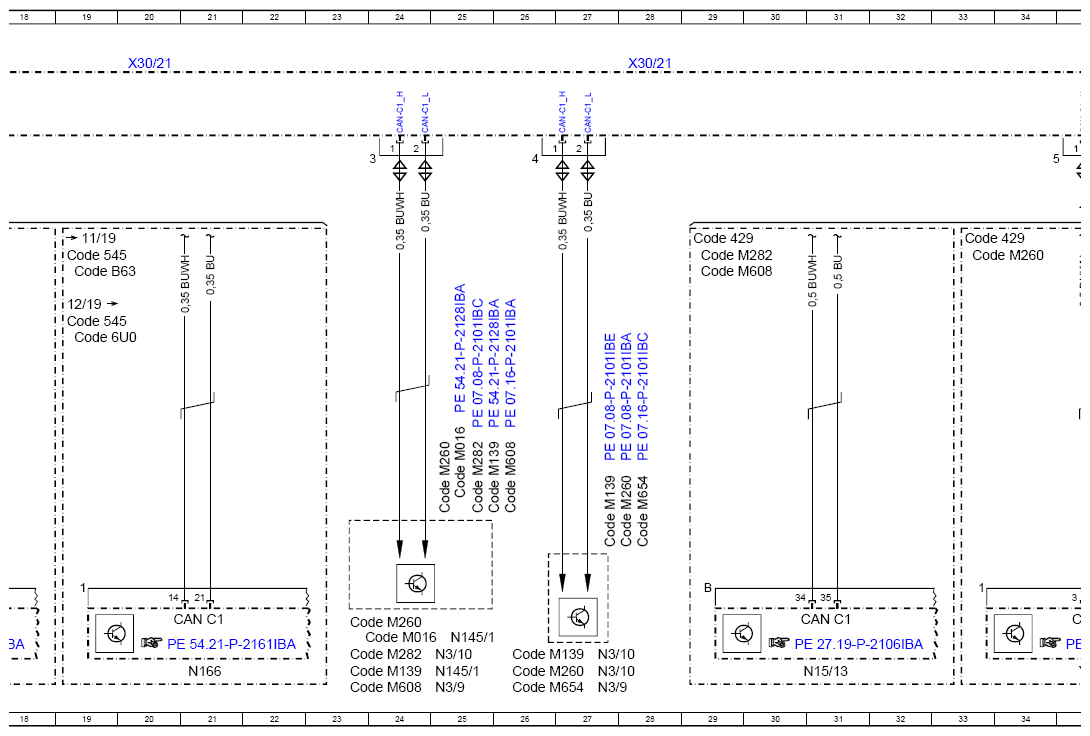

Wiring Diagram Of Drive Train CAN - PE00.19-P-2170-97IBA
Model 177
Potential distributor X30/21 (CAN C)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A26/17 | Head unit | 16L |
| CAN C1 | Drive train CAN | 3K |
| CAN C1 | Drive train CAN | 8K |
| CAN C1 | Drive train CAN | 12K |
| CAN C1 | Drive train CAN | 16K |
| CAN C1 | Drive train CAN | 21K |
| CAN C1 | Drive train CAN | 31K |
| CAN C1 | Drive train CAN | 35K |
| CAN C1 | Drive train CAN | 39K |
| CAN C1 | Drive train CAN | 44K |
| Code 426 | 8G-DCT | 37D |
| Code 429 | 7G-DCT | 29D |
| Code 429 | 7G-DCT | 33D |
| Code 545 | Connect 5 (NTG6) | 19D |
| Code 545 | Connect 5 (NTG6) | 19E |
| Code 6U0 | Engine sound via speakers | 10E |
| Code 6U0 | Engine sound via speakers | 14E |
| Code 6U0 | Engine sound via speakers | 19F |
| Code 810 | Sound system | 6D |
| Code 810 | Sound system | 10F |
| Code 810 | Sound system | 10E |
| Code 810 | Sound system | 15F |
| Code 810 | Sound system | 15E |
| Code B63 | Sporty engine sound | 14D |
| Code B63 | Sporty engine sound | 10D |
| Code B63 | Sporty engine sound | 19E |
| Code L | LEFT-HAND DRIVE | 4E |
| Code M016 | Uprated high-performance engine | 25H |
| Code M016 | Uprated high-performance engine | 23K |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 26H |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 23L |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 6D |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 42E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 26L |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 27J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 33D |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 42D |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 26L |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 28J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 23K |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 25H |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 23L |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 25H |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 29D |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 42E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 23L |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 26H |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 29E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 42D |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 26L |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 28J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 42E |
| Code R | RIGHT-HAND DRIVE | 4F |
| N118 | Fuel pump control unit | 3L |
| N127 | Drivetrain control unit | 44L |
| N145/1 | Drive unit control unit | 25L |
| N145/1 | Drive unit control unit | 25K |
| N15/13 | Double clutch transmission control unit | 31L |
| N166 | Head unit/instrument cluster control unit | 21L |
| N3/10 | ME-SFI [ME] control unit | 25L |
| N3/10 | ME-SFI [ME] control unit | 27L |
| N3/10 | ME-SFI [ME] control unit | 27L |
| N3/9 | CDI control unit | 25L |
| N3/9 | CDI control unit | 27L |
| N40/3 | Sound system amplifier control unit | 8L |
| N40/3 | Sound system amplifier control unit | 12L |
| W15/7 | Right front footwell ground point | 5E |
| W34 | Left footwell ground point | 5F |
| X30/21 | Drive train CAN (CAN C1) potential distributor | 4A |
| X30/21 | Drive train CAN (CAN C1) potential distributor | 12A |
| X30/21 | Drive train CAN (CAN C1) potential distributor | 20A |
| X30/21 | Drive train CAN (CAN C1) potential distributor | 28A |
| X30/21 | Drive train CAN (CAN C1) potential distributor | 36A |
| X30/21 | Drive train CAN (CAN C1) potential distributor | 44A |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 35L |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 39L |
