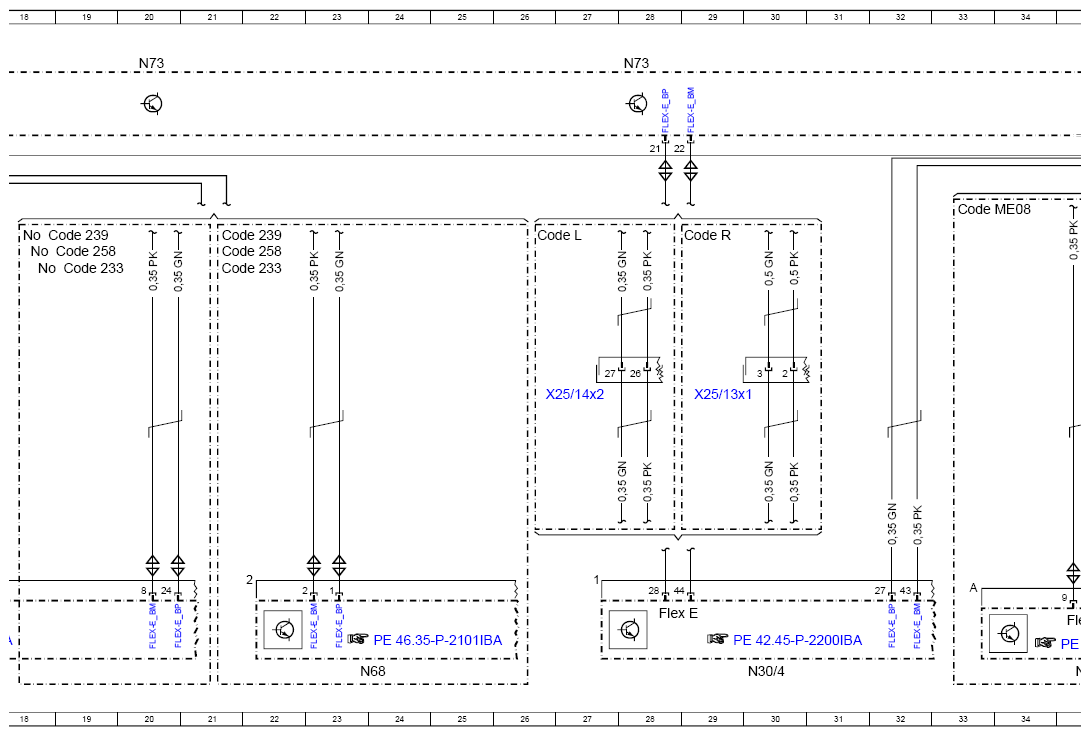

Wiring Diagram Of Chassis Flexray - PE00.19-P-2405-97IBA
Model 177
FlexRay (Flex E)

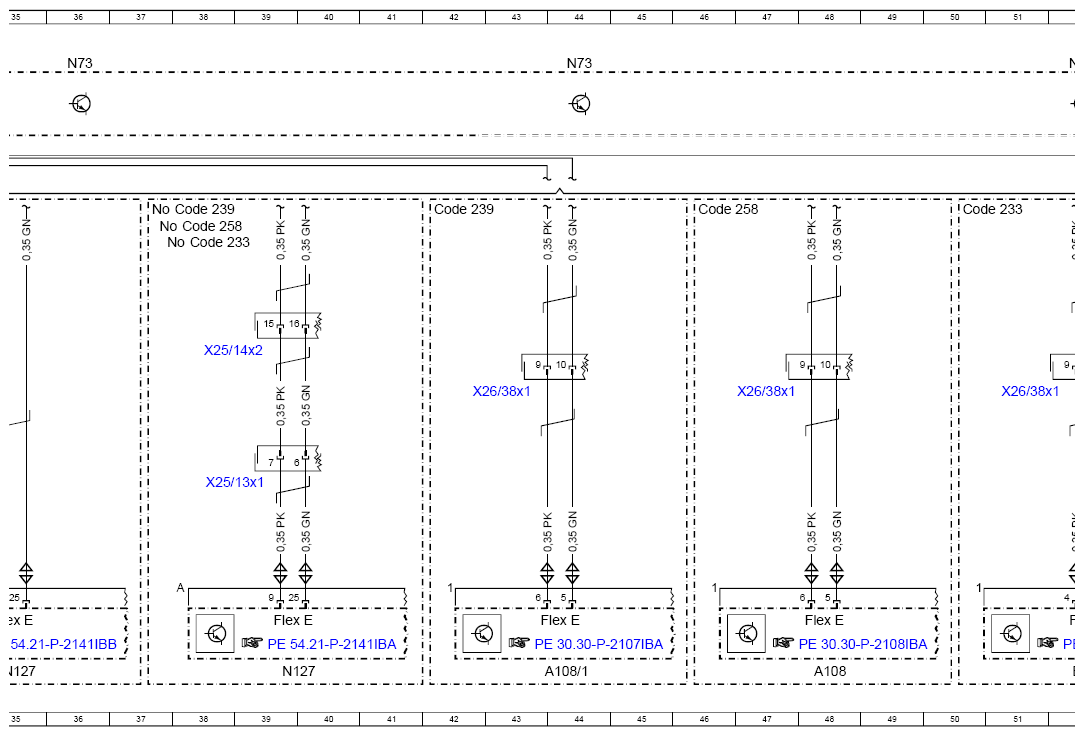

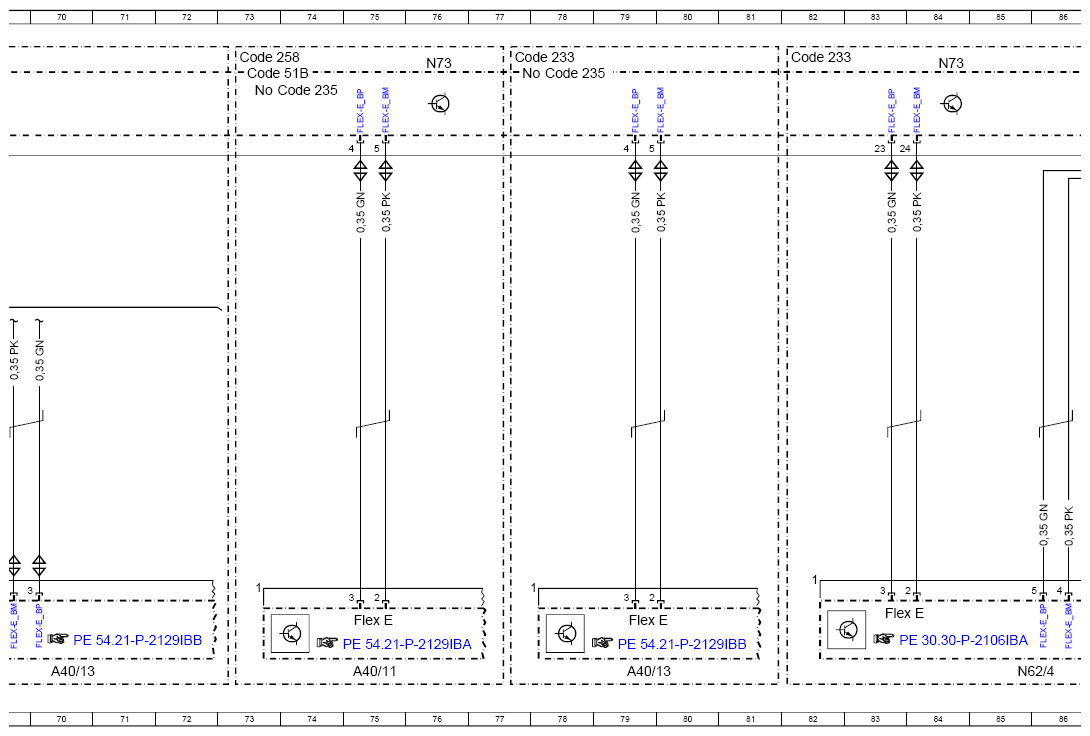

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 153L |
| A108 | Active Brake Assist controller unit | 48L |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 44L |
| A40/11 | Mono multifunction camera | 65L |
| A40/11 | Mono multifunction camera | 75L |
| A40/13 | Stereo multifunction camera | 70L |
| A40/13 | Stereo multifunction camera | 79L |
| B92/12 | Short and long-range radar sensor | 52L |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 77A |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 19D |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 21D |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 10D |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 6D |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 38D |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 50D |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 60F |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 67E |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 82A |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 110A |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 123A |
| Code 235 | Active Parking Assist with PARKTRONIC | 54A |
| Code 235 | Active Parking Assist with PARKTRONIC | 73B |
| Code 235 | Active Parking Assist with PARKTRONIC | 78A |
| Code 239 | Active Distance Assist DISTRONIC | 6D |
| Code 239 | Active Distance Assist DISTRONIC | 10D |
| Code 239 | Active Distance Assist DISTRONIC | 18D |
| Code 239 | Active Distance Assist DISTRONIC | 21D |
| Code 239 | Active Distance Assist DISTRONIC | 38D |
| Code 239 | Active Distance Assist DISTRONIC | 42D |
| Code 258 | Active Brake Assist | 19D |
| Code 258 | Active Brake Assist | 21D |
| Code 258 | Active Brake Assist | 10D |
| Code 258 | Active Brake Assist | 6D |
| Code 258 | Active Brake Assist | 38D |
| Code 258 | Active Brake Assist | 46D |
| Code 258 | Active Brake Assist | 62E |
| Code 258 | Active Brake Assist | 60E |
| Code 258 | Active Brake Assist | 73A |
| Code 459 | Steel suspension with adjustable damping | 89D |
| Code 459 | Steel suspension with adjustable damping | 87D |
| Code 459 | Steel suspension with adjustable damping | 104D |
| Code 459 | Steel suspension with adjustable damping | 109A |
| Code 459 | Steel suspension with adjustable damping | 123B |
| Code 51B | EURO-NCAP | 62F |
| Code 51B | EURO-NCAP | 60F |
| Code 51B | EURO-NCAP | 73A |
| Code B01 | 48V technology | 140D |
| Code B01 | 48V technology | 142D |
| Code L | LEFT-HAND DRIVE | 26D |
| Code M005 | 4MATIC | 87D |
| Code M005 | 4MATIC | 96E |
| Code M005 | 4MATIC | 98E |
| Code M005 | 4MATIC | 117E |
| Code M005 | 4MATIC | 115E |
| Code M005 | 4MATIC | 103D |
| Code M005 | 4MATIC | 122A |
| Code M016 | Uprated high-performance engine | 128A |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 134A |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 128A |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 33D |
| Code R | RIGHT-HAND DRIVE | 29D |
| Flex E | Chassis FlexRay | 28K |
| Flex E | Chassis FlexRay | 16K |
| Flex E | Chassis FlexRay | 2K |
| Flex E | Chassis FlexRay | 8K |
| Flex E | Chassis FlexRay | 12K |
| Flex E | Chassis FlexRay | 56K |
| Flex E | Chassis FlexRay | 35K |
| Flex E | Chassis FlexRay | 39K |
| Flex E | Chassis FlexRay | 44K |
| Flex E | Chassis FlexRay | 48K |
| Flex E | Chassis FlexRay | 52K |
| Flex E | Chassis FlexRay | 75K |
| Flex E | Chassis FlexRay | 83K |
| Flex E | Chassis FlexRay | 79K |
| Flex E | Chassis FlexRay | 125K |
| Flex E | Chassis FlexRay | 136K |
| Flex E | Chassis FlexRay | 129K |
| N127 | Drivetrain control unit | 17L |
| N127 | Drivetrain control unit | 8L |
| N127 | Drivetrain control unit | 35L |
| N127 | Drivetrain control unit | 39L |

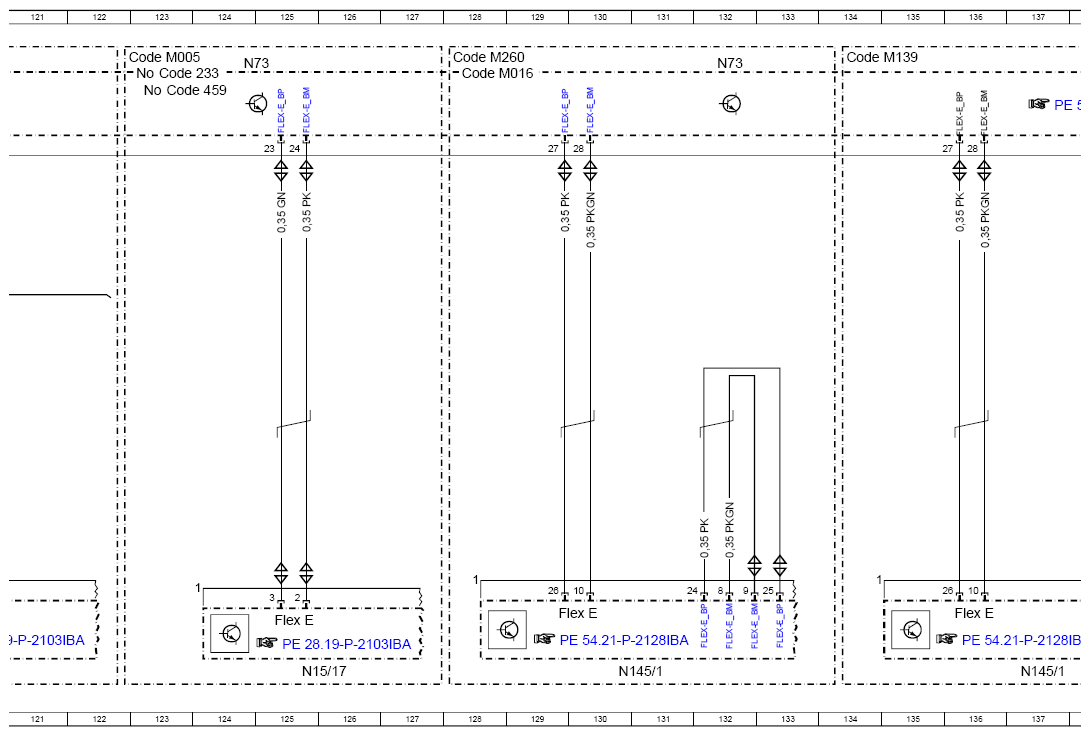

| N145/1 | Drive unit control unit | 137L |
| N145/1 | Drive unit control unit | 130L |
| N15/17 | All-wheel drive control unit | 125L |
| N15/17 | All-wheel drive control unit | 101L |
| N15/17 | All-wheel drive control unit | 107L |
| N15/17 | All-wheel drive control unit | 120L |

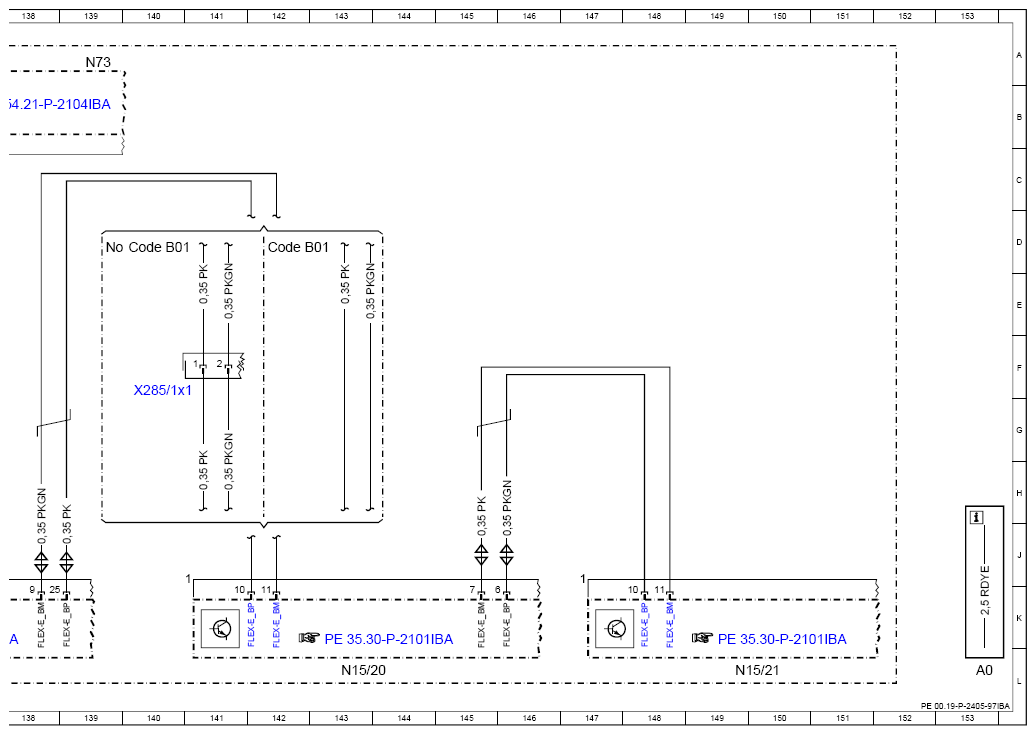

| N15/20 | Left rear axle differential control unit | 143L |
| N15/21 | Right rear axle differential control unit | 149L |
| N30/4 | Electronic Stability Program control unit | 30L |

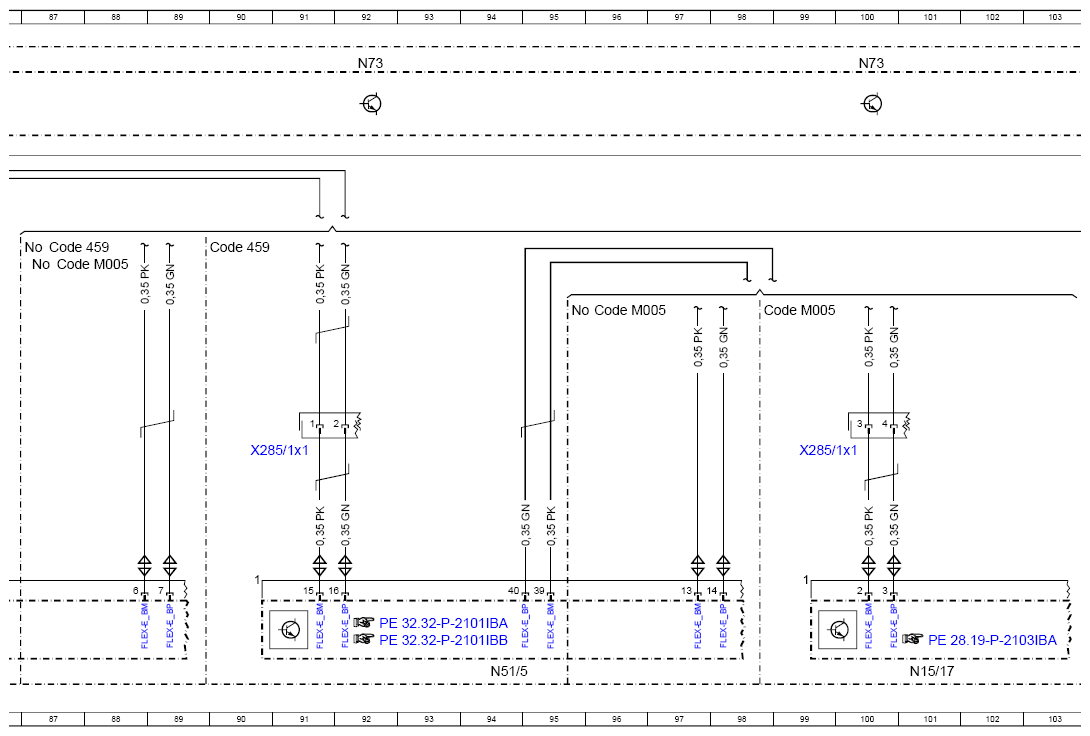

| N51/5 | Adaptive damping system control unit | 94L |

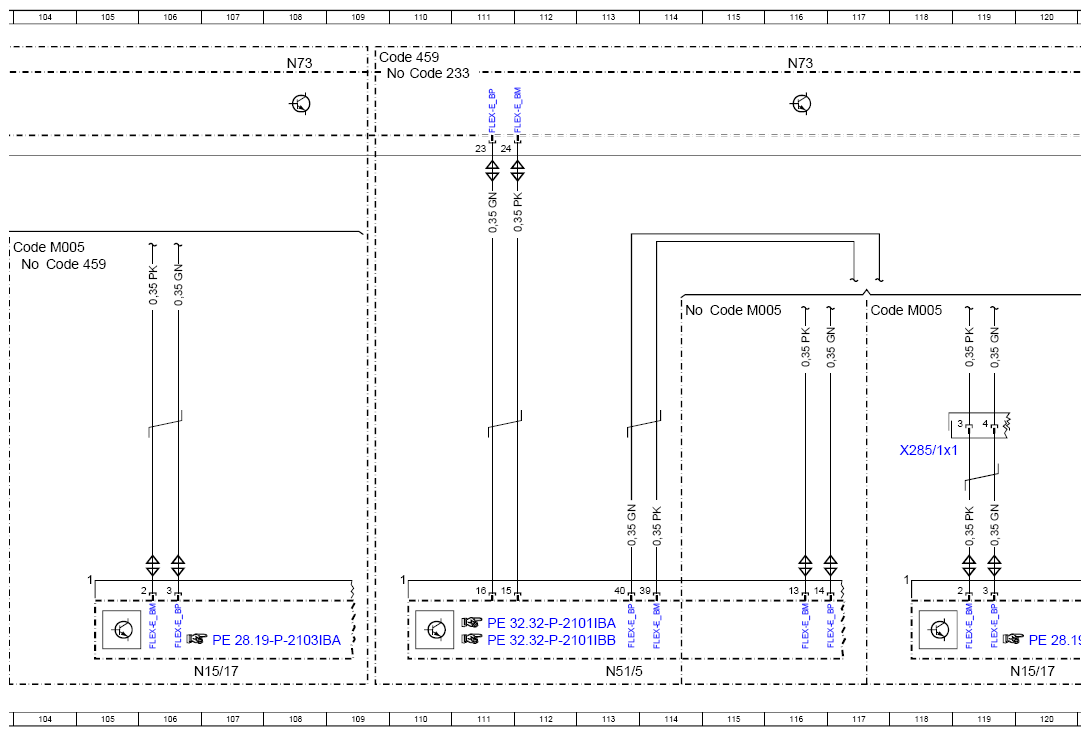

| N51/5 | Adaptive damping system control unit | 113L |

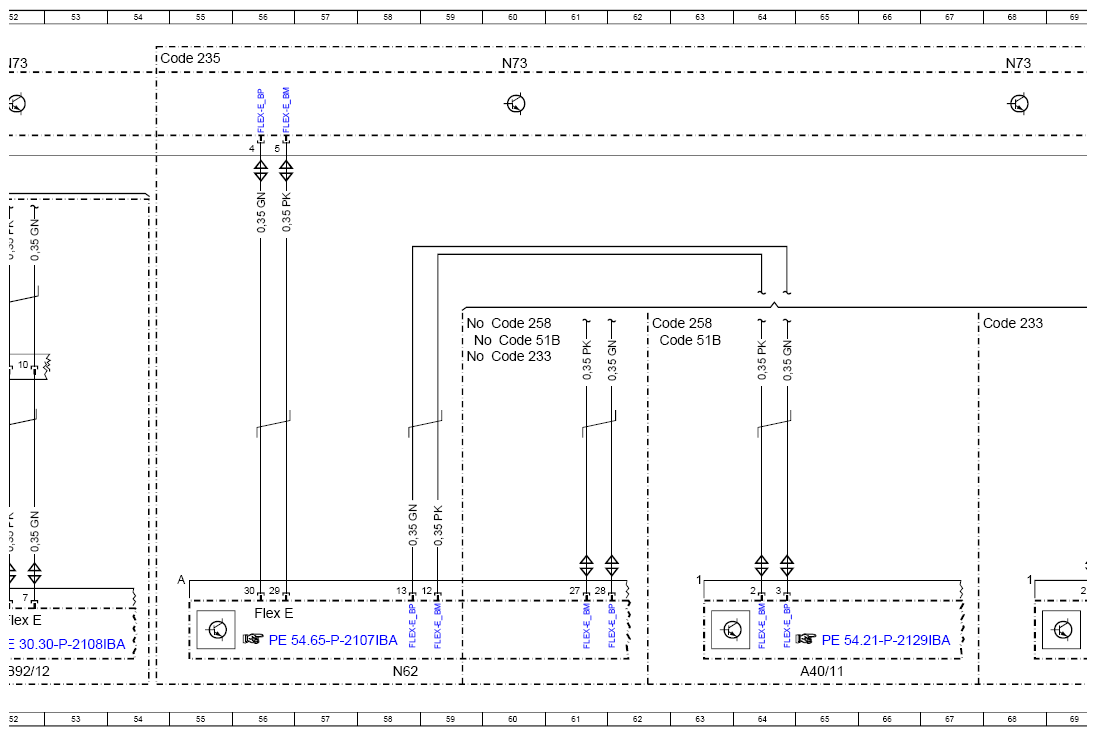

| N62 | Parking system control unit | 58L |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 85L |
| N68 | Electrical power steering control unit | 12L |
| N68 | Electrical power steering control unit | 23L |
| N73 | Electronic ignition switch control unit | 4A |
| N73 | Electronic ignition switch control unit | 12A |
| N73 | Electronic ignition switch control unit | 20A |
| N73 | Electronic ignition switch control unit | 28A |
| N73 | Electronic ignition switch control unit | 36A |
| N73 | Electronic ignition switch control unit | 44A |
| N73 | Electronic ignition switch control unit | 52A |
| N73 | Electronic ignition switch control unit | 60A |
| N73 | Electronic ignition switch control unit | 68A |
| N73 | Electronic ignition switch control unit | 76A |
| N73 | Electronic ignition switch control unit | 84A |
| N73 | Electronic ignition switch control unit | 92A |
| N73 | Electronic ignition switch control unit | 100A |
| N73 | Electronic ignition switch control unit | 108A |
| N73 | Electronic ignition switch control unit | 116A |
| N73 | Electronic ignition switch control unit | 124A |
| N73 | Electronic ignition switch control unit | 132A |
| N73 | Electronic ignition switch control unit | 139A |

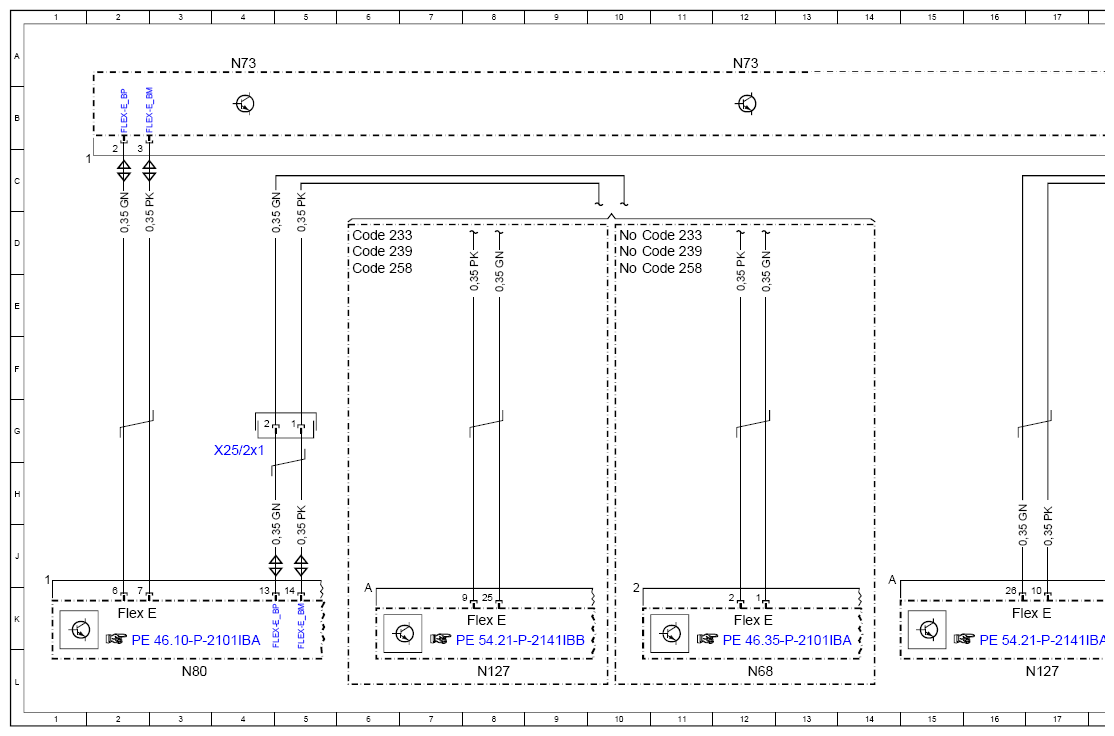

| N80 | Steering column module control unit | 3L |
| X25/13x1 | Left engine compartment/vehicle interior electrical connector | 29F |
| X25/13x1 | Left engine compartment/vehicle interior electrical connector | 39H |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 27F |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 39F |
| X25/2x1 | Engine compartment/vehicle interior electrical connector | 4G |
| X26/38x1 | Front bumper electrical connector | 47F |
| X26/38x1 | Front bumper electrical connector | 43F |
| X26/38x1 | Front bumper electrical connector | 51F |
| X285/1x1 | Left trunk electrical connector | 91G |
| X285/1x1 | Left trunk electrical connector | 99G |
| X285/1x1 | Left trunk electrical connector | 118G |
| X285/1x1 | Left trunk electrical connector | 140F |
