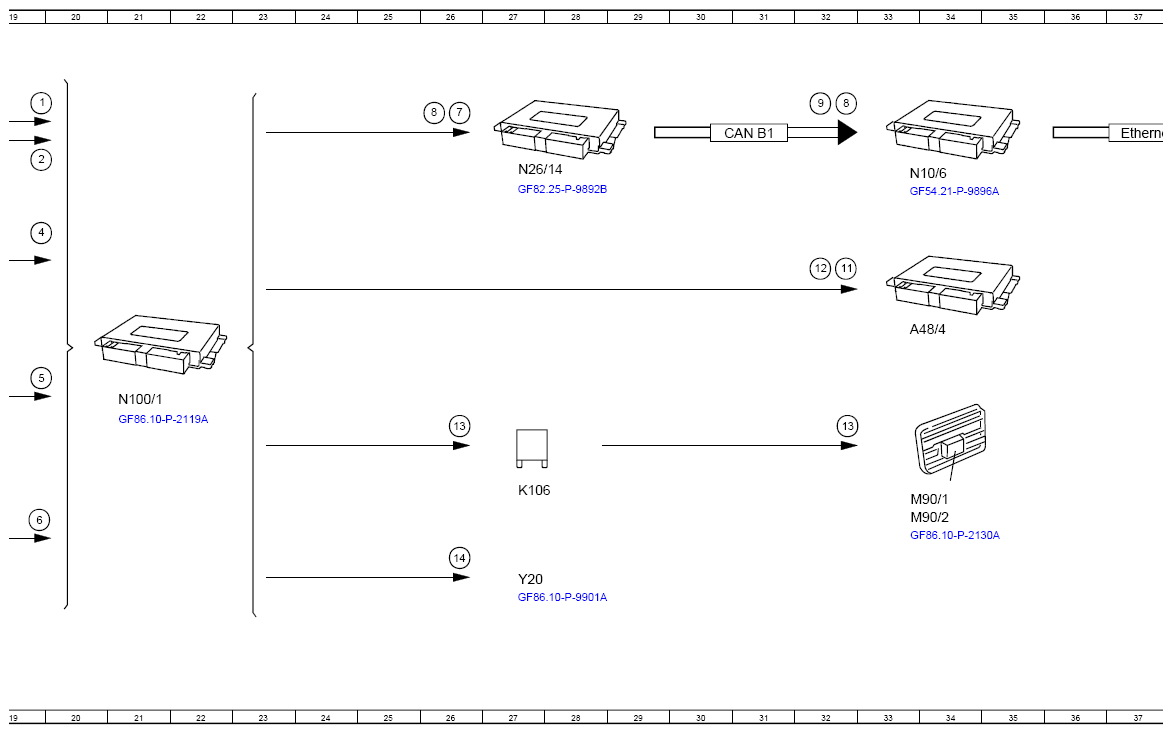

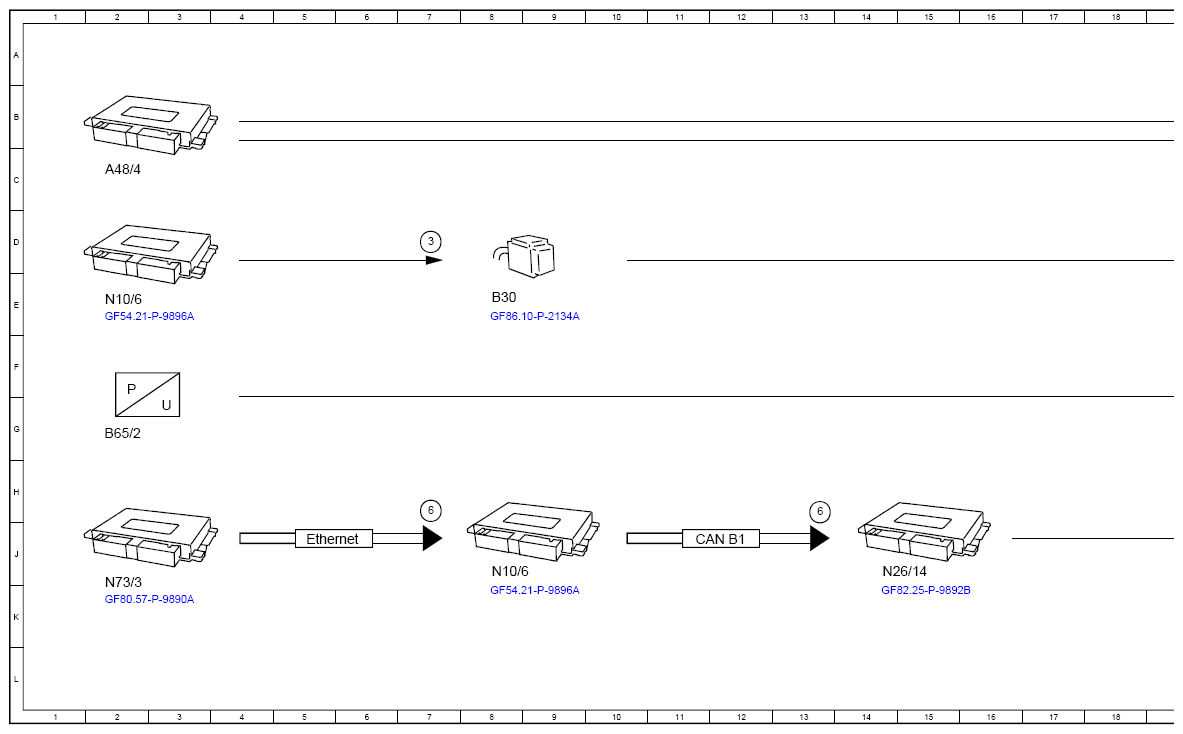

(Function Schematic For Emergency Fresh-Air System - PE86.10-P-2501-97A)
Model 223 with code Z25 (Emergency fresh-air system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Emergency fresh-air system/fire extinguishing system activation button, status | 19B |
| 10 | Image data, signal | 45B |
| 11 | Warning buzzer, actuation | 32E |
| 12 | Light-emitting diode actuation | 32E |
| 13 | Vent flap actuator motor, actuation | 26G |
| 13 | Vent flap actuator motor, actuation | 32G |
| 14 | Emergency fresh-air system compressed air reservoir solenoid valve, actuation | 26J |
| 2 | Emergency fresh-air system button, status | 19C |
| 3 | Washer fluid pump, actuation | 7D |
| 4 | Irritant gas sensor, signal | 19D |
| 5 | Pressure sensor, signal | 19F |
| 6 | Circuit 15, status | 14H |
| 6 | Circuit 15, status | 17H |
| 6 | Circuit 15, status | 20H |
| 7 | Instrument cluster warning message, request | 26B |
| 8 | Switch on recirculated air mode, request | 26B |
| 8 | Switch on recirculated air mode, request | 32B |
| 9 | Instrument cluster message, request | 32B |
| 9 | Instrument cluster message, request | 39B |
| A40/18 | Instrument cluster display | 46C |
| A48/4 | Special protection operating unit | 2C |
| A48/4 | Special protection operating unit | 33F |
| B30 | Irritant gas sensor | 8E |
| B65/2 | Emergency fresh-air system pressure sensor | 2G |
| CAN B1 | CAN 1 for vehicle interior | 11J |
| CAN B1 | CAN 1 for vehicle interior | 31B |
| Ethernet | Ethernet | 5J |
| Ethernet | Ethernet | 37B |
| HSVL | High-speed video link | 43B |
| K106 | Vent flaps relay | 27H |
| M90/1 | Vent flap actuator motor | 33H |
| M90/2 | Vent flap actuator motor | 33J |
| N10/6 | Front signal acquisition and actuation module control unit | 8J |
| N10/6 | Front signal acquisition and actuation module control unit | 2E |
| N10/6 | Front signal acquisition and actuation module control unit | 33C |
| N100/1 | Fire extinguishing system and emergency fresh air system control unit | 21G |
| N133/1 | Instrument cluster control unit | 40C |
| N26/14 | Multifunction control unit | 14J |
| N26/14 | Multifunction control unit | 27C |
| N73/3 | Electronic ignition switch control unit | 2K |
| Y20 | Emergency fresh-air system compressed-air reservoir squib | 27K |
