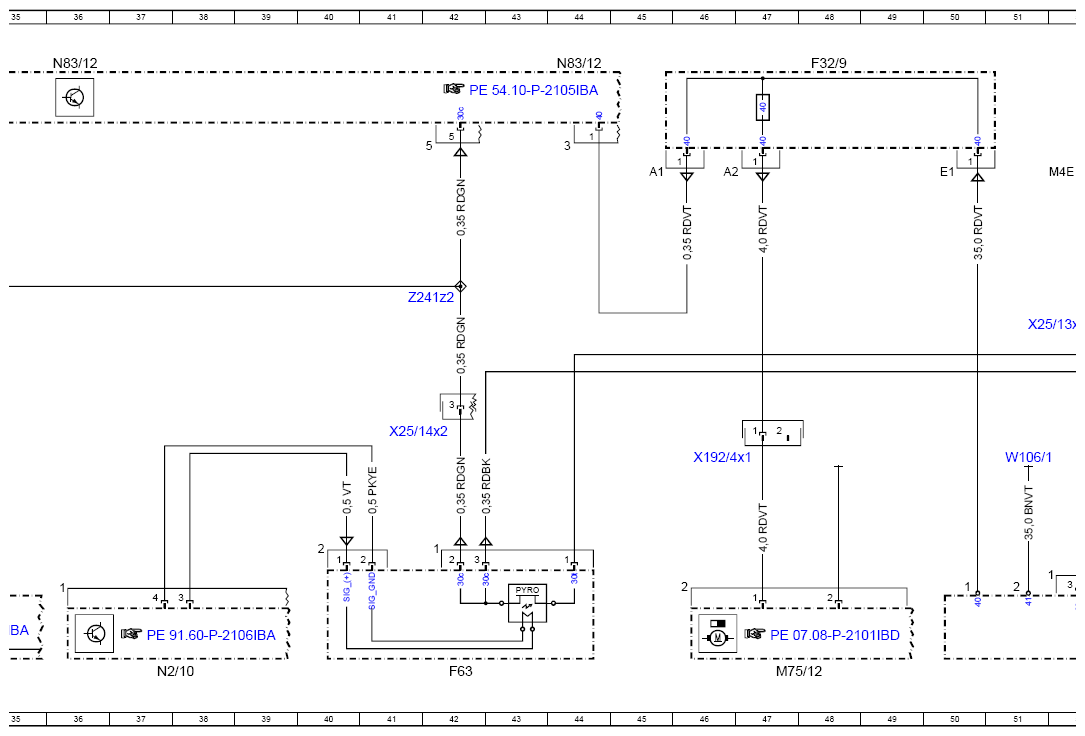

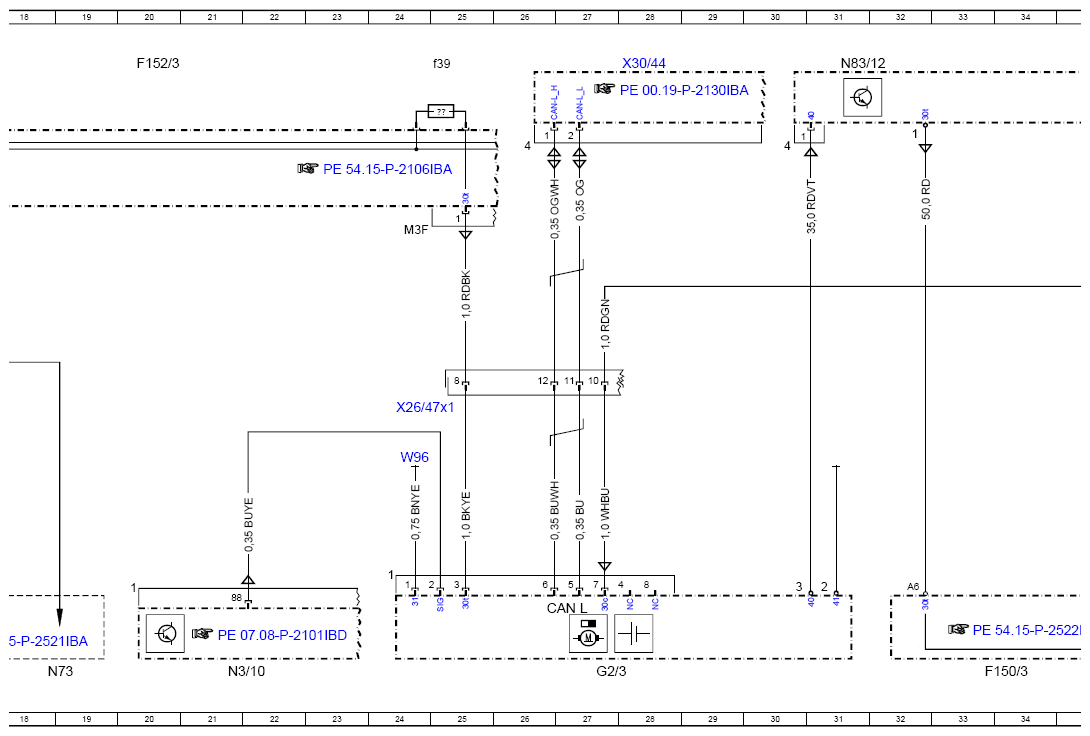

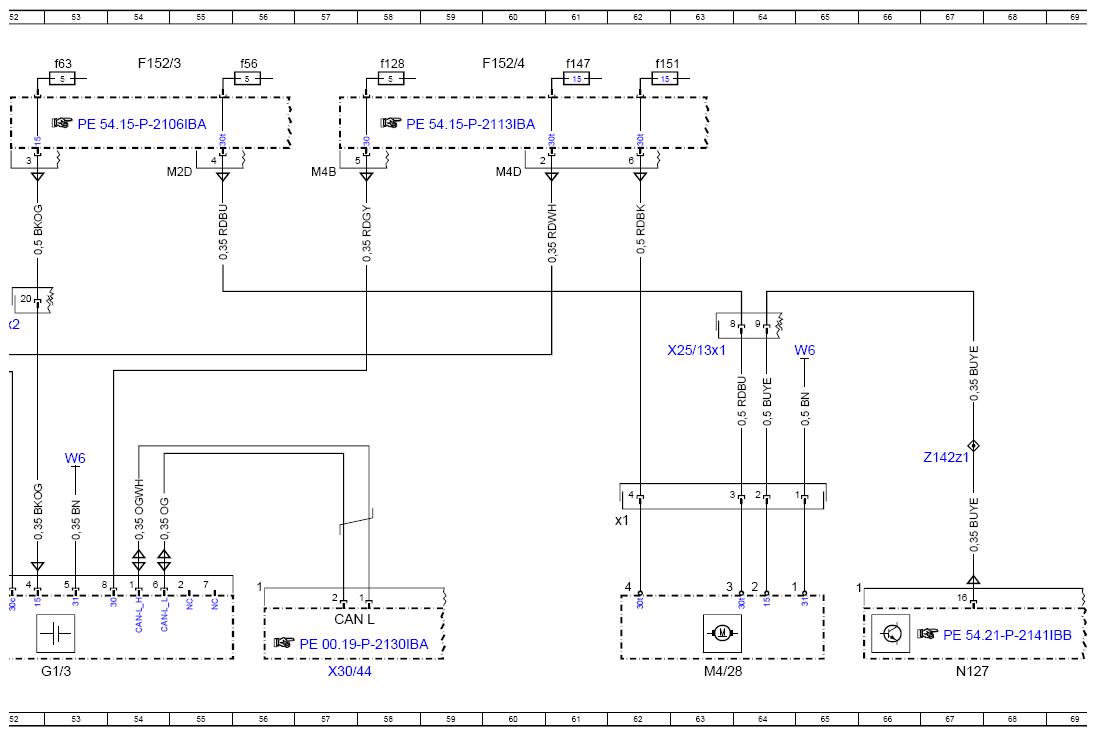

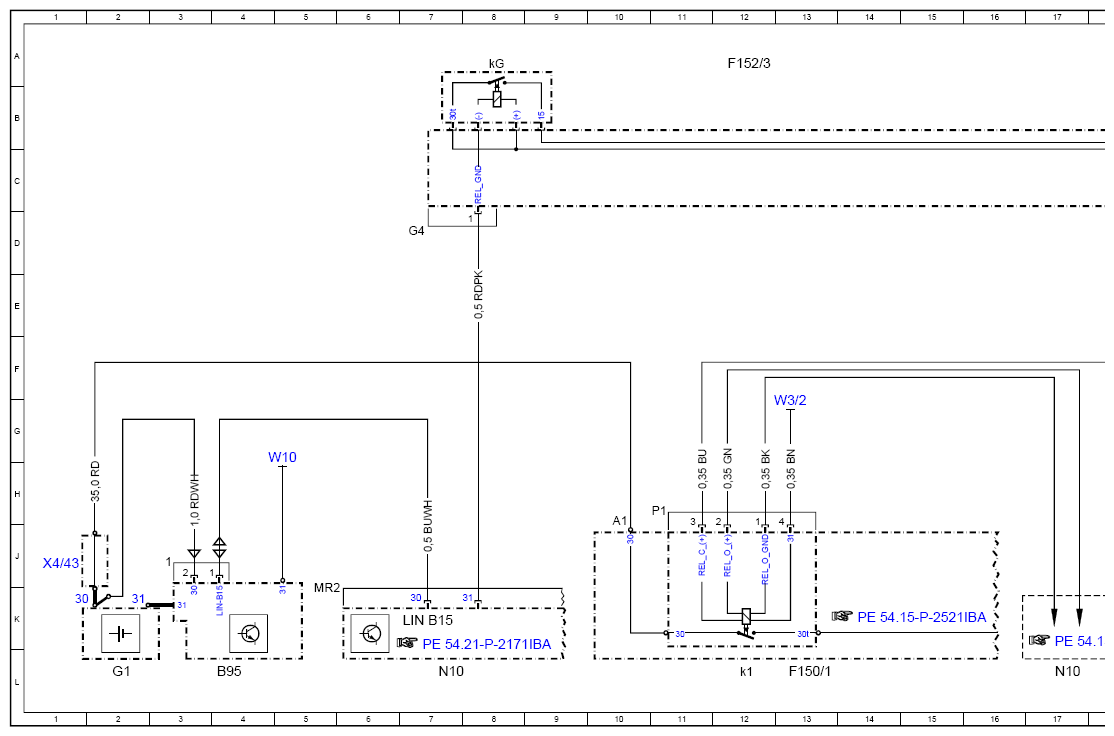

Wiring Diagram Of Starter, Alternator, Battery - PE15.00-P-2101-97IBB
Model 177
with code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| B95 | Battery sensor | 4L |
| CAN L | Hybrid CAN | 27K |
| CAN L | Hybrid CAN | 57K |
| F150/1 | Starter battery pre-fuse box | 13L |
| F150/1k1 | Battery disconnect switch relay | 12L |
| F150/3 | Engine compartment pre-fuse box | 34L |
| F152/3 | Engine compartment fuse and relay module | 12A |
| F152/3 | Engine compartment fuse and relay module | 20A |
| F152/3 | Engine compartment fuse and relay module | 54A |
| F152/3f39 | Fuse 39 | 25A |
| F152/3f56 | Fuse 56 | 56A |
| F152/3f63 | Fuse 63 | 53A |
| F152/3kG | Engine compartment terminal 15 relay | 8A |
| F152/4 | Vehicle interior fuse and relay module | 60A |
| F152/4f128 | Fuse 128 | 58A |
| F152/4f147 | Fuse 147 | 61A |
| F152/4f151 | Fuse 151 | 62A |
| F32/9 | 48 V on-board electrical system Engine compartment pre-fuse box | 48A |
| F63 | Pyrofuse | 42L |
| G1 | On-board electrical system battery | 2L |
| G1/3 | 48 V battery | 53L |
| G2/3 | Belt-driven starter alternator | 27L |
| LIN B15 | Battery sensor LIN | 7K |
| M4/28 | 12 V fan for 48 V battery | 63L |
| M4/28x1 | Electrical connector of 12 V fan for 48 V battery | 62J |
| M75/12 | Electric coolant pump | 47L |
| N10 | Central control module | 7L |
| N10 | Central control module | 17L |
| N127 | Drivetrain control unit | 67L |
| N2/10 | Supplemental restraint system control unit | 37L |
| N3/10 | ME-SFI [ME] control unit | 21L |
| N73 | Electronic ignition switch control unit | 19L |
| N83/12 | DC/DC converter (48 V) control unit | 31A |
| N83/12 | DC/DC converter (48 V) control unit | 36A |
| N83/12 | DC/DC converter (48 V) control unit | 44A |
| W10 | Ground point (starter battery) | 5H |
| W106/1 | 48 V battery ground point | 51H |
| W3/2 | Left front wheel arch ground point | 13G |
| W6 | Left wheel arch trunk ground point | 53H |
| W6 | Left wheel arch trunk ground point | 65F |
| W96 | Vehicle socket ground point | 24H |
| X192/4x1 | Electric coolant pump electrical connector | 46H |
| X25/13x1 | Left Engine compartment/vehicle interior electrical connector | 63F |
| X25/13x2 | Left Engine compartment/vehicle interior electrical connector | 52E |
| X25/14x2 | Right Engine compartment/vehicle interior electrical connector | 41G |
| X26/47x1 | Engine wiring harness/ Engine compartment electrical connector | 24G |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 28A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 57L |
| X4/43 | Jump-start connection point | 1J |
| Z142z1 | LIN C3 connector sleeve | 67G |
| Z241z2 | Circuit 30c connector sleeve | 42E |
