Remove/Install Partial Load Crankcase Ventilation System Valve - AR01.20-P-0040MFD
Engine 260 in model 118, 177, 247
with code 460 (Canada version)
with code 494 (US version)
with code 835 (South Korea version)
with code 945 (China Stage 6 exhaust treatment)

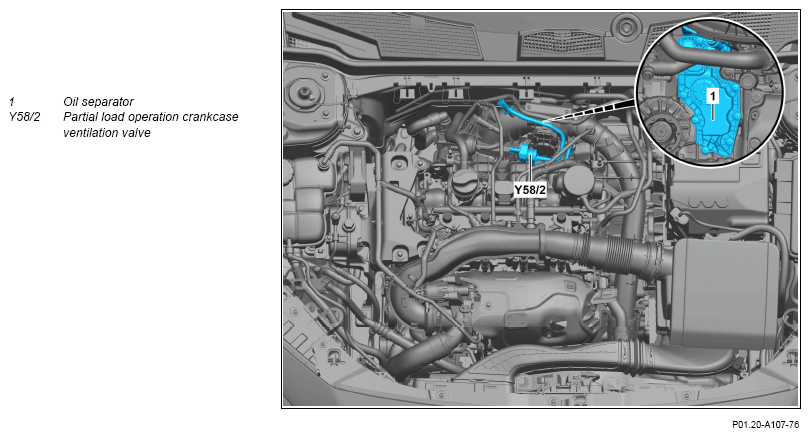

Shown on model 177 with engine 260 without code M016 (performance-enhanced engine)
| Picture no., etc. | Work notes | ||
|---|---|---|---|
| 1 | The partial-load operation crankcase ventilation valve (Y58/2) and the oil separator (1) form a single unit. The removal/installation is described in the document "Removal/Installation of Oil Separator". | ||
| AR01.20-P-9750MFD |
