Routing Diagram For Poly-V Belt - AR13.22-P-3902-02NKB

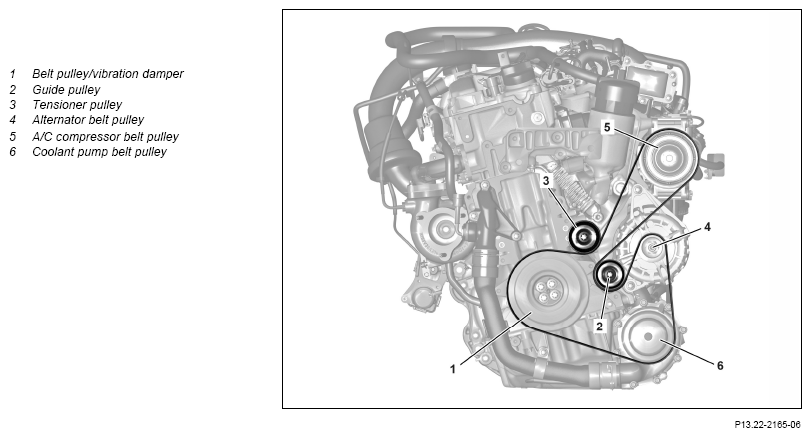

Engine 260 in model 118, 177, 247

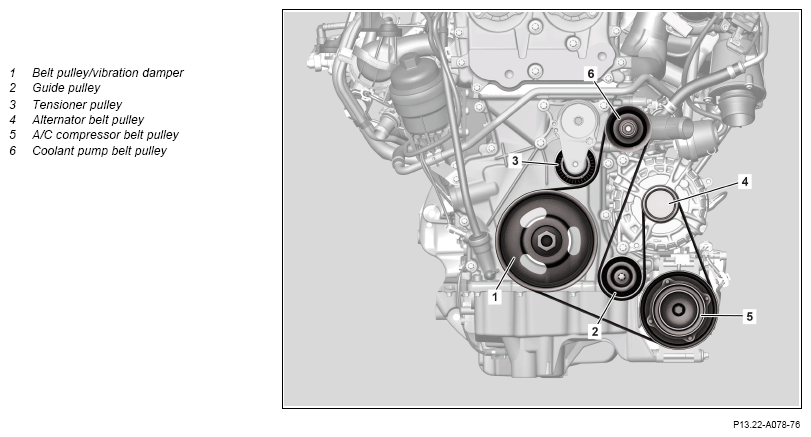

Engine 270 in model 242

Engine 270, 651 in model 117, 156, 176, 246

Engine 651.9

Courtesy of MERCEDES-BENZ USA

Engine 270.9 and engine 260

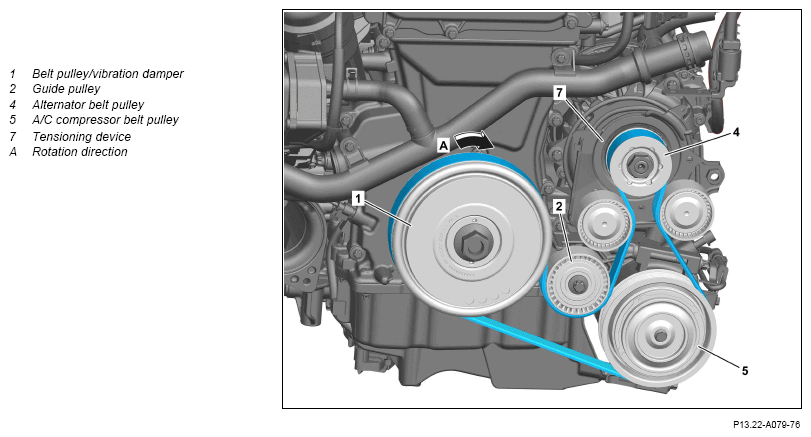

Fig 1: Drive Belt Routing - Engine 260 In Model 177 Without Code B01

Courtesy of MERCEDES-BENZ USA

Engine 260 with code B01 (48V technology)

Fig 2: Drive Belt Routing - Engine 260 In Model 177 With Code B01

Courtesy of MERCEDES-BENZ USA
