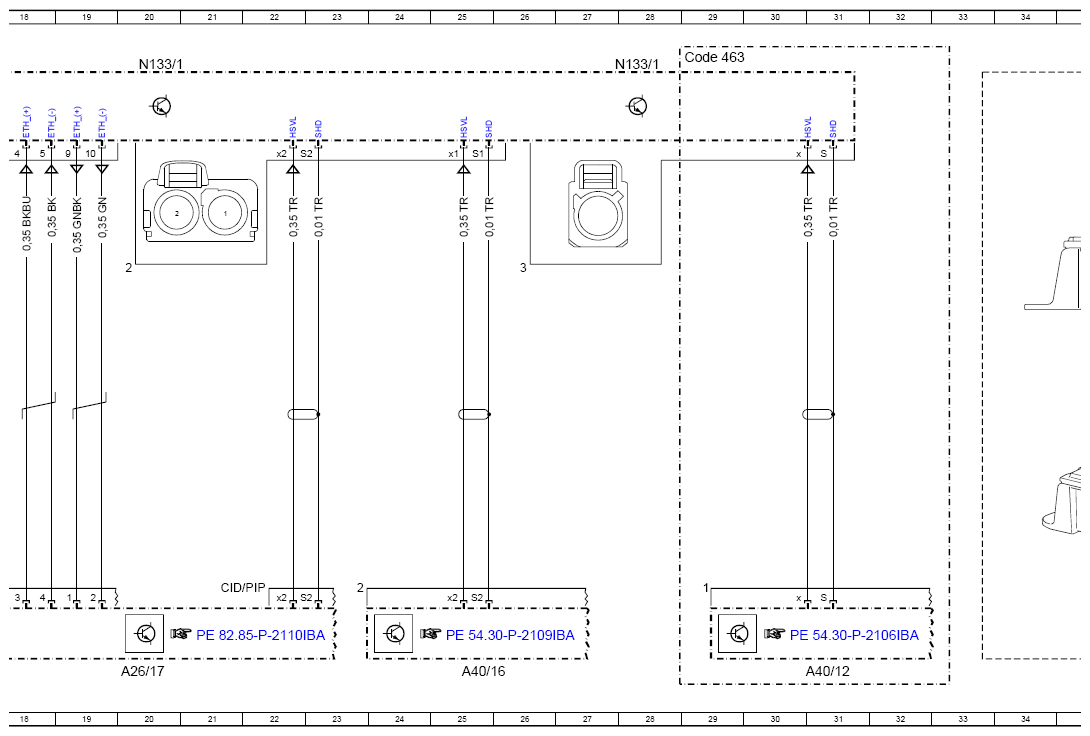

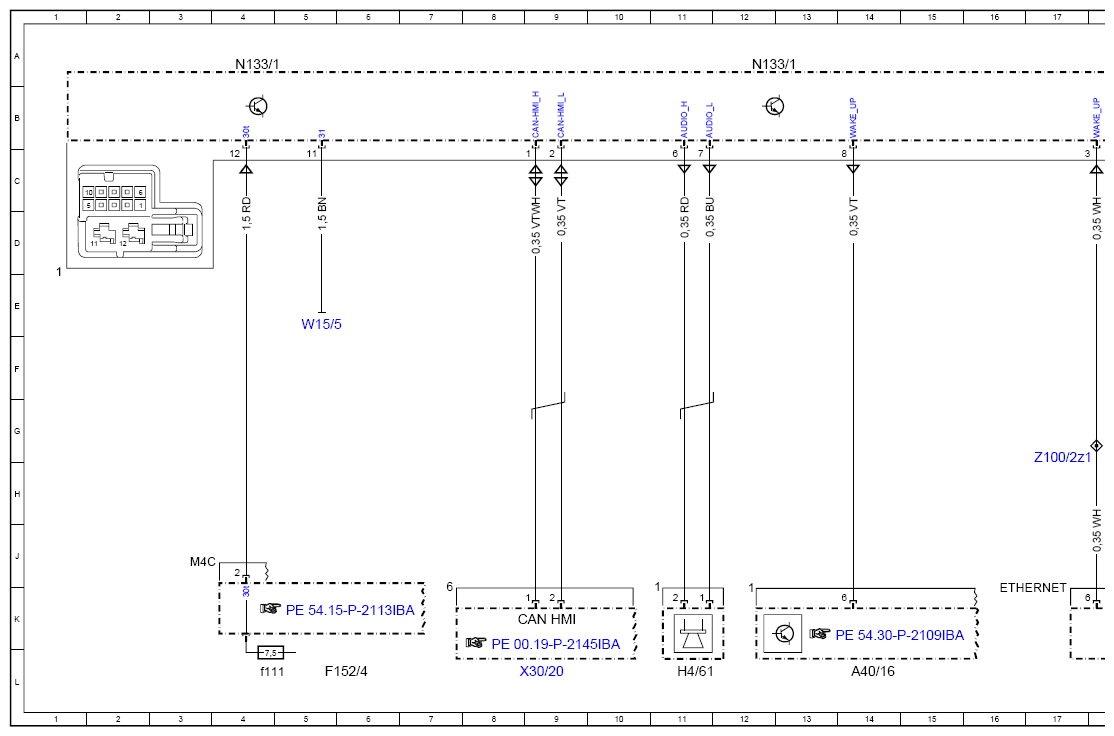

Wiring Diagram For Instrument Cluster Control Unit - PE54.30-P-2110-97IBA
Model 177
with code 547 (Connect 20 Entry (NTG6))
Control unit N133/1
Model 177
with code 548 (Connect 20 MID (NTG6))
Control unit N133/1
Model 177
with code 549 (Connect 20 HIGH (NTG6))
Control unit N133/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A26/17 | Head unit | 20L |
| A40/12 | Head-up display | 31L |
| A40/16 | Head unit/instrument cluster display cluster | 25L |
| A40/16 | Head unit/instrument cluster display cluster | 14L |
| CAN HMI | User interface CAN | 9K |
| Code 463 | Head-up display | 29A |
| F152/4 | Vehicle interior fuse and relay module | 5L |
| F152/4f111 | Fuse 111 | 4L |
| H4/61 | Instrument cluster speaker | 11L |

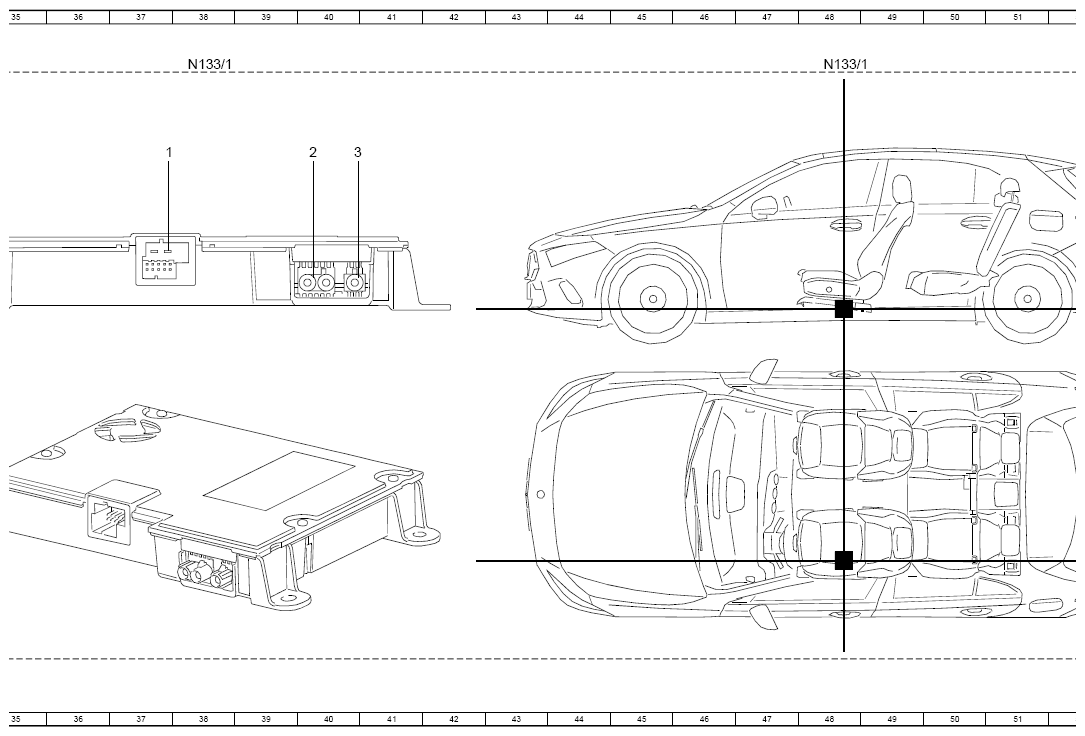

| N133/1 | Instrument cluster control unit | 4A |
| N133/1 | Instrument cluster control unit | 12A |
| N133/1 | Instrument cluster control unit | 20A |
| N133/1 | Instrument cluster control unit | 28A |
| N133/1 | Instrument cluster control unit | 38A |
| N133/1 | Instrument cluster control unit | 48A |
| W15/5 | Left front footwell ground point | 5E |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 9L |
| Z100/2z1 | Wake-up signal connector sleeve | 17G |
